Phenolic Pre-insulated Ductwork System

Thanks to its excellent products and quality services, UNT Duct is one of the leading phenolic pre-insulated ductwork system manufacturers and suppliers in China. Welcome to buy the high quality and customized products from our factory. We will offer you the best service and fast delivery.

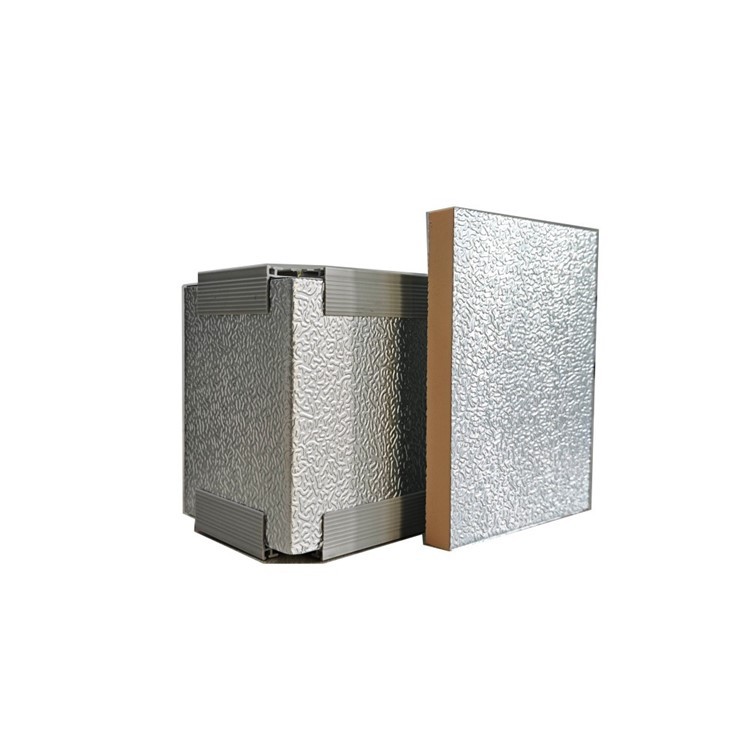

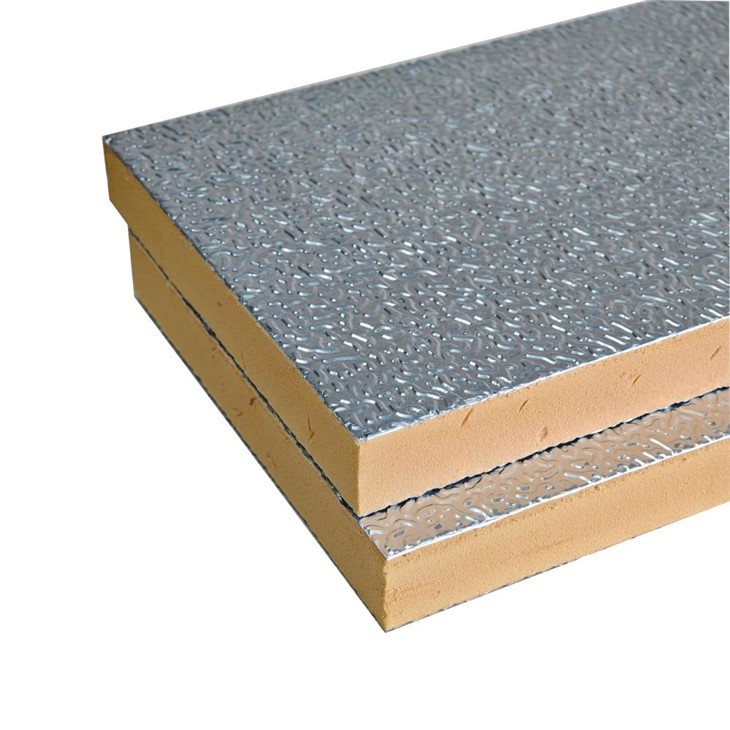

Phenolic Pre-insulated Ductwork System is a modern, energy-efficient alternative to traditional sheet metal ducts. It consists of a rigid phenolic foam core bonded between two layers of aluminum foil, creating a complete air duct that is both the structural airway and the thermal insulation in one product.



Core Material: Rigid thermoset phenolic foam
Facer Material: Aluminum foil (often reinforced with fiberglass)
Standard Thickness: 20 mm, 30 mm
Thermal Conductivity: 0.025 W/m·K
Closed Cell Content: > 90%
Compressive Strength: > 200 kPa (0.2 N/mm²)
Water Vapor Transmission: Zero (acts as a perfect vapor barrier)
Max Air Velocity: Up to 15 m/s
Max Operating Temp: Up to 80°C
Fire Rating: BS 476 Part 6/7 Class 0, ASTM E-84 Class A

Energy Efficiency & Thermal Performance:

With a thermal conductivity as low as 0.025 W/m·K, it offers excellent insulation (high R-value) with a thinner profile. Its closed-cell structure and sealed joints significantly reduce air leakage (up to 79% less than traditional systems), lowering energy costs.

Fire Safety & Indoor Air Quality:

The phenolic core is inherently flame-retardant, produces very low smoke, and is non-fibrous, meaning it won't release fibers into the airstream. Top systems are BS 476 Part 6&7 classified as Class 0 Air Ducts.

Lightweight & Fast Installation:

Weighing up to 72% less than insulated sheet metal, it is easier to handle and requires less structural support. It combines duct and insulation into one step, and sections up to 4 meters long reduce on-site assembly time.

Moisture & Mold Resistance:

The closed-cell foam core and aluminum facers make it waterproof and resistant to fungal and mold growth, ensuring long-term durability.

Environmental Sustainability:

The foam is often blown with CFC/HCFC-free agents, resulting in zero Ozone Depletion Potential (ODP) and a low Global Warming Potential (GWP). Its low thermal conductivity contributes to lower operational carbon for buildings.



The UNTDuct Phenolic System stands apart as the most advanced and innovative pre-insulated air distribution ductwork solution worldwide. Proven for its ease of installation and maintenance, it represents a breakthrough in air distribution technology.

More than just pre-insulated aluminum panels, the UNTDuct Phenolic System is a comprehensive solution - complete with precision-engineered accessories, specialized machinery, purpose-built tools, and expert know-how - ensuring flawless construction and installation.



Phenolic Panels:

High-performance sandwich panels featuring rigid polyurethane (PU) or polyisocyanurate (PIR) insulation, fully clad with durable aluminum foil or aluminum sheets for superior duct construction.



Accessories:

Flanges, section bars, and specialized fittings designed for seamless duct joining and installation.



Equipment:

State-of-the-art bending machines, manual cuting tools and CNC Router Machine, enabling professional fabrication and installation-whether in a fully equipped workshop or directly on-site.



Know-How:

We provide unparalleled technical and commercial support to consultants and contractors, guaranteeing optimal system performance.
