The Future of Air Distribution: Introducing Phenolic Pre-insulated HVAC Panels

Headline: Deliver Superior Air Quality and Slash Energy Costs-Without the Heavy Lifting

The Problem:
Traditional sheet metal ductwork is heavy, labor-intensive to install, and prone to thermal loss. Over time, it can also become a breeding ground for mold and bacteria, compromising indoor air quality.

The Solution:

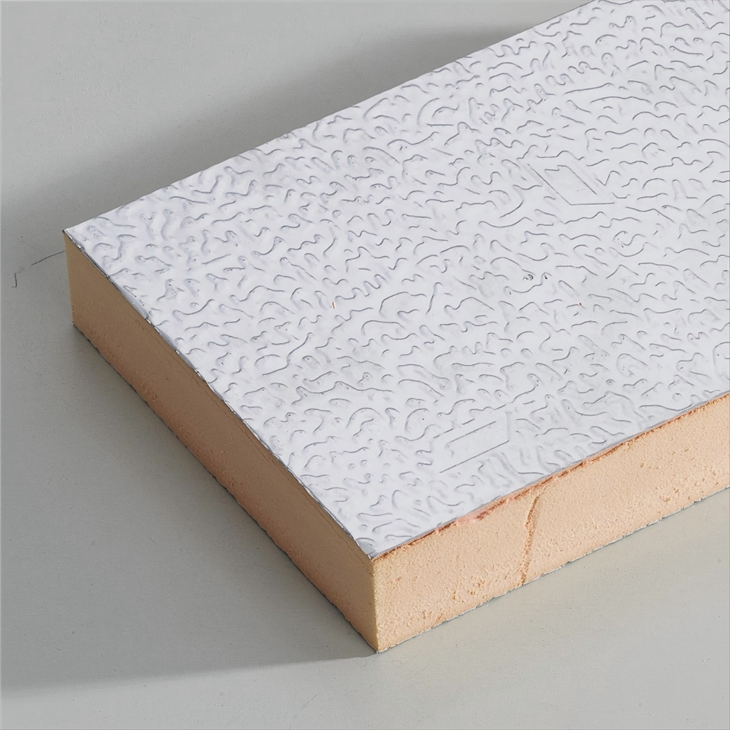

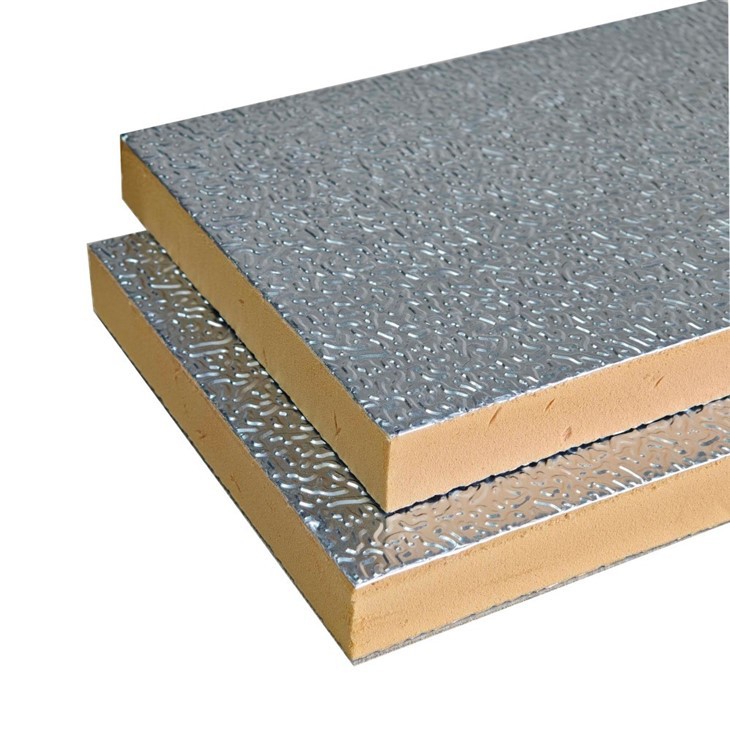

Our Phenolic Pre-insulated HVAC Panels are a next-generation alternative. These rigid, lightweight composite panels feature a closed-cell phenolic foam core sandwiched between two layers of reinforced aluminum (or coated metal).

Structure: Silver Aluminum/ Phenolic Foam/ Silver Aluminum
Size: 3950*1200*20mm
Foam Density: 50kg/m3
Aluminum Thickness: 0.06mm
Packing: 10 sheets/ package
Loading Capacity: 660 sheets/ 40'HQ (packed with cardboard box)

Thermal Conductivity: 0.025w/m.k

Fire Safety: Class 0 (BS 476 Part 6&7)

Why Switch to Phenolic Duct Panels?

1. Ultimate Energy Efficiency
Unlike metal ducts that require external wrapping, our panels have a built-in insulation layer with exceptionally low thermal conductivity. This minimizes air leakage and thermal bridging, reducing HVAC energy consumption by up to 20-30%.

2. Breathe Cleaner Air
Phenolic foam is inherently resistant to moisture and microbial growth. It does not provide a food source for mold, mildew, or bacteria. Additionally, the smooth inner surface prevents dust accumulation, ensuring healthier indoor air quality-critical for hospitals, schools, and office buildings.

3. Significant Cost & Labor Savings

Lightweight: One person can carry what used to require a team.

Fast Assembly: Cut, groove, and fold on-site with simple hand tools. No heavy machinery, no external insulation wrapping.

Lower Freight Costs: Up to 80% lighter than steel ducts.

4. Fire Safety First
Phenolic materials are inherently fire-resistant. They meet stringent global standards (e.g., ASTM E84, BS 476 Part 6&7) with low smoke emission and zero flame spread. In a fire, they do not produce dripping or flaming particles.

5. Quiet & Durable
The dense foam core acts as a natural sound attenuator, reducing vibration and "duct rumble." The aluminum facings resist corrosion and are chemically inert, lasting the life of the building.
