Thanks to its excellent products and quality services, UNT Duct is one of the leading pre-insulated hvac pu duct manufacturers and suppliers in China. Welcome to buy the high quality and customized products from our factory. We will offer you the best service and fast delivery.

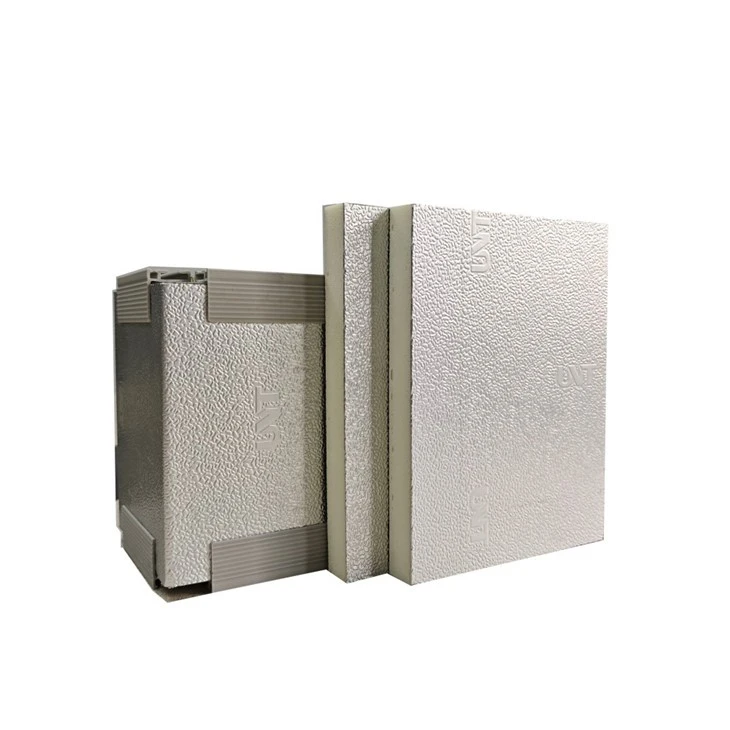

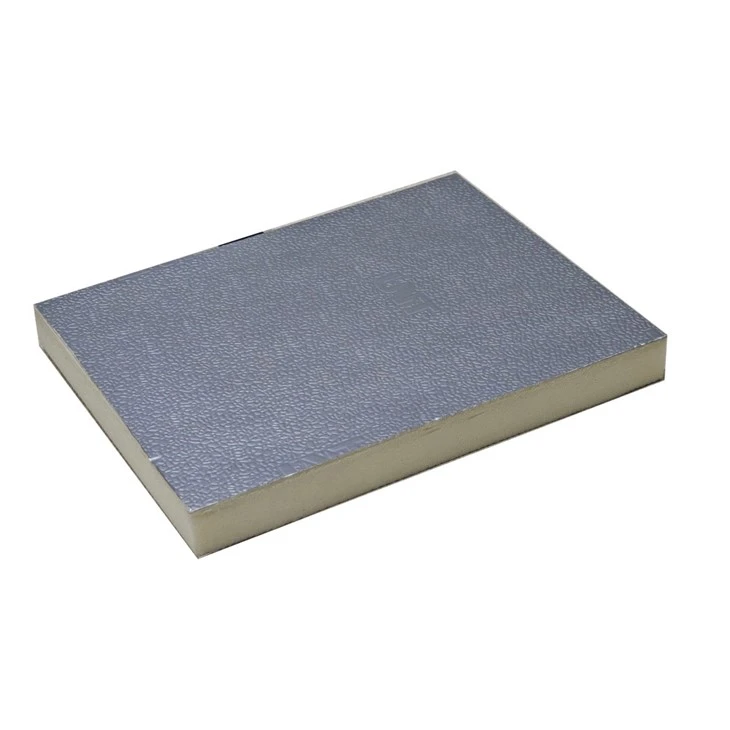

Pre-insulated HVAC Polyurethane (PU) Duct

Pre-insulated HVAC PU Duct is an all-in-one air distribution system made of rigid Polyurethane (PU) foam sandwiched between two layers of aluminum foil. Unlike traditional metal ducts that require wrapping with fiberglass on-site, this is a complete composite panel manufactured in a factory.

Its growing popularity stems from solving the major pain points of traditional systems (which are heavy, prone to leaks, and labor-intensive to insulate). Here is the breakdown of why it is chosen:

The Core Structure

Think of it like a high-tech sandwich:

The Core: Rigid Polyurethane (PU) foam, which provides excellent thermal insulation .

The Skins: Aluminum foil on both sides, which acts as a vapor barrier and protects the foam .

The Joints: Special flange systems and sealants used during assembly to ensure airtightness

Why People choose Pre-insulated HVAC Polyurethane (PU) Duct

Builders and engineers switch to this system because it offers quantifiable benefits over traditional sheet metal:

Energy Efficiency (Lower Bills):

PU foam has a very low thermal conductivity (approx. 0.020 W/m·k) . This keeps the cold air in and the hot air out much better than traditional materials, significantly reducing energy loss.

No Condensation (Mold Prevention):

Because the insulation is built-in and the aluminum foil acts as a vapor barrier, the outer surface stays at room temperature. This prevents the "sweating" (condensation) common on metal ducts, which often leads to mold growth and water damage.

Super Quiet Operation:

The dense foam core naturally absorbs the rumbling and whooshing sounds of air moving through the system, making it much quieter than hollow metal ducts.

Space Saving:

These ducts are lighter (up to 85% lighter than metal equivalents) and have a slim profile. They can often be installed flush against ceilings or in tight chases where heavy metal ducts would be difficult to fit.

Lower Installed Cost: This is a major driver for contractors. One crew can cut, fold, glue, and install these ducts. With metal, you need one crew to install the duct, and a second crew to come back and wrap the insulation. This saves significant labor time (up to 3x faster) and project coordination costs.

Airtightness: When properly sealed, these systems are extremely airtight (achieving Class C or D ratings). Traditional metal ducts often leak up to 25% of their air at the joints, wasting energy. Pre-insulated ducts maintain pressure better, ensuring air reaches the room.

Clean and Safe:

No Fibers: Unlike fiberglass insulation, there is no risk of airborne glass fibers entering the breathing zone or irritating the skin during installation.

Corrosion Resistance: The aluminum face protects the metal from rust, making it last longer than galvanized steel in humid environments.
