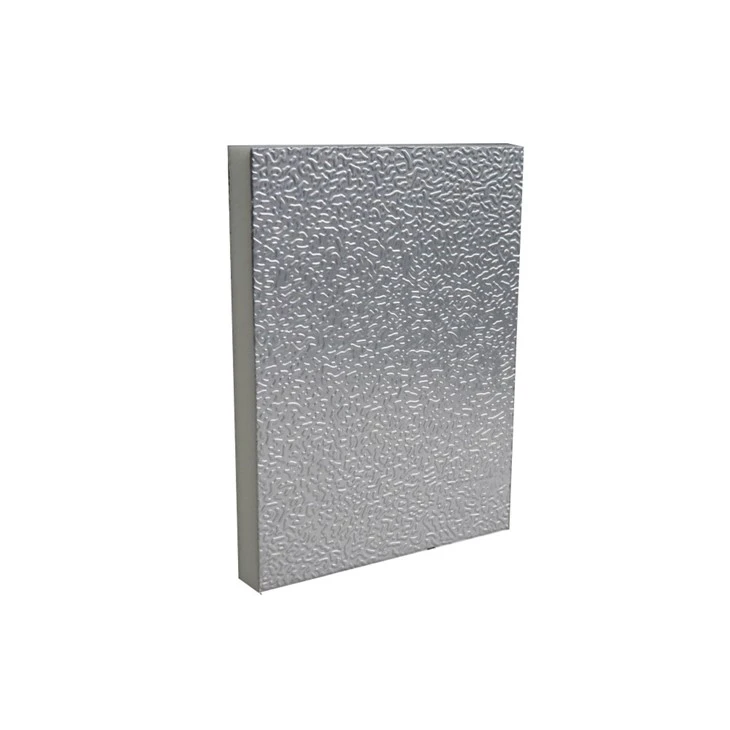

Polyurethane (PU) Foam Pre-insulated Duct Panels consist of Polyurethane (PU) insulation foam and aluminum foil or aluminum sheet on both sides. It is energy saving and environment-friendly, and widely used for HVAC duct system.

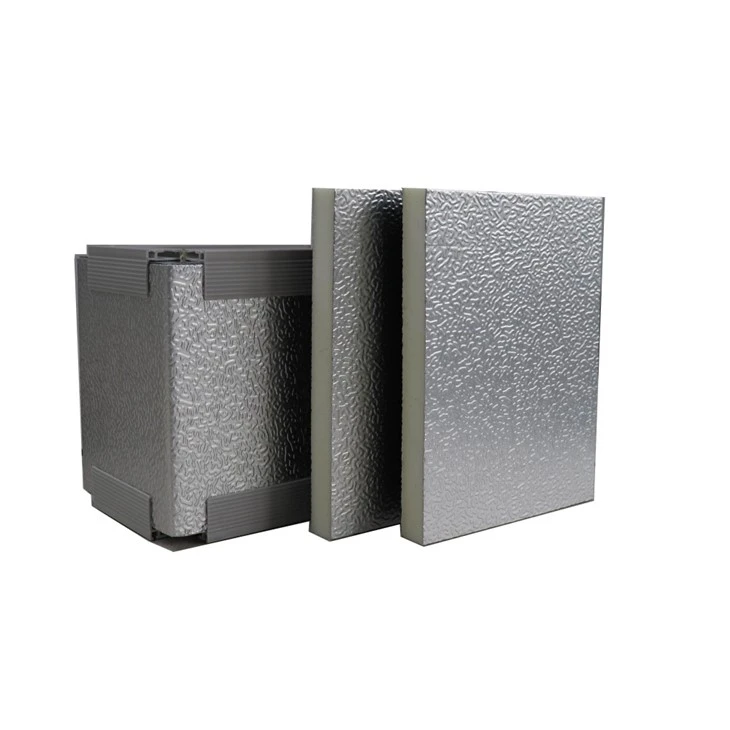

PU Foam Pre-Insulated Duct Panels are integrated, high-performance materials designed for HVAC and central air conditioning systems. They combine thermal insulation, air distribution, and structural protection in a single, efficient solution, becoming a mainstream choice for modern building projects.

Core Structure & Key Specifications

Structure: Adopts a sandwich design-closed-cell polyurethane (PU) foam as the core (thickness: 10–40mm) and protective facings (aluminum foil, aluminum sheets, or pre-painted GI sheets) bonded to both sides.

Key Metrics: Thermal conductivity of 0.020 W/m·K, foam density of 50 kg/m³, water absorption ≤0.1%, and working temperature range of -60℃ to +80℃ (continuous operation ≤70℃). It meets airtightness standards (leakage <2%) and fire ratings like Class B (EN 13501-1) or Class 0 (BS 476).





PU Foam Pre-Insulated Duct Panels :

length can be customized,

width is fixed in 1200mm,

thickness is available from 20mm to 40mm,



Usually it will be cut and packed as below details:

01 / 40'HQ Container:

3950*1200*20mm, 10 sheets per carton, total is 3128.4㎡ (660sheet)

2900*1200*20mm, 10 sheets per carton, total is 3062.4㎡ (880sheets)



02 / 20'GP Container:

3950*1200*20mm,10 sheets per carton, total is 948㎡ (200sheets) 2900*1200*20mm, 10 sheets per carton, total is 1392㎡ (400sheets)



(1) Can you send samples of Pre-insulated duct panels?
Yes, free small sample pieces can be sent out. You just need to pay the express fee.
A.You can provide your courier account, like DHL or FEDEX or TNT.
B.You can call your courier to pick up at our office.
C. You can pay us the express charge by T/T or by PAYPAL etc..

(2) How many sheets can put in one 40ft container?
40ft container usually can load 660 sheets of size 3950*1200*20mm, or 880 sheets of size 2950*1200*20mm.

(3) What is your delivery date, and from which sea port?
For one 40ft container, we can usually delivery it within one week after receiving the deposit.
We usually ship it from Xiamen Port, China, which is in Fujian Province.
