Thanks to its excellent products and quality services, UNT Duct is one of the leading pu insulated duct panel manufacturers and suppliers in China. Welcome to buy the high quality and customized products from our factory. We will offer you the best service and fast delivery.

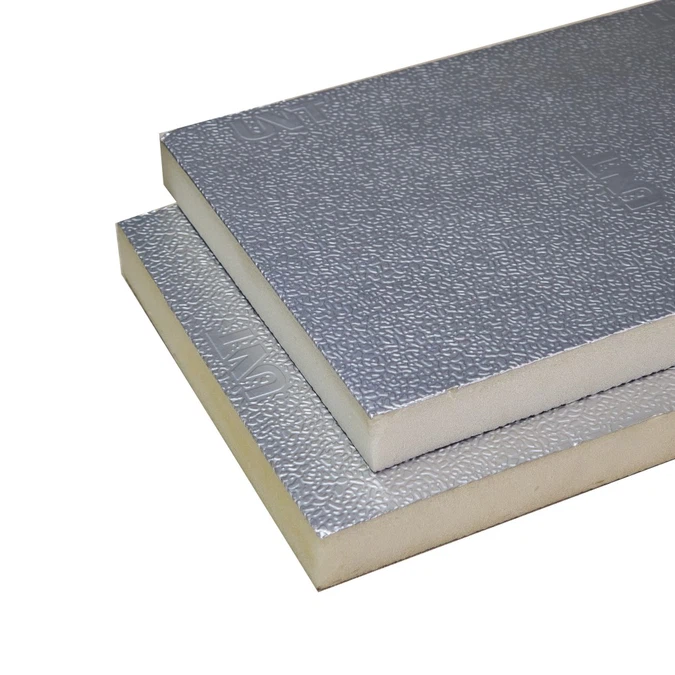

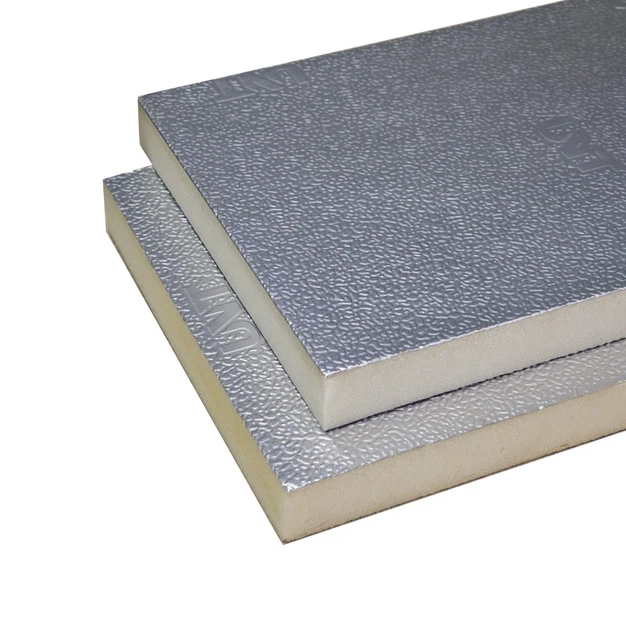

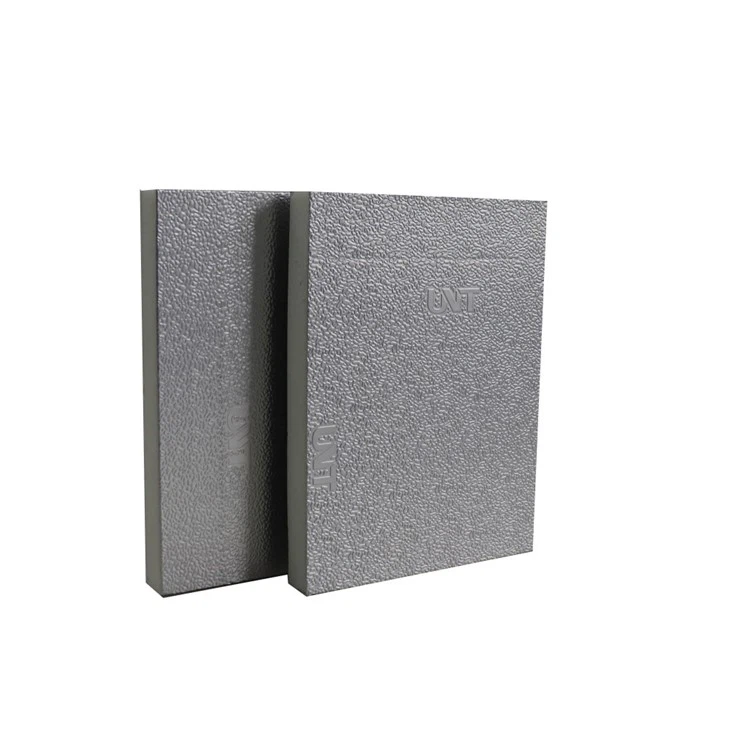

PU Insulated Duct Panel
PU Insulated Duct Panel features a sandwich structure of protective surface layer + core insulation layer. All layers work synergistically for insulation, protection and structural strength, with strict material selection and process control ensuring stable overall performance:
Core insulation layer: CFC/HCFC-free closed-cell PU foam (40-50kg/m³), eco-friendly. High closed-cell rate blocks heat transfer & water vapor penetration, with good sound/shock insulation. Thermal conductivity as low as 0.02-0.021W/(m·K), insulation efficiency far superior to traditional materials.
Double-sided protective layer: 80-200μm aluminum foil/sheet (embossed optional), with corrosion resistance, anti-aging and fire retardancy. Protects core foam from damage and erosion, boosts duct air tightness, reduces air leakage and improves HVAC energy efficiency. Smooth surface for easy maintenance, ideal for clean applications. Eco-friendly adhesives used, formaldehyde-free.
Core Advantages of PU Insulated Duct Panel
1. High efficiency & energy saving: Ultra-low thermal conductivity significantly reduces heating/cooling loss and improves system EER.
2. Integrated installation: Modular design enables fast on-site splicing, saving labor and construction time.
3. Moisture & corrosion resistance: Aluminum foil cladding blocks water vapor penetration, suitable for high-humidity environments (e.g., cold storage, food processing plants).
4. Eco-friendly & safe: CFC-free foaming technology, compliant with RoHS and REACH environmental standards.
5. Noise reduction: Foam core effectively absorbs airflow noise and lowers operational noise.
Products Description
|
Item |
Unit |
Specification |
|
Panel Structure |
|
Alu. / PU/ Alu. |
|
Panel Size |
mm |
3950*1200 |
|
Panel Thickness |
mm |
20 |
|
Aluminum /Steel Sheet Thickness |
mm |
0.15-0.2 |
|
Alu. Thickness |
micron |
60/ 80 |
|
Foam Density |
kg/m3 |
50 |
|
Thermal Conductivity |
W/m.K |
0.02 |
|
Water Absorption Rate |
% |
≤0.36 |
|
Maximum Running Temperature |
℃ |
80 |
|
Max Wind Speed |
m/s |
13-20 |
|
Compressing Strength |
kPa |
250 |
|
Life Span |
years |
>20 |
|
Air Leakage Rate |
% |
≤2 |
|
Closed Cell Rate |
% |
>95% |
Main Production Process of PIR Foam Pre-insulated Easy Duct
1. Raw Material Mixing
2. Aluminum Foil Embossing
3. PU/pIR Foam Injection
4. foaming & Laminating
5. Pre-insulated duct Cutting
6. duct panel Auto-stacking
7. Packing of Pre-insulated Duct
8. Stocking of pre-insulated duct
