Thanks to its excellent products and quality services, UNT Duct is one of the leading pir pre-insulated ducting foam panel manufacturers and suppliers in China. Welcome to buy the high quality and customized products from our factory. We will offer you the best service and fast delivery.

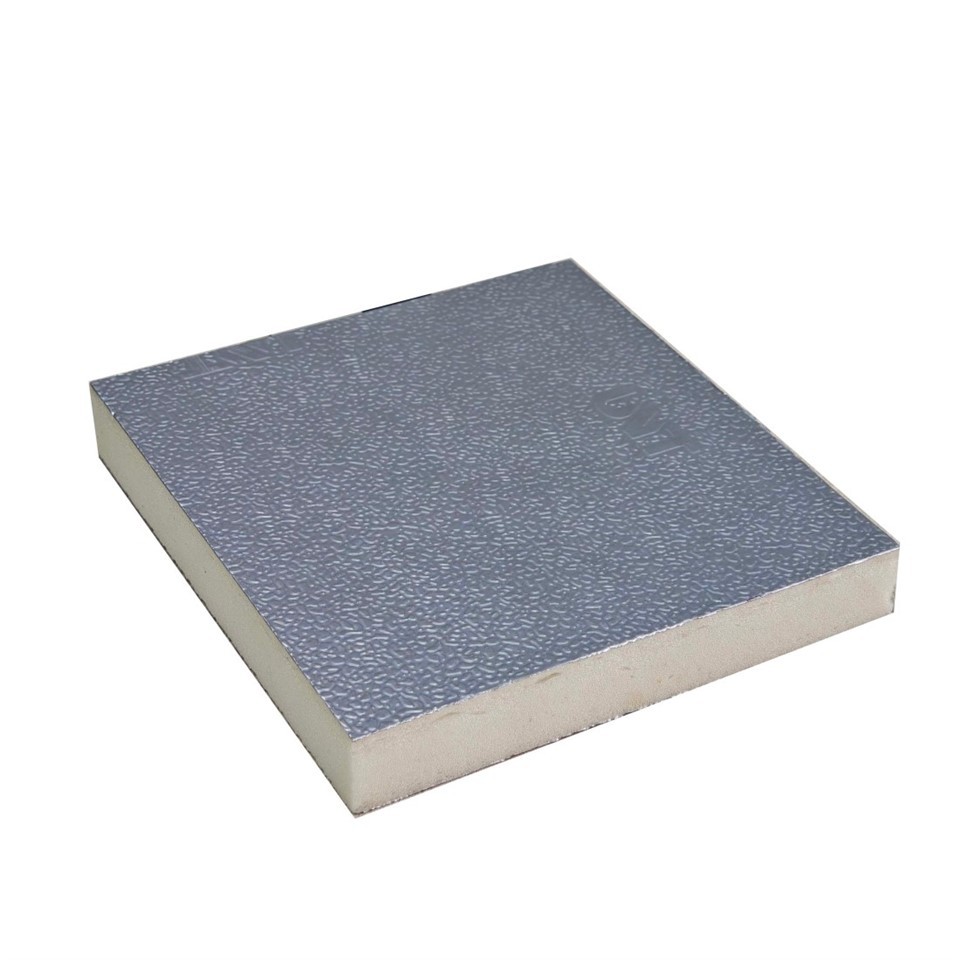

PIR Pre-insulated Ducting Foam Panel
PIR Pre-insulated Duct Foam Panel adopts polyisocyanurate foam core with double-sided protective layer. It features ultra-low thermal conductivity, high closed-cell rate, fire retardant, lightweight and easy installation, ideal for HVAC ventilation and air duct systems.
Structure: Silver Aluminum/ PIR Foam/ Silver Aluminum
Size: 3950*1200*20mm
Foam Density: 50-55kg/m3
Aluminum Thickness: 0.06mm or 0.08mm
Aluminum Color: Silver
Packing: 10 sheets/ package
Loading Capacity: 710 sheets/ 40'HQ (packed with plastic bags)
660 sheets/ 40'HQ (packed with cardboard box)
Core Performance of PIR Pre-insulated Ducting Foam Panel
1. Waterproof, Moisture-proof and Corrosion Resistance
The ultra-high closed-cell structure has its own waterproof and moisture-proof properties, with an extremely low absorption rate, preventing the failure of the insulation layer due to water absorption. It is resistant to acid and alkali, does not mold, does not breed bacteria, and the surface protective layer is resistant to corrosion and aging, not afraid of damp basements, underground pipe galleries, food factories, etc., with a service life of over 20 years, and basically requires no later maintenance.
2. Environmental and Health Attributes
The product does not contain harmful substances such as formaldehyde, Freon, benzene, etc., no dust shedding, no odor, the chemical properties of the material are stable, recyclable, and in line with green building environmental standards, suitable for places with high air cleanliness requirements such as hospitals, laboratories, clean rooms, etc.
PIR vs Phenolic Foam Air Duct Panels
|
Comparison Items |
Phenolic Foam Duct Panel |
PIR Foam Air Duct Panel |
PIR Advantage |
|
Thermal Conductivity (W/(m·K)) |
0.028–0.034 |
0.018–0.022 |
6–10% higher insulation efficiency |
|
Fire Rating |
Class B1 / Class 0 |
Class B1 / Class 0 |
Equal fire safety; more balanced overall performance |
|
Compressive Strength (kPa) |
150–200 |
250–300 |
Stronger toughness, not easy to crack |
|
Water Absorption Rate (%) |
3–6 |
<1.5 |
Better moisture resistance, no mold/insulation failure |
|
Service Life (Years) |
10–15 |
20-25 |
5–10 years longer, lower maintenance cost |
|
Construction Loss Rate |
Higher (brittle, easy to chip) |
Lower |
30–50% reduction in material waste |
|
Long-term Energy Saving |
Moderate |
High |
8–15% reduction in HVAC energy consumption |
