PIR Pre-insulated Aluminum Duct Board: The Next Generation of High-Performance HVAC Ducting
Are you looking for an HVAC ducting solution that is lighter, stronger, and more energy-efficient than traditional sheet metal or fiberglass ducts? Meet the PIR Pre-insulated Aluminum Duct Board – a revolutionary composite material engineered for modern heating, ventilation, and air conditioning systems.
What Is It?

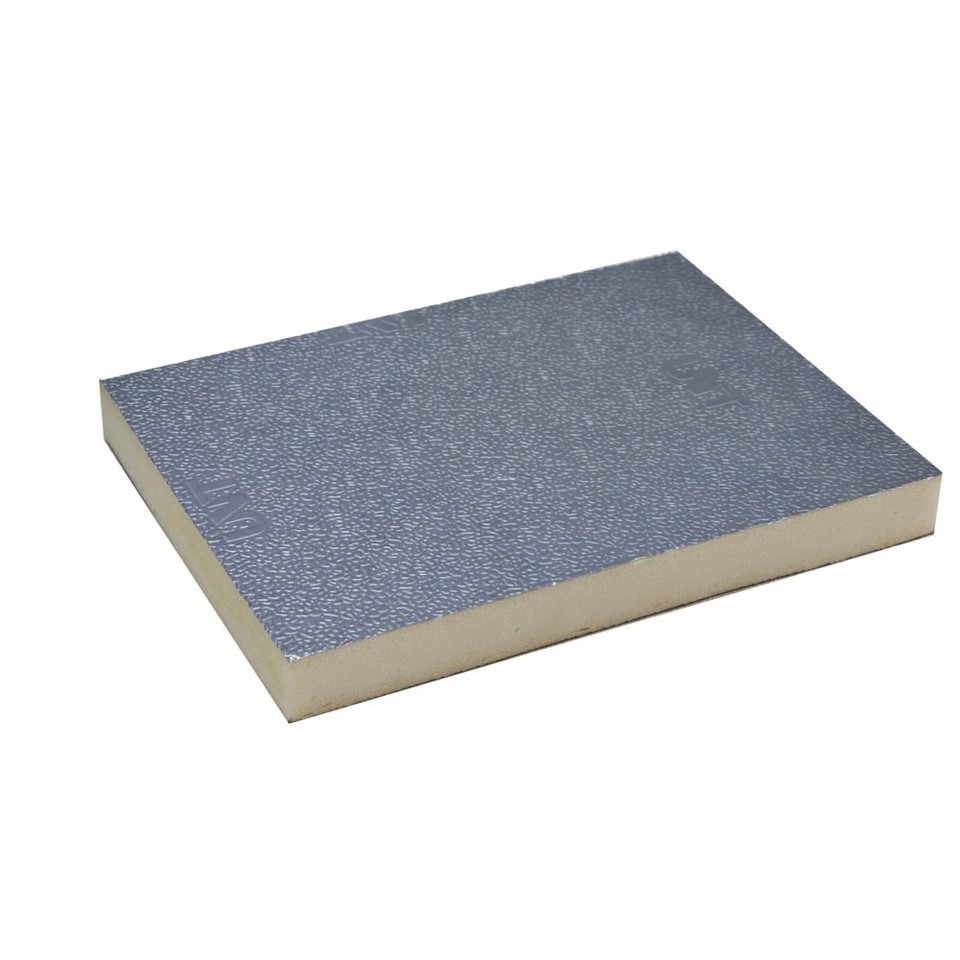

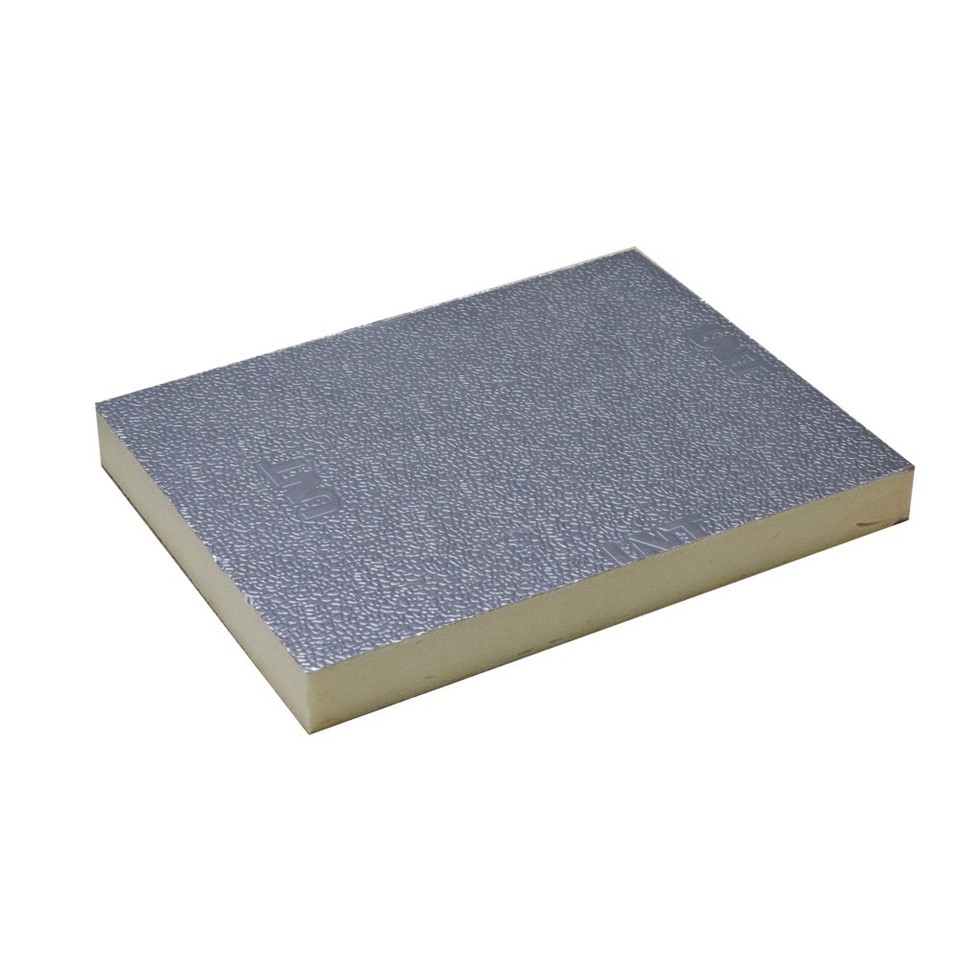

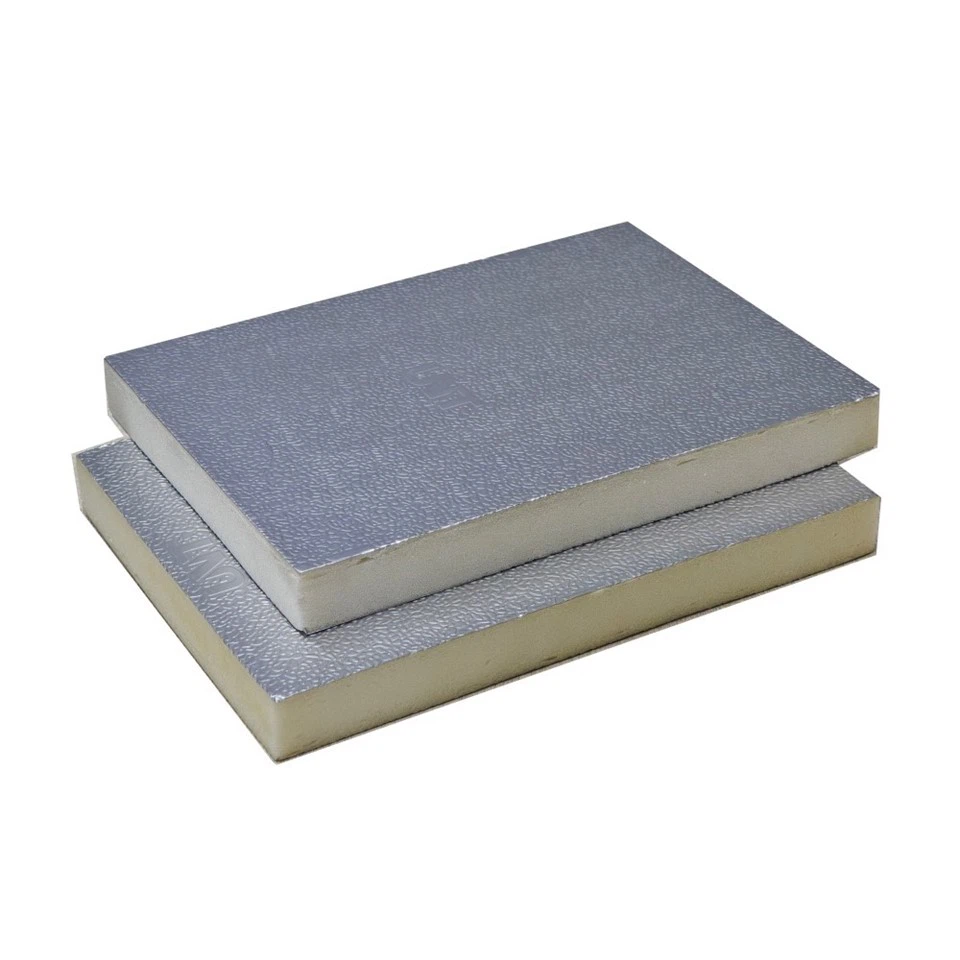

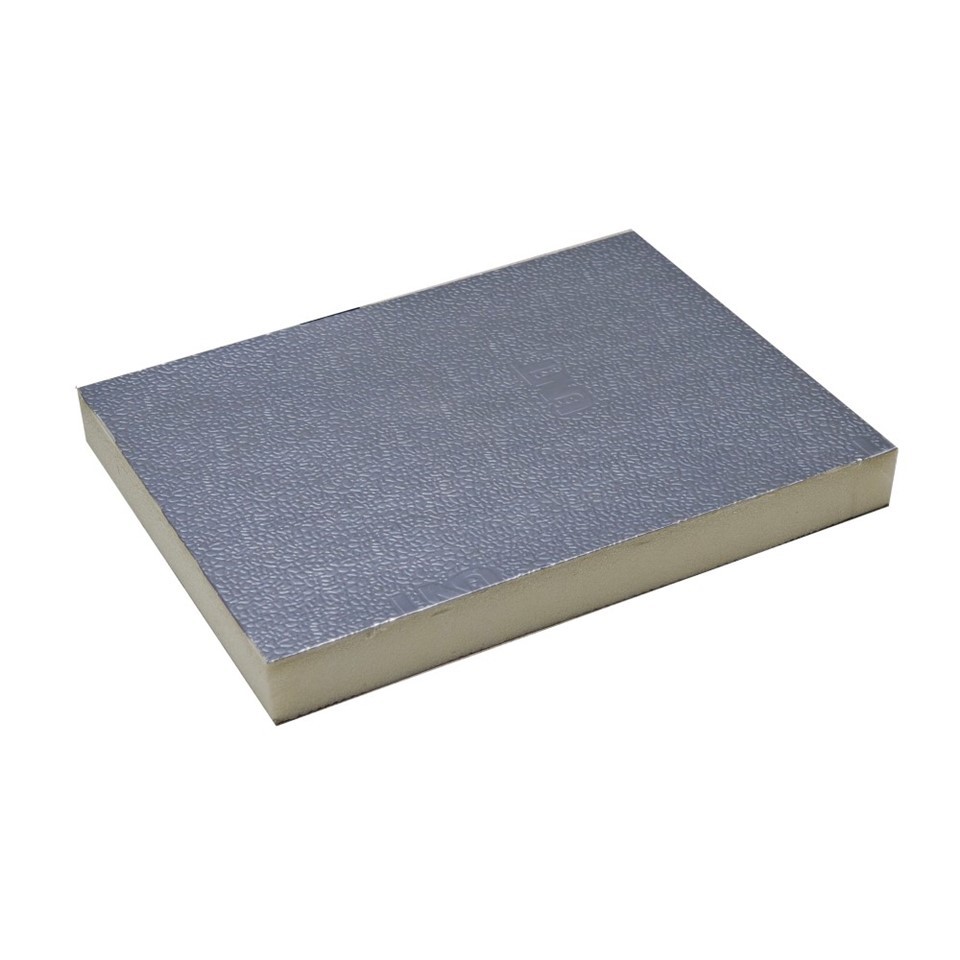

PIR (Polyisocyanurate) duct board is a rigid, sandwich-type panel. It consists of a high-density closed-cell rigid PIR foam core, permanently bonded to a high-purity aluminum foil on both sides. This "sandwich" eliminates the need for separate external insulation or internal lining.
Structure: Silver Aluminum/ PIR Foam/ Silver Aluminum
Fire Safety: Class 0 (BS 476 Part 6&7), Class A (ASTM E84)
Thermal Conductivity: 0.022W/M.K
Key Benefits of PIR Pre-insulated Aluminum Duct Board for your projects
| Key Benefits | Why It Matters for You |
|---|---|
| 🔥 Superior Fire Safety | PIR foam is inherently fire-retardant – chars, does not drip flaming particles, and produces low smoke. Meets ASTM E84 Class A / BS 476. |
| ⚡ 30% Lower Energy Bills | Ultra-low thermal conductivity (≤0.022 W/m·K). Built-in aluminum vapor barrier stops condensation & thermal loss. |
| 🪶 80% Lighter than Steel | Reduces building structural load. Lower shipping costs. Easy to carry and install by hand. |
| 🔧 50% Faster Installation | Cut, score, and fold with simple hand tools. No heavy machinery. Assembles with aluminum tape or sealants. |
| 🌿 Mold-Free & No Fibers | Smooth closed-cell surface does not shed fibers. Resists moisture, mold, and mildew. Ideal for hospitals & cleanrooms. |
| 🧪 Corrosion Resistant | Aluminum facings withstand humidity, chemicals, and UV (when coated). Lasts decades without degradation. |
PIR Pre-insulated Aluminum Duct Board vs. Traditional Ducts
| Features | PIR Aluminum Duct | Sheet Metal + External Insulation | Fiberglass Duct Board |
|---|---|---|---|
| Thermal performance | Excellent | Good (depends on insulation) | Average |
| Fire safety | Excellent | Very good | Poor (fiber shedding) |
| Weight | Very light | Very heavy | Light |
| Installation speed | Very fast | Slow | Moderate |
| Corrosion/fungal risk | None | Moderate (if insulation gets wet) | High (when moist) |
| Air leakage | Very low (joints taped) | Moderate (many seams) | Low |
| Lifetime cost | Low | High | Moderate |
Why Choose Our PIR Duct Board?
✅ Certified Quality: All boards are tested for fire, thermal, and mechanical performance by third-party labs.
✅ Custom Sizes: We offer standard 4'x8' sheets, or cut-to-size service for large projects.
✅ Technical Support: Free layout design, fabrication training, and on-site guidance.
✅ Eco-Friendly: PIR foam contains no CFCs/HCFCs, and the board is 100% recyclable at end of life.
UNTDuct PIR System
| Property | Value |
|---|---|
| Core Material | Polyisocyanurate (PIR) rigid foam |
| Facing | Embossed/Aluminum foil (60 or 80 microns) |
| Density (core) | 45–55 kg/m³ |
| Thermal conductivity | ≤ 0.022 W/(m·K) at 10°C |
| Compressive strength | ≥ 150 kPa |
| Operating temperature | -50°C to +120°C |
| Fire rating | Class A or B-s1, d0 (varies by standard) |
| Thickness options | 10mm/ 20mm / 25mm / 30mm/ 40mm |
| Width | 1200mm |
| Length | from 2000 to 4000 mm |
