PIR Air Conditional Panel

Thanks to its excellent products and quality services, UNT Duct is one of the leading pir air conditional panel manufacturers and suppliers in China. Welcome to buy the high quality and customized products from our factory. We will offer you the best service and fast delivery.

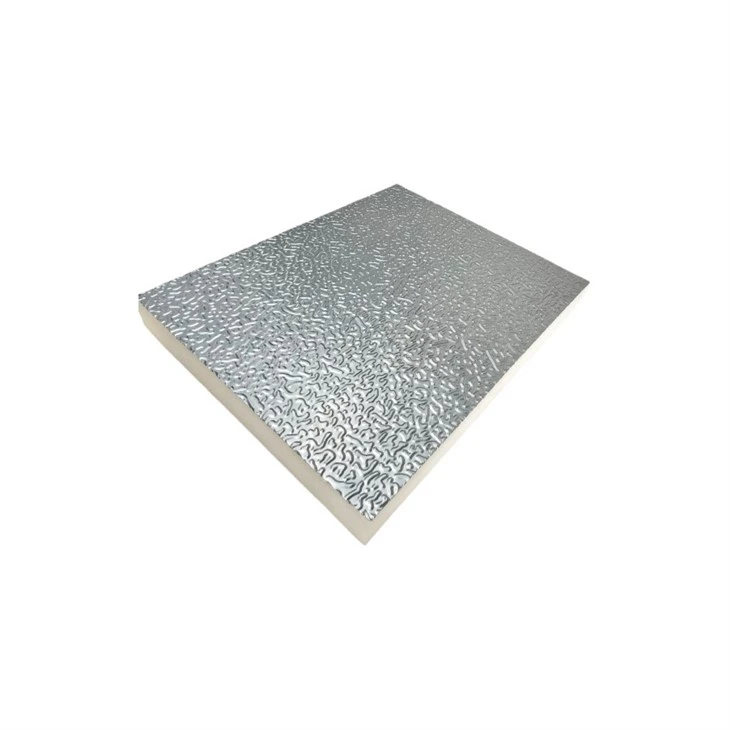

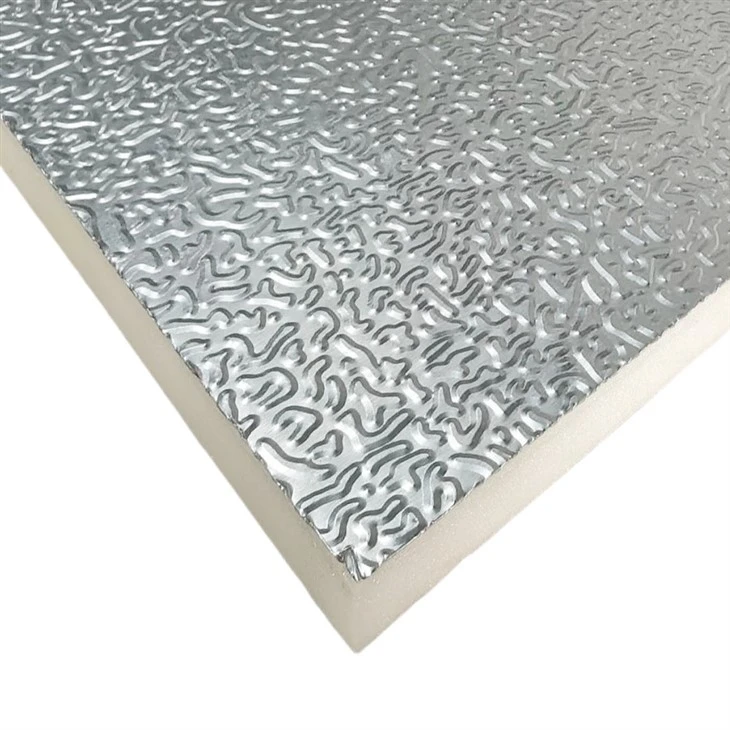

PIR Air Conditional Panel is essential high-performance elements for modern HVAC systems. Built with an aluminum foil–PIR foam sandwich, they replace traditional galvanized steel ducts with on-site insulation. Suitable for hotels, offices, airports, hospitals, and other commercial and public buildings.



Core Density: ~53 kg/m³

Thermal Conductivity: ≤ 0.022 W/m·K (providing excellent insulation)

Standard Thickness: 10-40mm

Common Sizes: 1200mm width * 3950mm length

Fire Rating: Meets international standards like BS 476 Class 0 and ASTM E84 Class A due to the flame-retardant PIR core



From an industrial application standpoint, PIR Air Conditional Panel are not merely a standalone product, but a customisable solution segmented according to project requirements. Within the commercial marketplace, leading brands including SOLIMIDE foam adopt clear tiered grading for different application scenarios:

Aerospace Grade (e.g. AC-550 / AC-530) Designed for aircraft fuselage and air conditioning ductwork, compliant with the most rigorous airworthiness standards.

Marine & Industrial Grade (e.g. TA-301) Applied to naval ventilation ducts and HVAC systems for rail vehicles, satisfying military specifications including MIL-DTL-24688.

High-Temperature Grade (e.g. HT-340) Ideal for high-temperature pipelines, ovens and other environments with operating temperatures up to 300°C.

Such tiered classification highlights the core value of PI foam duct systems: tailored material selection enables precise alignment with stringent safety and performance criteria across diverse industries.

Integrated prefabricated panels enable one-step cutting and assembly to greatly save construction time:





Higher Labor Efficiency

For equal duct area: traditional insulated galvanized steel duct achieves 18 m²/person/day; on-site assembled PIR panels reach 30 m²/person/day. Installation time is reduced 40%–60%, with labor costs lowered by 45%.





Balanced Overall System Cost

While panel unit price is higher than steel sheet, secondary insulation, moisture barriers and numerous hangers are omitted. Total duct system cost is comparable or even 8% lower.





Optimized Shipping

Foldable packing boosts loading capacity to 2.3 times. Inland and ocean logistics costs fall by 50%, delivering obvious benefits for international projects under DAP terms.
