Rigid PU (polyurethane) pre-insulated ductwork is a modern, high-performance alternative to traditional sheet metal ducts for heating, ventilation, and air conditioning (HVAC) systems. It consists of a rigid polyurethane foam core sandwiched between two metal facings, typically aluminum or galvanized steel.
Category
UNTDuct PU System

Send Inquiry
Description
Technical Parameters

Thanks to its excellent products and quality services, UNT Duct is one of the leading rigid pu pre-insulated ductwork manufacturers and suppliers in China. Welcome to buy the high quality and customized products from our factory. We will offer you the best service and fast delivery.

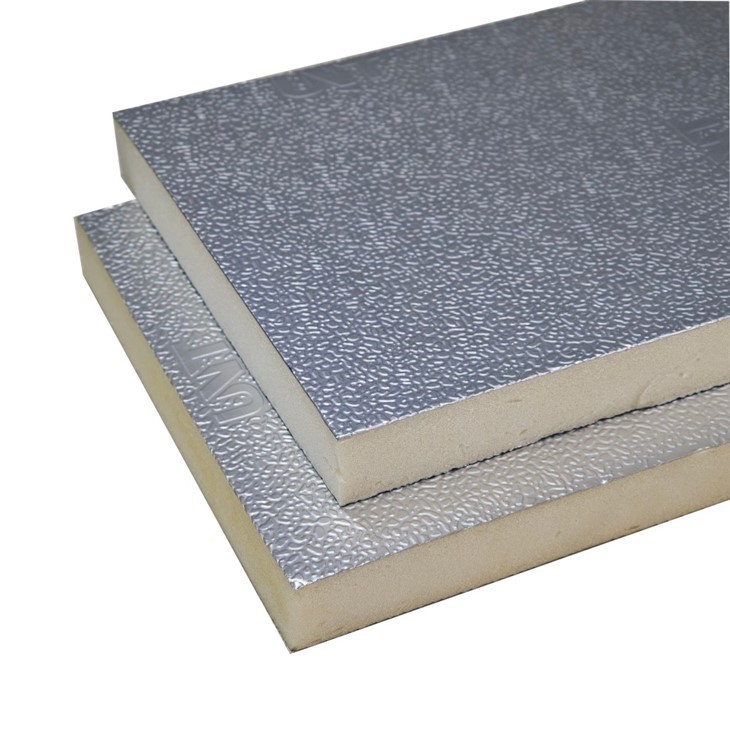

Rigid PU Pre-Insulated Ductwork



Rigid PU (polyurethane) pre-insulated ductwork is a modern, high-performance alternative to traditional sheet metal ducts for heating, ventilation, and air conditioning (HVAC) systems. It consists of a rigid polyurethane foam core sandwiched between two metal facings, typically aluminum or galvanized steel.



This design offers significant advantages in energy efficiency, ease of installation, and long-term durability. Unlike traditional systems that require field-installed insulation, this is a "dual-skin" or "sandwich panel" solution that arrives ready for fabrication.

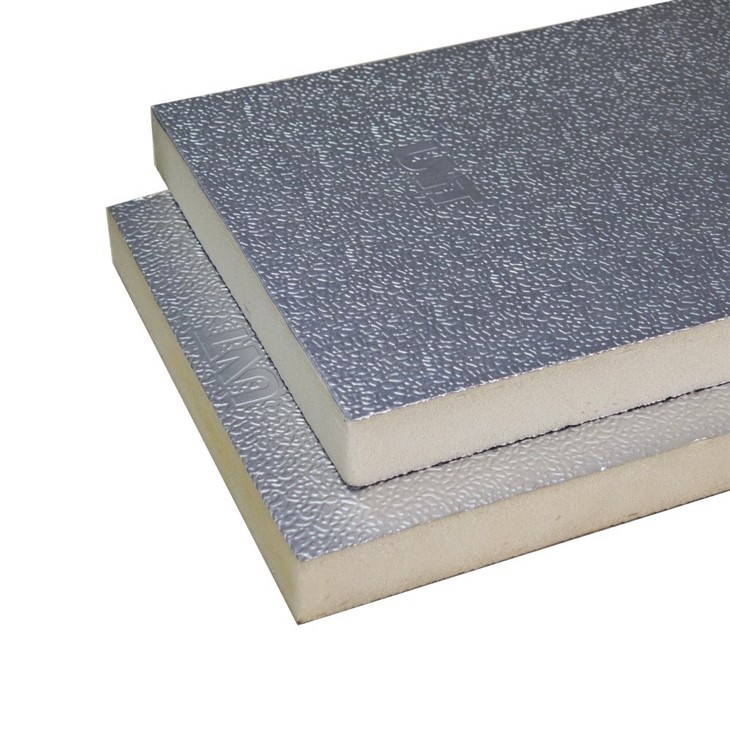

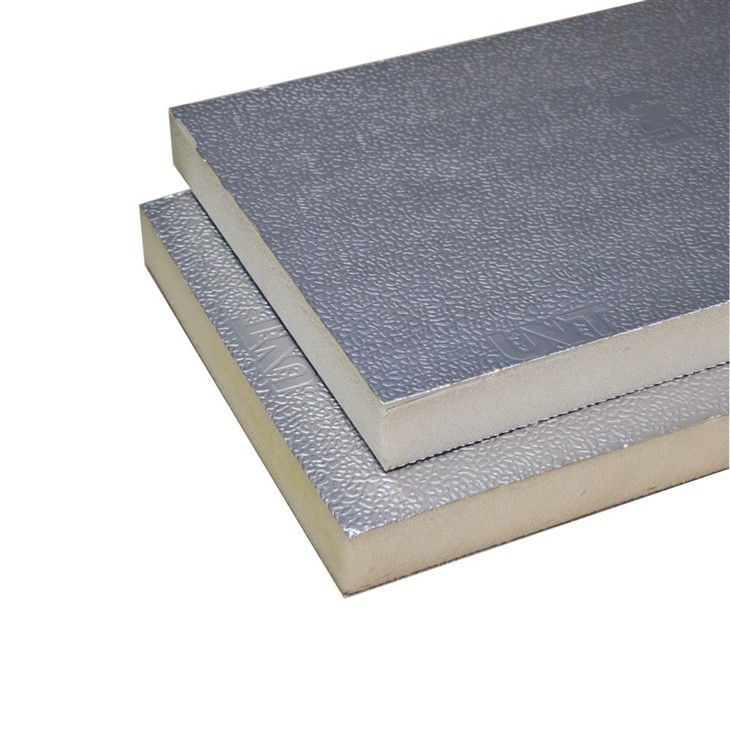

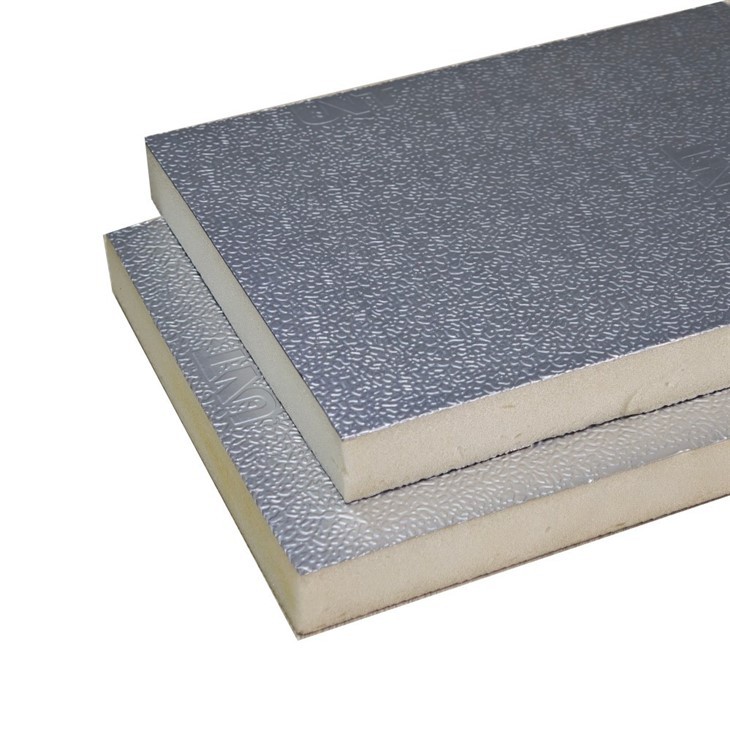

Structure: Silver Aluminum/ PU Foam/ Silver Aluminum
Size: 3950*1200*20mm
Foam Density: 48kg/m3
Aluminum Thickness: 0.06mm or 0.08mm
Aluminum Color: Silver
Packing: 10 sheets/ package
Loading Capacity: 710 sheets/ 40'HQ (packed with plastic bags)
                                  660 sheets/ 40'HQ (packed with cardboard box)

Rigid PU Pre-Insulated Ductwork

Send inquiry

Advantages of Rigid PU Pre-Insulated Ductwork





Understanding the core technical specifications explains why this system is gaining popularity:



Low Thermal Conductivity:

PU foam has a thermal conductivity of 0.020 W/m·K, which is significantly lower than fiberglass. This provides superior thermal resistance (R-value) with less thickness, meaning ducts can be slimmer while still preventing energy loss and condensation.



Exceptional Airtightness:

When properly sealed, these systems achieve very low air leakage rates. Some systems meet Class D airtightness (the lowest leakage level), which is far superior to standard metal ducts and results in significant energy savings.



Temperature Range:

Rigid PU foam is effective across a wide range, from -100°C to +80°C for air handling, making it suitable for both cold and hot climates.



Lightweight Construction:

The foam core makes the panels much lighter than equivalent metal ducts, reducing the need for heavy support structures and speeding up installation.

Send inquiry

Benefits of Rigid PU Pre-Insulated Ductwork Over Traditional Ductwork



Why are engineers and contractors making the switch? The benefits are compelling:



Energy Efficiency:

The superior insulation reduces thermal loss by up to 30% compared to non-insulated or poorly insulated metal ducts, lowering HVAC operational costs.



Condensation Control:

Because the foam prevents the outer surface from reaching the dew point, it effectively eliminates condensation, mold, and water damage without needing external vapor barriers.



Cleaner Air Quality:

The smooth, non-porous inner metal lining resists dust and microbial growth, making it hygienic and easy to clean for sensitive environments like hospitals and cleanrooms.



Faster Installation:

The insulation is factory-applied, which cuts installation time by as much as 50%. There is no need to wrap insulation on-site, and the panels can be fabricated into ducts using specialized tools.



Space Saving:

The compact design often eliminates the need for large, protruding flanges, saving valuable building space in ceiling plenums and risers.

Send inquiry


How to Fabricate PU Pre-Insulated Rectangular Ductwork

Fabrication of Pre-insulated Duct
1. marking
product-496-372
2. Cutting
product-496-372
3. Applying Glue
product-496-372
4. Folding
product-496-372
5. taping
product-496-372
6. Applying Profiles
Fabrication of Pre-insulated Duct
7. Applying Silicone Sealant
Reinforcement of Pre-insulated duct
8. Reinforcement

Send inquiry

Why choose UNTDuct

UNT Pre-insulated Ductwork

Project Case of UNT Ductwork

Project Case of UNT Ductwork



PRE-INSULATED DUCT vs G.I. DUCTWORK

Metric

20mm PU Pre - Insulated Duct
(with 0.08mm Alu. Foil, )

0.5mm G.I Duct + 30mm Rubber Plastic (40-90kg/m3)

Fire Safety

Compliant (Class 0/BS 476, AS 1530.3). Self-extinguishing PU core, low toxic smoke, non-combustible alu foil.

G.I non-combustible;
rubber plastic fire-retardant but requires coating to meet strict codes.G.I

Thermal Insulation

Excellent.
λ=0.020 W/m·K, no thermal bridging. 20mm integrated structure ensures consistent insulation.

Fair.
λ=0.035 W/m·K, thermal bridging at G.I joints. 30mm insulation offset by metal conductivity.

Hygiene & Air Quality

Superior.
Non-porous alu foil, smooth inner surface, moisture-resistant PU. Meets cleanroom/hospital standards.

Poor.
Porous rubber plastic traps dust/mold; G.I-insulation gaps breed pathogens.

Lightweight

1.4-1.5 kg/m².
Ultra-light, reduces structural load; ideal for retrofits/timber-framed buildings.

5.1–6.3 kg/m².
Heavy G.I base + bulk insulation; requires reinforced supports.

Energy Efficiency

Excellent.
20–30% lower HVAC energy consumption. Minimizes heat gain/loss in conditioned air.

Low.
20–30% higher energy loss due to inferior insulation and thermal bridging.

Ease of Construction

Easy.
Factory-prefabricated tongue-and-groove joints. No separate insulation step; 40–60% less labor time.

Complex.
Two-step on-site process: G.I duct fabrication + rubber plastic wrapping. Labor-intensive, prone to gaps.

Quiet Operation

Good.
PU core absorbs 10–15 dB airflow noise; alu foil dampens vibration.

Fair.
Rubber plastic provides basic sound reduction, but G.I vibration and insulation gaps reduce efficiency.

Space Savings

Excellent.
20mm total thickness (all-in-one). Fits tight ceilings/retrofit cavities.

Poor.
30.5mm total thickness (0.5mm G.I + 30mm insulation). Bulky, requires larger installation space.

Environmental Friendliness

Balanced.
CFC/HCFC-free PU, recyclable alu foil. 20–30-year lifespan; net carbon positive in 1–3 years.

Low.
Rubber plastic non-recyclable; 10–15-year lifespan. Frequent replacement increases waste; higher energy emissions.

Air Leakage

Superior.
≤2% air leakage (EN 1507, AS/NZS 3660.1). Airtight factory joints + alu foil vapor barrier.

Poor.
5–10% air leakage. On-site sealing gaps; separate vapor barrier required.


Performance comparison based on UNT Duct product data and standard system configurations. Actual performance may vary depending on system design, installation method and project conditions.
