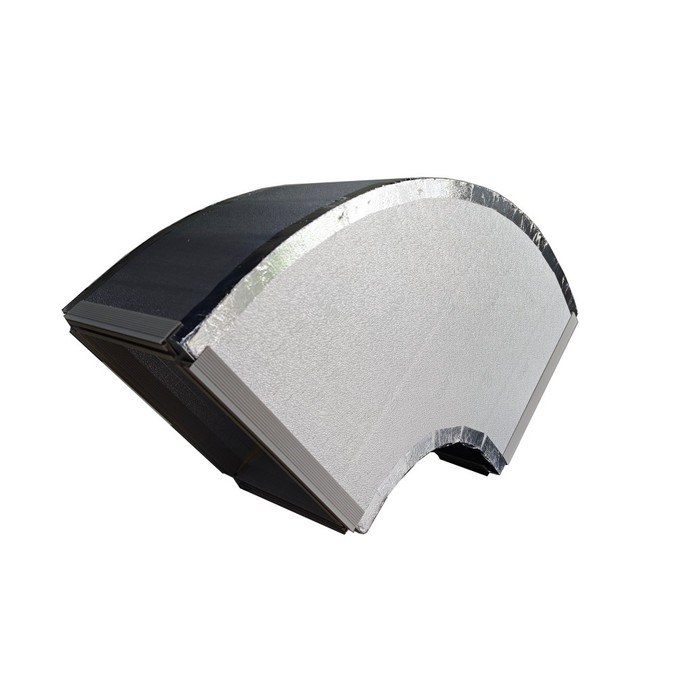

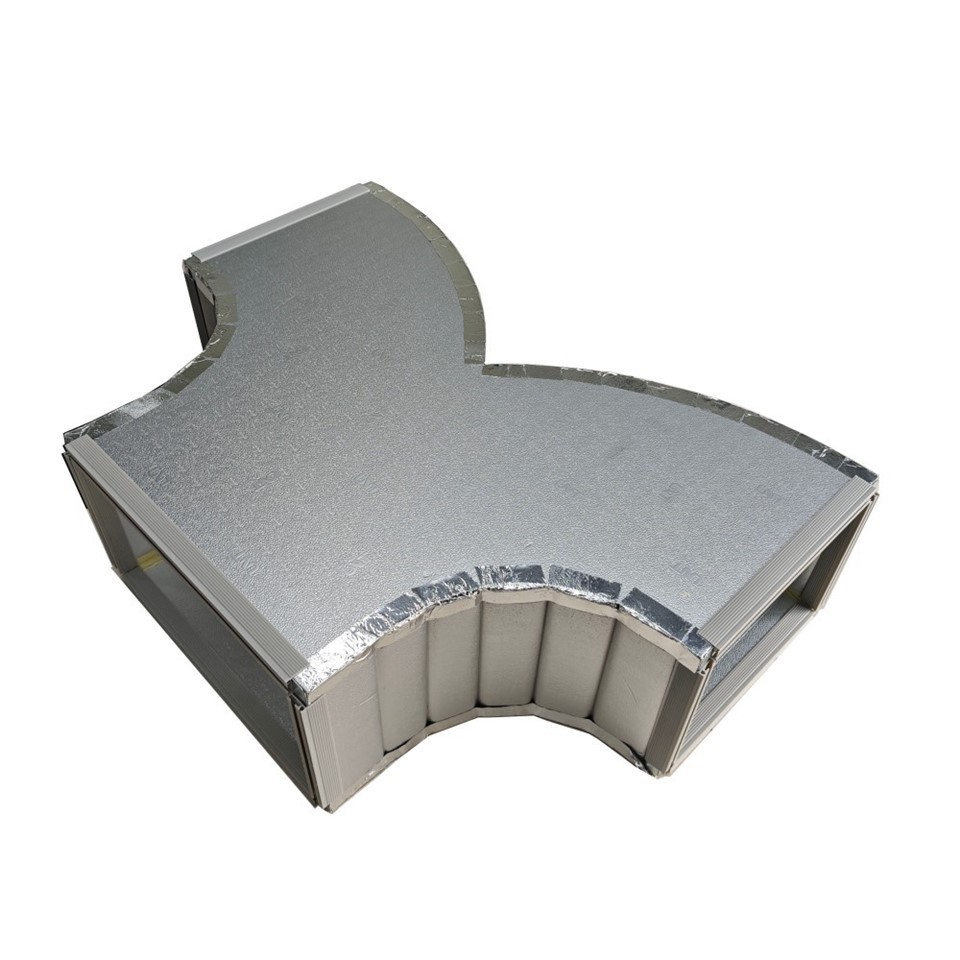

PU Pre-insulated Foam Ductwork
PU Pre-insulated Foam Ductwork is an integrated air duct system with rigid polyurethane foam as the core insulation layer, combined with protective facings on both sides. It features excellent thermal insulation, low air leakage, and lightweight construction, widely used in HVAC systems for commercial buildings, industrial workshops, clean rooms and shopping malls.
Structure: Silver Aluminum/ PU Foam/ Silver Aluminum
Size: 3950*1200*20mm
Foam Density: 40-45kg/m3
Aluminum Thickness: 0.06mm or 0.08mm
Aluminum Color: Silver
Packing: 10 sheets/ package
Loading Capacity: 710 sheets/ 40'HQ (packed with plastic bags)
660 sheets/ 40'HQ (packed with cardboard box)
Construction and Application of PU Pre-insulated Foam Ductwork
This product is in the form of prefabricated panels. It can be directly cut, plugged, and bonded on-site according to the project drawings, without the need for secondary insulation layer wrapping on-site. The construction process is significantly simplified.
The overall weight is light, with low pressure on the building structure, and the lifting difficulty is low. It can effectively shorten the construction period, especially suitable for renovation projects, high-rise buildings, and projects with tight schedules.
Standardized panels reduce on-site processing errors, and the duct joint sealing performance is better. The air leakage rate is much lower than that of traditional ducts, which can improve the actual air supply efficiency of the air conditioning system and reduce the operating load of the fan.
In addition, the clean and tidy construction method can also reduce dust and construction waste, which is more in line with modern green construction requirements.

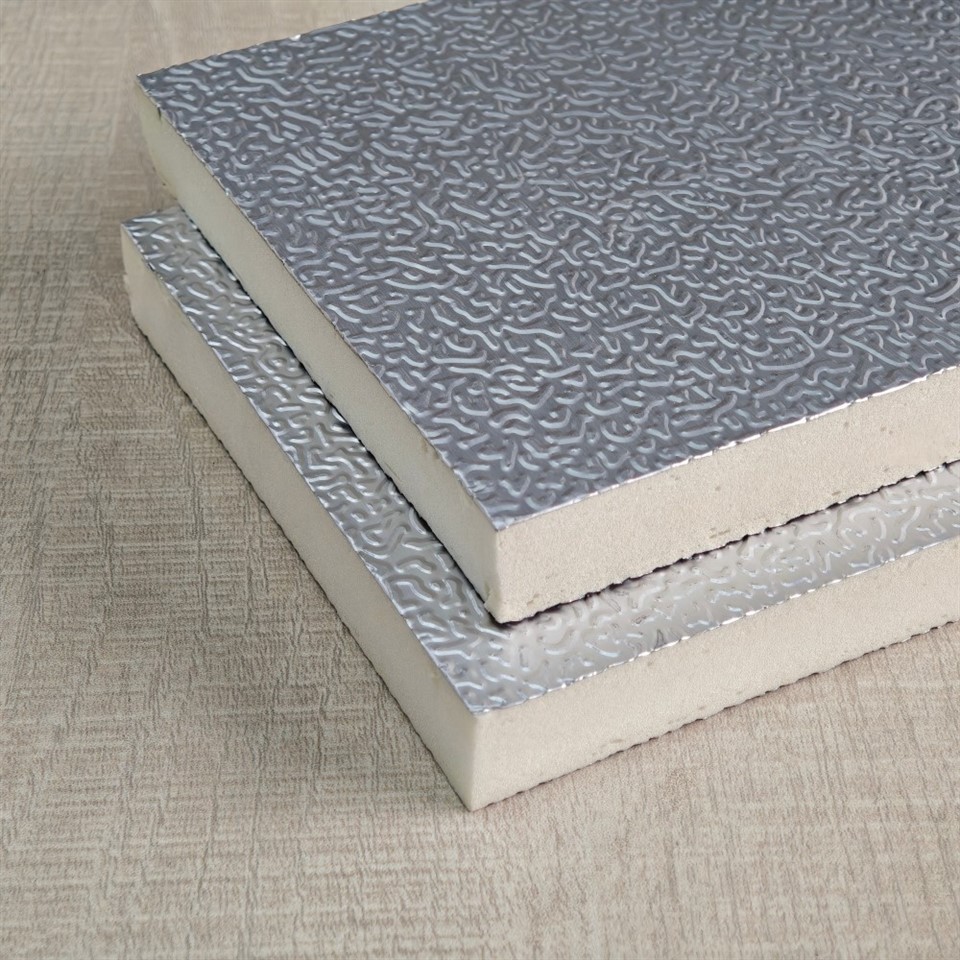

PIR DUCT PANEL Aluminum Foil/Alu. Sheet
| Technical Parameter | PIR DUCT PANEL(Both Sides Aluminum Foil) | PIR DUCT PANEL(One Side Aluminum Sheet,One Side Aluminum Foil) |
| Product Model | PIR-DP-BF | PIR-DP-SSF |
| Core Material | Polyisocyanurate(PIR)Foam | Polyisocyanurate (PIR)Foam |
| Face Layer(Side 1) | Aluminum Foil (Thickness:0.06mm/0.08mm) | Aluminum Sheet (Thickness:0.15-0.20mm, Plain/Embossed) |
| Face Layer(Side 2) | Aluminum Foil(Thickness:0.06/0.08mm) | Aluminum Foil(Thickness:0.06/0.08mm) |
| Density of PIR Core | 50-55kg/m³ | 50-55kg/m³ |
| Thermal Conductivity (25℃) | ≤0.022 W/(m ·K) | ≤0.022 W/(m ·K) |
| Fire Rating(GB Standard) | Class B1(Non-combustible) GB 8624 B-s3, d0 |
Class B1(Non-combustible) GB 8624 B-s3, d0 |
| Fire Safety | BS 476 Part 6 & 7 /ASTM E84 Class 0/ Class A |
BS 476 Part 6 & 7 /ASTM E84 Class 0/ Class A |
| Standard Size(L×W×T) | L:2400-3950mm;W:1200mm;T:10-40mm | L:2400-3950mm;W:1200mm;T:10-50mm |
| Compressive Strength(25% Deformation) | ≥348 kPa | ≥480 kPa(Higher due to aluminum sheet) |
| Water Absorption (24h Immersion) | ≤1.5%(V/V) | ≤1.2%(V/V)(Better water resistance with aluminum sheet) |
| Operating Temperature Range | -60℃ to+90℃ | -60℃ to+100℃ |
| Water Vapor Permeability | ≤0.05 g/(m ·d ·Pa) | ≤0.04 g/(m ·d ·Pa) |
