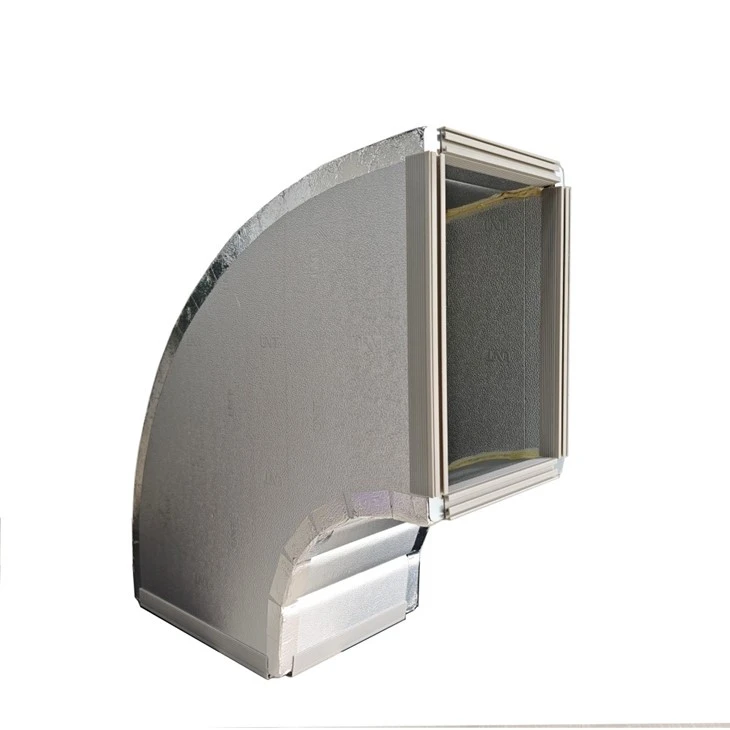

Rigid PU Pre-insulated Duct Board

Rigid PU Pre-insulated Duct Board

Details
Rigid PU pre-insulated duct board is a lightweight, all-in-one HVAC panel that replaces heavy sheet metal and external insulation, cutting installation time in half while delivering superior thermal efficiency and zero condensation risk.
Category
UNTDuct PU System

Send Inquiry
Description
Technical Parameters

Thanks to its excellent products and quality services, UNT Duct is one of the leading rigid pu pre-insulated duct board manufacturers and suppliers in China. Welcome to buy the high quality and customized products from our factory. We will offer you the best service and fast delivery.



The Contractor's Edge: Why Rigid PU Pre-Insulated Duct Board is the Future of Your HVAC Installations

Let's be honest: traditional sheet metal ductwork is heavy, labor-intensive, and eats into your margins with fabrication time and insulation labor.

If you are looking for a way to speed up installations, protect your crew's backs, and deliver a quieter, more efficient system to your clients, it is time to spec Rigid Polyurethane (PU) Pre-Insulated Duct Board.

Rigid PU pre-insulated duct board is a lightweight, all-in-one HVAC panel that replaces heavy sheet metal and external insulation, cutting installation time in half while delivering superior thermal efficiency and zero condensation risk.



Structure: Silver Aluminum/ PU Foam/ Silver Aluminum
Size: 4000*1200*20mm
Foam Density: 48kg/m3
Aluminum Thickness: 0.06mm or 0.08mm
Packing: 10 sheets/ package
Loading Capacity: 710 sheets/ 40'HQ (packed with plastic bags)
                                660 sheets/ 40'HQ (packed with cardboard box)

Send inquiry

Rigid PU Pre-insulated Duct Board

Here is what this material means for you on the ground level





1. Slash Installation Time (and Labor Costs)

Forget the multi-step process of measuring, cutting metal, sealing seams, wrapping with fiberglass, and applying vapor barriers.

All-in-One: PU duct board is a structural insulated panel. The CFC-free PU foam core is sandwiched between reinforced aluminum foil facings.

Fabrication Speed: You cut it with standard knives or light-duty power tools-no plasma cutters or heavy shears. You can fabricate a full duct run in half the time of metal.

Joinery: The male/female (tongue & groove) connections fit together seamlessly and are sealed with aluminum tape. No heavy flanges, no bolting, and no external insulation jackets.



2. A Safer, Cleaner Jobsite

We all know the reputation of traditional fiberglass insulation. It itches, it degrades over time, and it requires bulky PPE.

No Itch: PU foam is rigid and dust-free. Your guys won't be dealing with airborne glass fibers during installation.

Lightweight: A standard panel weighs roughly 40-50% less than sheet metal with external insulation. This means less strain on your crew during overhead installations and fewer lift rentals.



3. Superior Performance = Fewer Callbacks

Nothing hurts your profit like a callback for condensation dripping or poor airflow.

Thermal Efficiency: PU foam has a closed-cell structure with a thermal conductivity as low as 0.020 W/m·K. This is roughly twice as efficient as fiberglass. You can achieve the same R-value with a thinner panel, saving space in tight mechanical rooms.

Zero Condensation: The solid foam core acts as an integrated vapor barrier. When sealed correctly, the surface temperature stays above the dew point, virtually eliminating the risk of water damage and mold growth.

Airtight: Properly taped joints result in significantly lower leakage rates compared to spiral or welded metal, directly improving the system's SEER/IEER ratings.



4. Acoustics: The Silent Selling Point

In high-end residential and commercial projects, noise complaints are a pain. The PU foam core has excellent sound-dampening properties. It absorbs the "rumble" of the air handler and reduces cross-talk between rooms, giving your clients a quieter building.



5. Fire Safety & Compliance

We know you don't take fire ratings lightly. High-quality PU duct boards are manufactured with flame retardants and pass international standards such as BS476 Part 6&7 and ASTM E-84 (Class 1 or 0). When installed per the manufacturer's guidelines, they meet strict building codes for commercial and residential use.

mbining top-tier insulation, safety, and ease of installation to deliver comfortable, cost-effective, and sustainable air distribution in any building.

Send inquiry



Main Production Process of Rigid PU Pre-insulated Duct Board

product-496-372
1. Raw Material Mixing
product-496-372
2. Aluminum foil embossing
product-496-372
3. PIR Foam Injection
product-496-372
4. Foaming & Laminating
product-496-372
5. Pre-insulated Panel Cutting
product-496-372
6. Duct Panel auto-stacking
product-496-372
7. Packing of Pre-insulated duct
product-496-372
8. Stocking of PID panel

Send inquiry



Why choose UNT Ductwork

UNT Pre-insulated Ductwork

Project Case of UNT Ductwork

Project Case



The UNTDuct PU System: Redefining Air Distribution Excellence




More than just pre-insulated aluminum panels, the UNTDuct System is a comprehensive solution - complete with precision-engineered accessories, specialized machinery, purpose-built tools, and expert know-how - ensuring flawless construction and installation.



UNTDuct System Panels


Pre-insulated PU Panels:

The system's base sandwich boards consist of closed-cell PU foam core bonded with double-sided aluminum foil, delivering outstanding energy saving, moisture resistance and hygienic performance compared to traditional GI ducts.



Pre-insulated duct Accessories:

Custom aluminum and PVC profiles, sealants, hanging hardware and prefabricated duct fittings perfectly match panel sizes to secure airtight, stable duct joints during assembly.

UNTDuct System Accessories
UNTDuct System Cutting Tools


Fabrication Tools/ Equipment:

Specialized Machinery & Purpose-built Portable cutting, grooving and shaping hand tools plus optional automated processing machines support flexible on-site fabrication and standardized mass pre-production of duct components.



Know-How:

Professional Expert Know-how & Technical Support: Comprehensive technical training, customized design plans, construction guidance and after-sales consultation are provided to help clients handle all types of HVAC projects smoothly.

Pre-insulated Duct Know-How




Our Honor & certificate


Since its establishment in 2013, UNT has obtained 17 patents and earned numerous industry honors. We are also certified to the ISO 9001, ISO 14001, and ISO 45001 international management standards.

December 2020: Awarded the National High-Tech Enterprise Certificate and the Fujian Provincial High-Tech Enterprise Certificate

December 2023: Awarded the National High-Tech Enterprise Certificate and the Fujian Provincial High-Tech Enterprise Certificate

November 2024: Listed in the Fujian Provincial List of Specialized, Refined, Differentiated and Innovative Small and Medium-Sized Enterprises

UNTDuct ISO 9001:2015
UNTDuct ISO 9001 2015
UNTDuct ISO 14001:2015
UNTDuct ISO 14001 2015
UNTDuct ISO45001:2018
UNTDuct ISO 45001 2018
Fire Safety GB 8624 B-s3 d0011
Fire Safety GB 8624-2012
UNTDuct PIR Fire Safety BS476Class 0011
Fire Safety BS476 Part6&7
Fire Safety ASNZS 1530.3
Fire Safety ASNZS 1530.3
UNT ASTM C518-10 Thermal Conductivity011
Thermal Conductivity
PID Panel Physical Property
PID Panel Physical Property



PRE-INSULATED DUCT vs G.I. DUCTWORK

Metric

20mm PU Pre - Insulated Duct
(with 0.08mm Alu. Foil, )

0.5mm G.I Duct + 30mm Rubber Plastic (40-90kg/m3)

Fire Safety

Compliant (Class 0/BS 476, AS 1530.3). Self-extinguishing PU core, low toxic smoke, non-combustible alu foil.

G.I non-combustible;
rubber plastic fire-retardant but requires coating to meet strict codes.G.I

Thermal Insulation

Excellent.
λ=0.020 W/m·K, no thermal bridging. 20mm integrated structure ensures consistent insulation.

Fair.
λ=0.035 W/m·K, thermal bridging at G.I joints. 30mm insulation offset by metal conductivity.

Hygiene & Air Quality

Superior.
Non-porous alu foil, smooth inner surface, moisture-resistant PU. Meets cleanroom/hospital standards.

Poor.
Porous rubber plastic traps dust/mold; G.I-insulation gaps breed pathogens.

Lightweight

1.4-1.5 kg/m².
Ultra-light, reduces structural load; ideal for retrofits/timber-framed buildings.

5.1–6.3 kg/m².
Heavy G.I base + bulk insulation; requires reinforced supports.

Energy Efficiency

Excellent.
20–30% lower HVAC energy consumption. Minimizes heat gain/loss in conditioned air.

Low.
20–30% higher energy loss due to inferior insulation and thermal bridging.

Ease of Construction

Easy.
Factory-prefabricated tongue-and-groove joints. No separate insulation step; 40–60% less labor time.

Complex.
Two-step on-site process: G.I duct fabrication + rubber plastic wrapping. Labor-intensive, prone to gaps.

Quiet Operation

Good.
PU core absorbs 10–15 dB airflow noise; alu foil dampens vibration.

Fair.
Rubber plastic provides basic sound reduction, but G.I vibration and insulation gaps reduce efficiency.

Space Savings

Excellent.
20mm total thickness (all-in-one). Fits tight ceilings/retrofit cavities.

Poor.
30.5mm total thickness (0.5mm G.I + 30mm insulation). Bulky, requires larger installation space.

Environmental Friendliness

Balanced.
CFC/HCFC-free PU, recyclable alu foil. 20–30-year lifespan; net carbon positive in 1–3 years.

Low.
Rubber plastic non-recyclable; 10–15-year lifespan. Frequent replacement increases waste; higher energy emissions.

Air Leakage

Superior.
≤2% air leakage (EN 1507, AS/NZS 3660.1). Airtight factory joints + alu foil vapor barrier.

Poor.
5–10% air leakage. On-site sealing gaps; separate vapor barrier required.


Performance comparison based on UNT Duct product data and standard system configurations. Actual performance may vary depending on system design, installation method and project conditions.
