Thanks to its excellent products and quality services, UNT Duct is one of the leading polyurethane pid ductwork manufacturers and suppliers in China. Welcome to buy the high quality and customized products from our factory. We will offer you the best service and fast delivery.

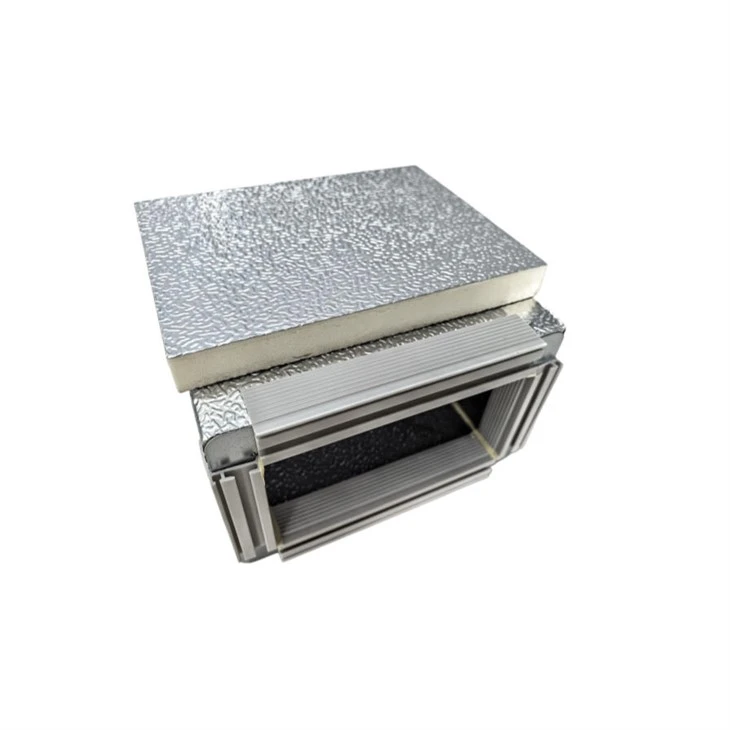

Polyurethane PID ductwork
Polyurethane PID ductwork is a modern, pre-insulated ductwork system used for heating, ventilation, and air conditioning. It's designed as a high-performance alternative to traditional metal ducts, integrating structure and insulation into a single, lightweight panel.
What is it Made Of?
Polyurethane PID ductwork is a sandwich panel with three key layers:
Aluminum Facings: Both interior and exterior sides are laminated with aluminum foil or solid aluminum sheet, forming a smooth, sanitary and corrosion-resistant finish. Standard indoor-grade aluminum foil has a thickness ranging from 60 to 80 microns. For heavy-duty applications or outdoor installations, thicker aluminum sheets or supplementary protective coatings are available as alternatives.
Polyurethane (PU) Foam Core: The core substrate consists of rigid polyurethane foam, acting as the main thermal insulation medium. Its dense closed-cell structure endows the panel with outstanding water resistance and reliable acoustic insulation performance.
Environmentally Friendly Foam: This PU foam is produced free of ozone-depleting CFC and HCFC blowing agents, complying with global environmental protection standards.
Key Advantages of Polyurethane PID ductwork
Unlike conventional galvanized iron (GI) ductwork that requires separate on-site insulation wrapping, this Polyurethane PID ductwork delivers prominent advantages as follows:
Energy Saving Performance
The rigid PU foam core features premium thermal insulation with a thermal conductivity of approximately 0.020 W/m·K. It effectively curtails heat loss and eliminates surface condensation on duct surfaces.
Ultra-Lightweight & Space Optimized
The panels are around 70% lighter than conventional metal ducts, greatly lowering structural load-bearing requirements for buildings. Its streamlined structure enables compact layout arrangements to conserve indoor usable space.
Rapid On-Site Assembly
Insulation is pre-integrated into the panel, forming an all-in-one installation solution without secondary insulation wrapping procedures. This can shorten overall construction time by up to 40%.
Excellent Air Tightness
Matching dedicated joint flanges and sealing adhesives deliver exceptional airtight performance, cutting air leakage rates and further elevating overall energy efficiency.
Sanitary & Long Service Life
The seamless smooth aluminum inner lining facilitates effortless cleaning and inhibits mold and bacterial proliferation, perfectly suited for hygiene-critical premises including hospitals, pharmaceutical workshops and food manufacturing plants.
Our Honor & certificate
Since its establishment in 2013, UNT has obtained 17 patents and earned numerous industry honors. We are also certified to the ISO 9001, ISO 14001, and ISO 45001 international management standards.
December 2020: Awarded the National High-Tech Enterprise Certificate and the Fujian Provincial High-Tech Enterprise Certificate
December 2023: Awarded the National High-Tech Enterprise Certificate and the Fujian Provincial High-Tech Enterprise Certificate
November 2024: Listed in the Fujian Provincial List of Specialized, Refined, Differentiated and Innovative Small and Medium-Sized Enterprises
Hot Tags: polyurethane pid ductwork, China, suppliers, manufacturers, factory, customized
