PIR pre-insulated Air Ductwork

PIR pre-insulated Air Ductwork is a modern, high-performance alternative to traditional sheet metal ductwork. It is a prefabricated, rigid panel system used to create efficient air distribution networks for heating, ventilation, and air conditioning (HVAC) systems.

What It Is and How It's Made?

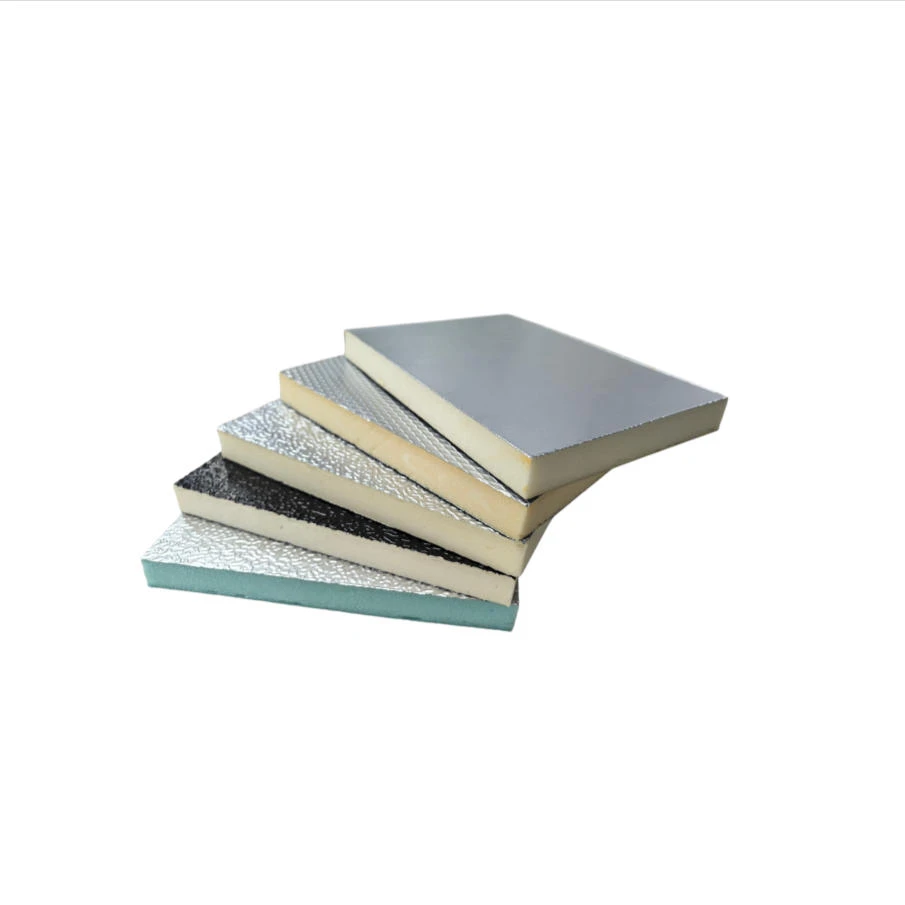

This duct is a pre-insulated sandwich panel. Its core is made of Polyisocyanurate (PIR) foam, a high-performance insulation material known for its excellent thermal properties and fire resistance. This core is permanently bonded on both sides to a protective layer of aluminum foil (or a thicker aluminum sheet for extra durability).

This design combines the structural duct, thermal insulation, and a vapor barrier into one lightweight board, simplifying the overall system. Standard technical specifications for these panels often include:

Core Density: ~53 kg/m³

Thermal Conductivity: ≤ 0.022 W/m·K (providing excellent insulation)

Standard Thickness: 10-42mm

Common Sizes: 1200mm width * 4000mm length

Fire Rating: Meets international standards like BS 476 Class 0 and ASTM E84 Class A due to the flame-retardant PIR core

Outstanding Thermal Insulation & Ultra Energy Saving of PIR pre-insulated Air Ductwork

Outstanding Thermal Insulation & Ultra Energy Saving is one advantage of PIR pre-insulated Air Ductwork.

Ultra-low thermal conductivity: only 0.018–0.022 W/(m·K), far better than glass wool, XPS and ordinary PU foam. A 20mm PIR panel delivers insulation equal to 50mm glass wool.

High closed-cell rate (>96%) eliminates thermal bridges, restricts heat gain/loss of conditioned air.

Cuts HVAC power consumption by 20–30%, greatly reduces long-term electricity operating costs for commercial buildings.

Integral one-piece insulation avoids extra wrapping work required for metal ducts.

How do PIR pre-insulated Air Ductwork reduce condensation risk and keep sustained energy efficiency?

PIR pre-insulated air ductwork greatly cut down condensation risks, benefiting from superior thermal insulation properties and airtight aluminium foil facings. Featuring ultra-low thermal conductivity, PIR foam keeps the outer duct surface temperature nearly consistent with the internal air temperature. This narrows the temperature gap between duct surfaces and ambient air, stopping the wall temperature from falling below the dew point, the primary trigger of condensation.

Furthermore, fully sealed aluminium foil barriers stop ambient moisture from seeping in, and accurately engineered joints eliminate air leakage. These dual features block humid air from touching the cold foam core, delivering extra protection against condensation.

Minimized condensation eliminates moisture buildup and mould proliferation, and prevents long-term deterioration of insulation performance. The duct system retains steady thermal resistance without extra heat loss stemming from damp or damaged insulation. Accordingly, the HVAC system maintains low energy consumption consistently, delivering reliable energy efficiency over its entire service lifespan.
