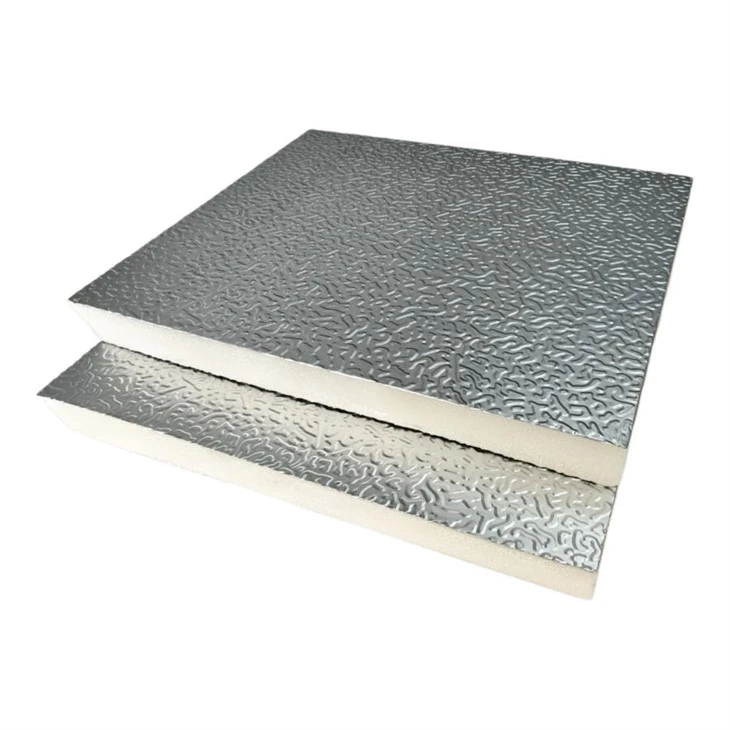

PIR Insulation Air Duct Panel

PIR Insulation Air Duct Panel are rigid thermal insulation boards specially engineered for HVAC air distribution systems. Functioning as pre-insulated duct panels, they are fabricated into lightweight, high-performance ductwork, serving as an alternative to conventional sheet metal ducts fitted with external insulation.

Core Material: Rigid polyisocyanurate (PIR) foam featuring a high closed-cell ratio (generally over 90%).

Facings: Both surfaces are laminated with reinforced aluminium foil, fiberglass scrim or other vapour retarder layers to deliver enhanced durability, thermal reflectivity and a smooth airflow surface.

Available Thickness: 10 mm, 20 mm, 25 mm, 30 mm, 40 mm

Key Features and Benefits of PIR Insulation Air Duct Panel

Here are the primary advantages that PIR Insulation Air Duct Panel brings to your projects:

Excellent Thermal Performance:

With a thermal conductivity around 0.02 W/m·K, the PIR core provides superior insulation that minimizes energy loss. This can contribute to lower lifecycle costs for building owners compared to poorly insulated metal ducts.

High Fire Safety:

The material is inherently fire-resistant. Many products meet the stringent 'Class 0' fire rating standard (BS 476 Part 6&7) and are formulated without CFCs or HCFCs, making them an environmentally responsible choice.

Lightweight and Durable:

PIR duct boards are significantly lighter than galvanized iron ductwork, reducing the load on building structures and making them easier to handle on-site. Despite being lightweight, they are robust, with a density around 50 kg/m³ and high compressive strength.

Faster Installation:

This is a key selling point for contractors. The system requires a "single fix installation process", which can dramatically speed up project timelines compared to the multi-step process of fabricating and insulating metal ducts.

Long Service Life:

The PIR foam core is closed-cell, which gives it very low water absorption (as low as 0.36%). This, combined with corrosion-resistant facings, contributes to a long service life of over 20 years and low maintenance costs.

Fire Resistance and Moisture Resistance of PIR Insulation Air Duct Panel

Fire Resistance Class: Euroclass B-s2,d0 (for some models C-s2,d0), non-flammable, low smoke, no dripping.

Combustion Characteristics: When exposed to fire, it chars but does not melt, the smoke is low in toxicity, and complies with EN 13501-1 and HVAC duct safety standards.

Application Safety: Suitable for densely populated places such as shopping malls, hospitals, and office buildings, and has passed FM and CE certifications.

Moisture Resistance and Durability
Absorption rate: ≤ 1% (long-term immersion), double-layer barrier of closed-cell + aluminum foil, completely vapor-proof (aluminum foil > 50 μm), eliminating condensation water and mold.

Corrosion resistance: Aluminum foil is resistant to oxidation and acid-base, PIR core is resistant to aging, with a service life of ≥ 20 years, maintenance-free, twice as long as traditional ducts in terms of lifespan.

Antibacterial: Smooth surface for easy cleaning, inhibits bacterial growth, suitable for scenarios with high hygiene requirements such as clean rooms and food factories.
