PI Duct Panel

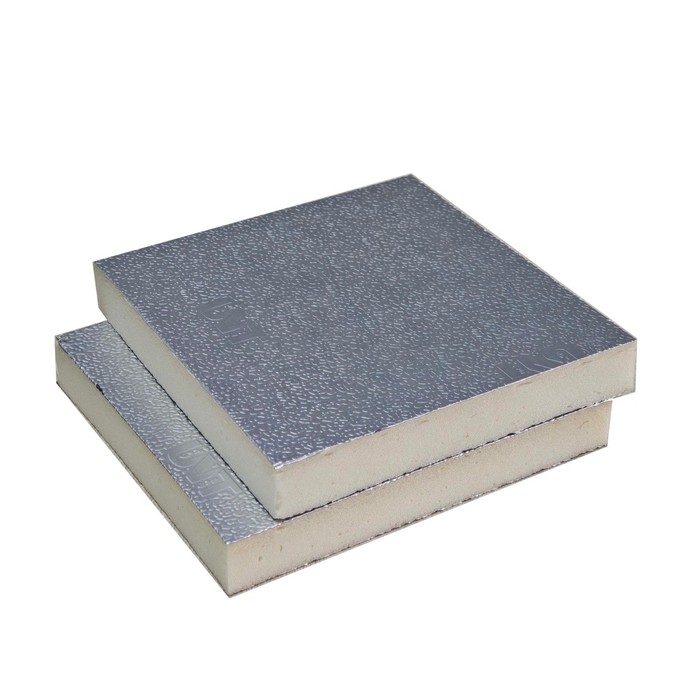

PI (Pre-insulated) Duct Panel is an integrated composite panel for HVAC duct systems, featuring a rigid closed-cell foam core (PIR/PU/Phenolic) faced with aluminum foil on both sides.
It combines structural support, thermal insulation, and airtightness in one unit, delivering ultra-low thermal conductivity (0.018–0.02 W/m·K), excellent fire resistance, and lightweight performance.
It enables fast on-site cutting and assembly, eliminates extra insulation wrapping, reduces air leakage, cuts energy loss, and shortens construction cycles, widely used in commercial, industrial, and residential ventilation projects.
Structure: Silver Aluminum/ PIR Foam/ Silver Aluminum
Size: 4000*1200*20mm
Foam Density: 50kg/m3
Aluminum Thickness: 0.06mm or 0.08mm
Aluminum Color: Silver
Packing: 10 sheets/ package
Loading Capacity: 710 sheets/ 40'HQ (packed with plastic bags)
660 sheets/ 40'HQ (packed with cardboard box)
Project Cases of PI Duct Panel
Construction and Installation of PI Duct Panel
Integrated design completely transforms the traditional "pipe manufacturing + insulation + protection" multi-process model.
On-site quick assembly: Direct cutting, bonding, and assembly can be carried out without welding or secondary insulation, reducing the construction period by more than 50%.
Strong adaptability: Easy to process irregular-shaped air ducts, suitable for complex machine rooms and ceiling spaces, reducing on-site renovation costs.
Low labor cost: Simplified processes and simple tools reduce reliance on professional technicians, making it suitable for projects with tight schedules.
Quality controllable: Factory standard production avoids insulation cracking and detachment on-site, resulting in higher system stability.
Competitive Weaknesses and Improvement Directions of PI Duct Panel
Weaknesses: Poor resistance to sharp impacts, prone to aging without protective coverings in open areas; Insufficient rigidity of large-sized high-pressure ducts; Some projects still prefer traditional materials for acceptance.
Improvement Directions: Increase the thickness of aluminum foil and enhance the composite strength; Develop outdoor-specific weather-resistant coatings; Optimize the rigidity of the plates to match the high-pressure system; Strengthen standard promotion and case demonstrations.
Technology upgrades: Flame-retardant, antibacterial, and ultra-low thermal conductivity modified core materials continue to be refined, leading to further improvement in product performance.
Market expansion: The popularity of prefabricated buildings has led to the integration of prefabricated ducts as the mainstream in the industry, with a vast market potential.
