What are Aluminum Profiles for Pre-insulated Duct?
are specialized aluminum components designed to enhance the structural integrity, connection reliability, and long-term performance of pre-insulated duct systems in HVAC (Heating, Ventilation, and Air Conditioning) applications. Here's a detailed breakdown of their functions, types, and applications:
1. Core Functions
Connection Interface:
Act as joining components for secure, airtight assembly of duct sections. They enable fasteners (e.g., screws, rivets) or interlocking designs (e.g., tongue-and-groove) to create leak-proof connections.
Structural Reinforcement:
Aluminum Profiles provide rigidity to pre-insulated duct panels, enabling them to withstand air pressure, installation stresses, and vibrations without deformation. This is critical for maintaining duct shape and preventing leaks.
2. Common Types of Aluminum Profiles
Invisible Flange Joint:
A seamless connection method where flanges are hidden within the duct assembly, providing a clean aesthetic while maintaining structural strength.
"F" Section Bar:
Used for creating rigid corners or transitions in ductwork, ensuring smooth airflow and minimizing pressure drops.

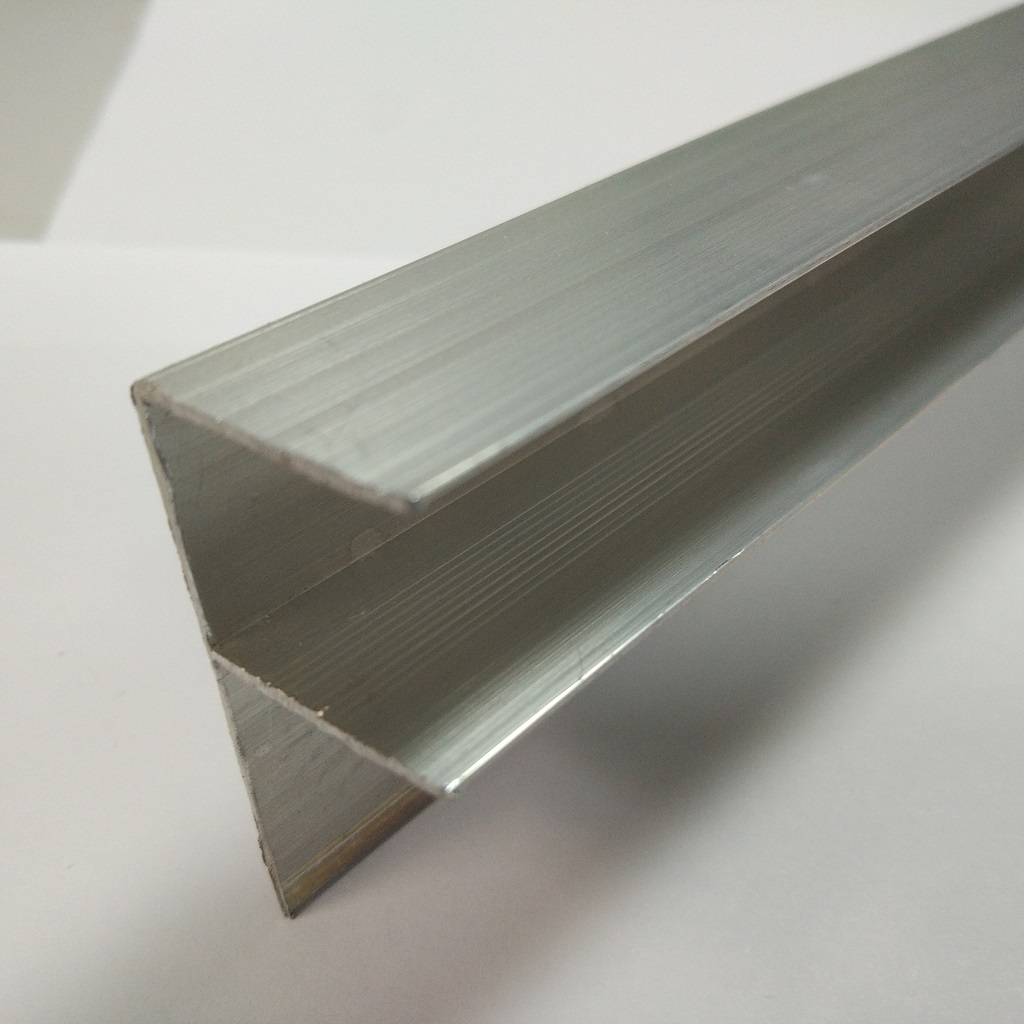

"H" Section Bar (Chair "H" Profile):
Designed for joining straight duct sections, offering high load-bearing capacity and resistance to bending.
"U" Section Bar:
Provides lateral support and edge protection for duct panels, often used in rectangular or square duct systems.
Reinforcement Section Bar:
Adds extra strength to duct sections under high pressure or in large-scale installations, preventing sagging or collapse.
Common Types of Aluminum Profiles for Pre-insulated duct
Invisible Flange Joint
"F" Section Bar
Chair Section Bar
"U" Section Bar
Reinforcement Bar
3. Key Specifications
Material: High-grade aluminum (e.g., 6063-T5) for corrosion resistance, lightweight properties, and ease of fabrication.
Thickness: Typically ranges from 0.8mm to 2.0mm, depending on the application's pressure and load requirements.
Length: Standard lengths are 4 meters per piece, but custom lengths are available for specific projects.
Surface Treatment: Anodized or powder-coated finishes for enhanced durability and aesthetic appeal.
