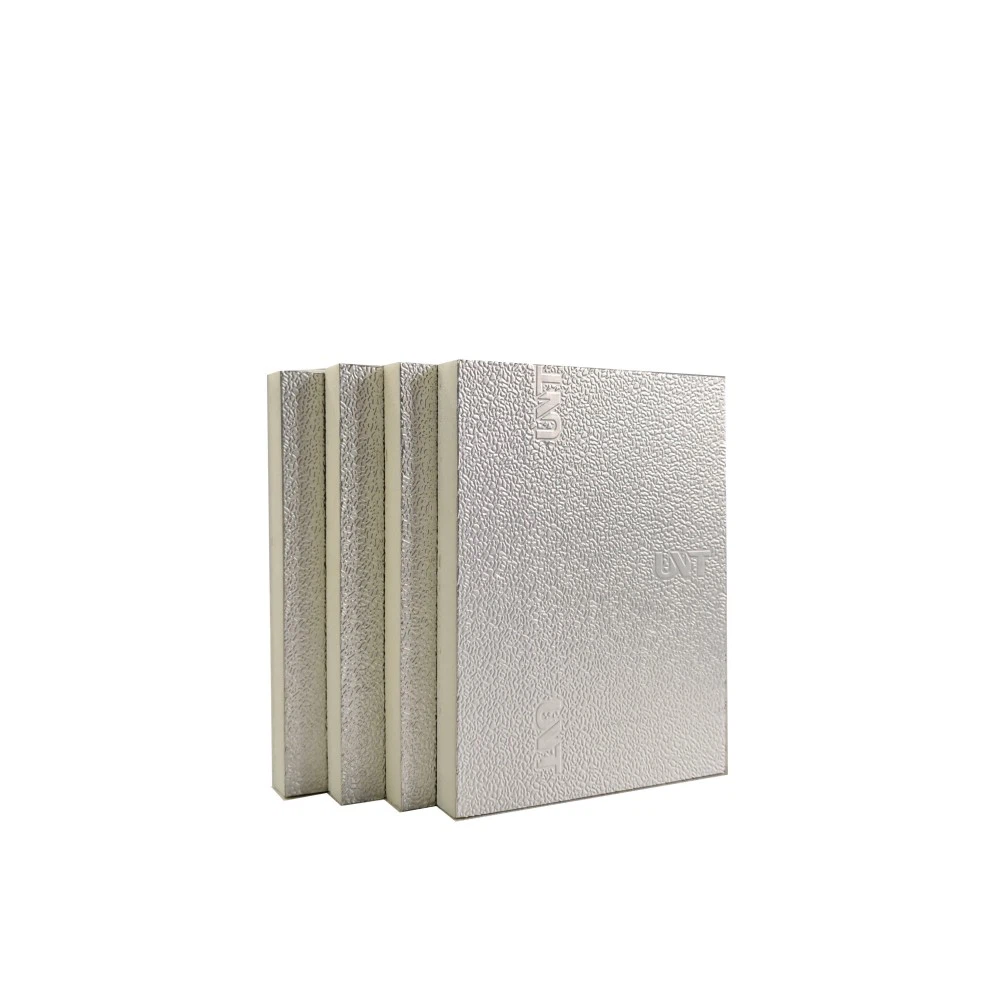

Polyurethane Duct Foam Panel is a kind of high-performance multi-functional board and plays an important role in many fields.
1. Structural Analysis

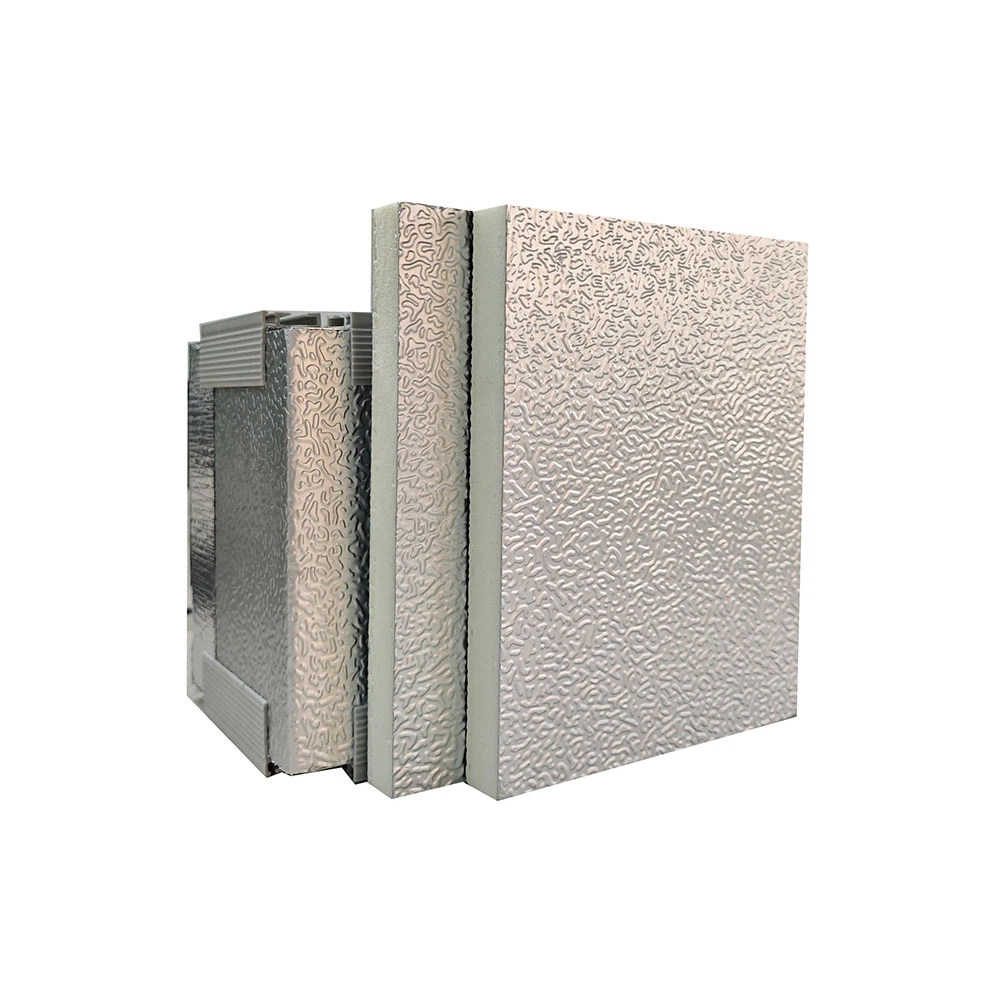

Polyurethane pipe foam boards are usually composed of an inner layer, a middle layer and an outer layer.
The inner layer often uses color steel plates (galvanized steel plates + baked paint coating) or stainless steel plates as the load-bearing layer of the air duct to ensure the strength and sealing of the air duct, provide a smooth inner surface, and reduce the resistance of air flow.
The middle layer is a polyurethane foam plastic insulation layer, which is the core advantage part. Its extremely low thermal conductivity (usually between 0.018 and 0.022W/(m · K)) endows the board with outstanding insulation performance.
The outer layer is also made of color steel plate or stainless steel plate, protecting the internal insulation layer from mechanical damage, ultraviolet radiation (if exposed) and moisture erosion. These three layers of materials are closely combined through a continuous production line in the factory using high-pressure foaming technology to form a composite board with strong integrity.
2. Performance Advantages
Outstanding thermal insulation performance: The low thermal conductivity of polyurethane foam effectively prevents heat transfer. In the building air conditioning duct system, energy consumption can be significantly reduced.
Good mechanical properties: It has a certain compressive strength, can withstand a certain pressure without excessive deformation, and is suitable for scenarios such as building roof or floor insulation where there are requirements for the load-bearing capacity of the board.
Outstanding waterproof performance: The closed-cell rate can reach over 90%, making it difficult for water to enter the interior of the board. It has prominent advantages in humid environments such as basements and bathrooms.
3. Processing Characteristics
Easy to cut: It can be easily cut with common tools such as saws and knives, and the size and shape can be flexibly adjusted according to different application requirements.
Excellent adhesion: It has good adhesion to various building materials such as concrete, wood and metal, and can firmly adhere to the building insulation system, ensuring long-term stable insulation effect.
4. Environmental Protection Considerations
Polyurethane pipe foam boards can be recycled and reused after being discarded, reducing resource waste and environmental pollution. They comply with relevant national environmental protection standards and are an ideal choice for green building energy-saving materials. In the current pursuit of sustainable development, this feature makes it have greater application potential in various projects.
5. Application Fields
In the field of architecture: Widely used for thermal insulation and heat preservation of building exterior walls, roofs and floors, enhancing the energy-saving performance and comfort of buildings. It is also an excellent choice for insulation of air conditioning pipes, hot water pipes, etc., improving energy utilization efficiency.
Cold chain industry: It is suitable for insulation of cold storage walls, floors and doors. Its excellent cold resistance and insulation effect ensure the stability of temperature inside the cold storage and reduce the loss of cold capacity.
In the industrial field: It can be used for insulation and support of industrial equipment. For instance, in places where structural strength is required, high-density polyurethane foam boards can play a significant role.
