PU Pre-insulated HVAC Duct Boards

Thanks to its excellent products and quality services, UNT Duct is one of the leading pu pre-insulated hvac duct boards manufacturers and suppliers in China. Welcome to buy the high quality and customized products from our factory. We will offer you the best service and fast delivery.

Aluminium Faced PU HVAC Duct is a modern, pre-insulated ductwork system used for heating, ventilation, and air conditioning.



What is it Made Of?

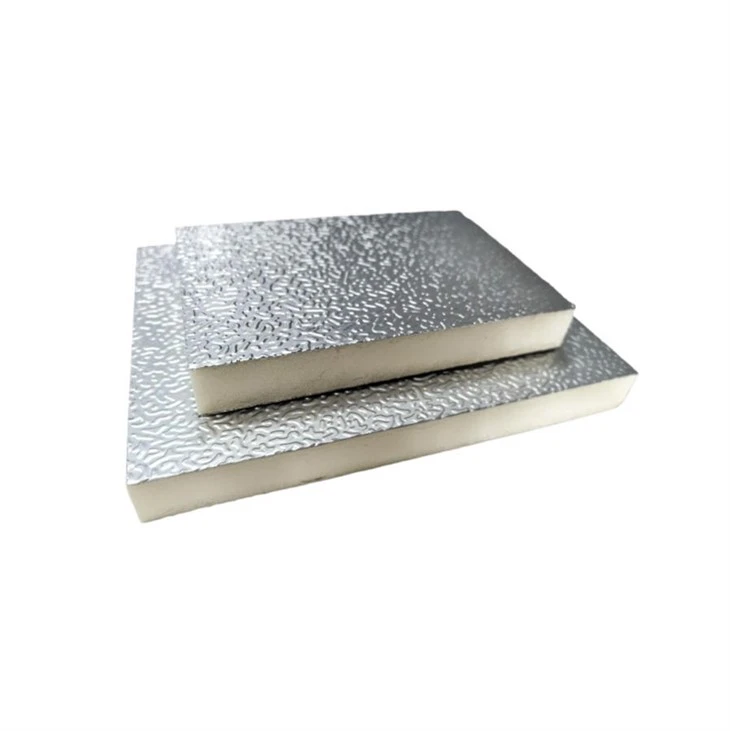

This duct is a sandwich panel with three key layers:



Aluminum Facings:Both inner and outer sides are clad with aluminum foil or aluminum sheet, delivering a smooth, clean and anti-corrosion surface. Standard indoor aluminum foil measures 60–80 microns. For harsh working conditions or outdoor use, thicker aluminum panels or extra protective coatings can be adopted.



Polyurethane (PU) Foam Core: The middle rigid polyurethane foam core functions as the core thermal insulation layer. Thanks to its closed-cell structure, the duct panel gains excellent waterproof capability and effective sound insulation.



Environmentally Friendly Foam: The polyurethane foam contains no CFCs or HCFCs that damage the ozone layer, achieving eco-friendly production.

Compared to traditional galvanized iron (GI) sheet metal ducts, which need separate insulation, PU Pre-insulated HVAC Duct boards offers several compelling benefits:

High Energy Efficiency

With a PU foam core thermal conductivity of roughly 0.020 W/m·K, outstanding thermal insulation cuts energy waste and stops duct surface condensation.

Lightweight & Space Saving

Around 70% lighter than standard metal ducts, it lessens loads on building structures. Its compact design also saves valuable installation space.

Quick Installation

Built-in integrated insulation removes the extra insulation wrapping step, a one-step mounting system that speeds up construction by as much as 40%.

Reliable Air Tightness

Special flanges and matched sealants ensure tight joints with minimal air leakage, boosting energy efficiency further.

Hygienic & Long-Lasting

Smooth internal aluminum surface is easy to wipe clean and suppresses bacteria growth, ideal for hospitals, pharmaceutical factories and food production facilities.

Fully covered with double-sided aluminum foil, the PU Pre-insulated HVAC Duct boards creates a complete moisture barrier to stop condensation and water drips in humid environments like underground garages, supermarkets and swimming pools.







The chemically stable foam core reaches Grade 0 mold resistance with a 99.5% antibacterial rate. No loose fibers will flake off to contaminate air streams, so it fits clean ventilation systems in hospital ORs, pharmaceutical workshops, food factories and data centers.







Built-in composite sound absorption design lowers duct airflow noise by 30–40 decibels without extra silencers. Indoor air supply noise is further minimized, perfectly matching quiet-environment demands for hotels, office buildings and shopping centers.

.
