Pre-insulated Rigid foam Ductwork

Pre-insulated Rigid foam Ductwork is integrated pre-insulated panel with double-side aluminum foil & closed-cell PUR foam core. Its thermal conductivity reaches 0.02W/(m・K), lightweight, fast-installed, energy-saving, widely used in commercial & industrial HVAC ventilation systems.

Structure: Silver Aluminum/ PU Foam/ Silver Aluminum
Size: 3950*1200*20mm
Foam Density: 40-45kg/m3
Aluminum Thickness: 0.06mm or 0.08mm
Aluminum Color: Silver
Packing: 10 sheets/ package
Loading Capacity: 710 sheets/ 40'HQ (packed with plastic bags)
660 sheets/ 40'HQ (packed with cardboard box)

Product Structure and Basic Physical Parameters of Pre-insulated Rigid foam Ductwork

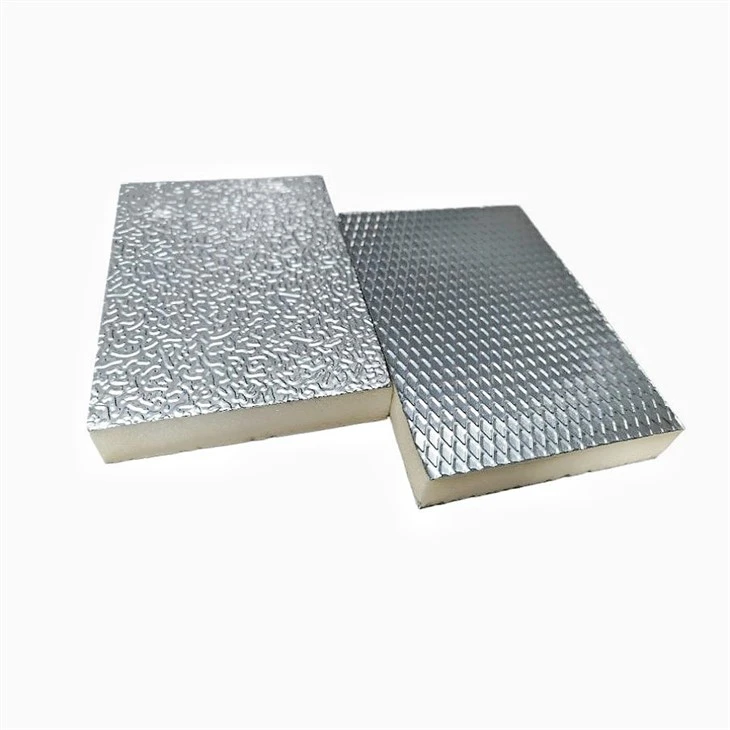

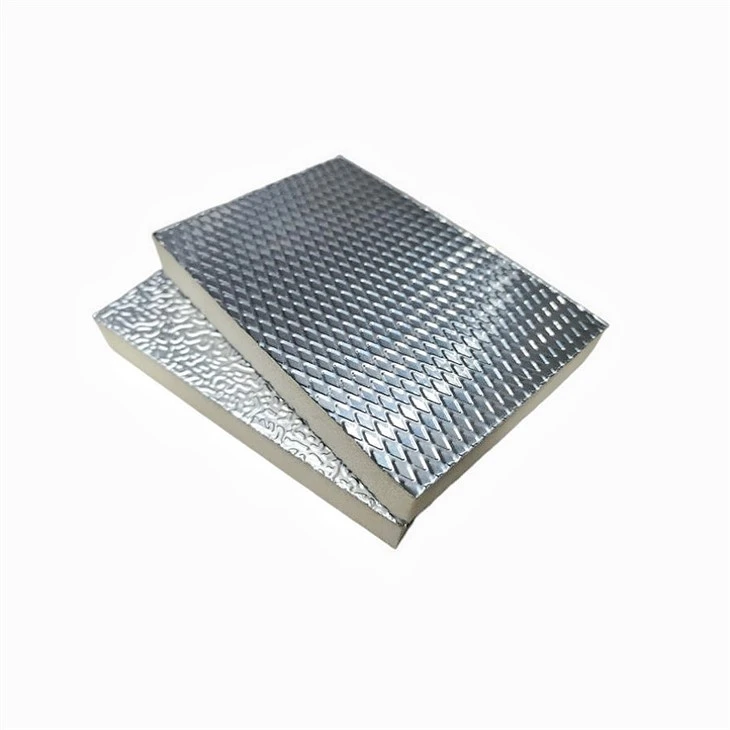

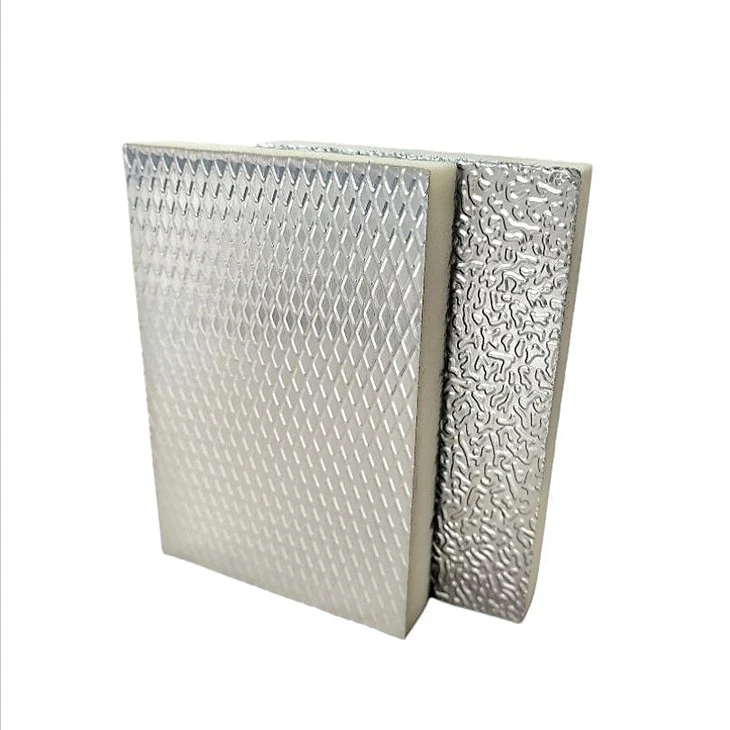

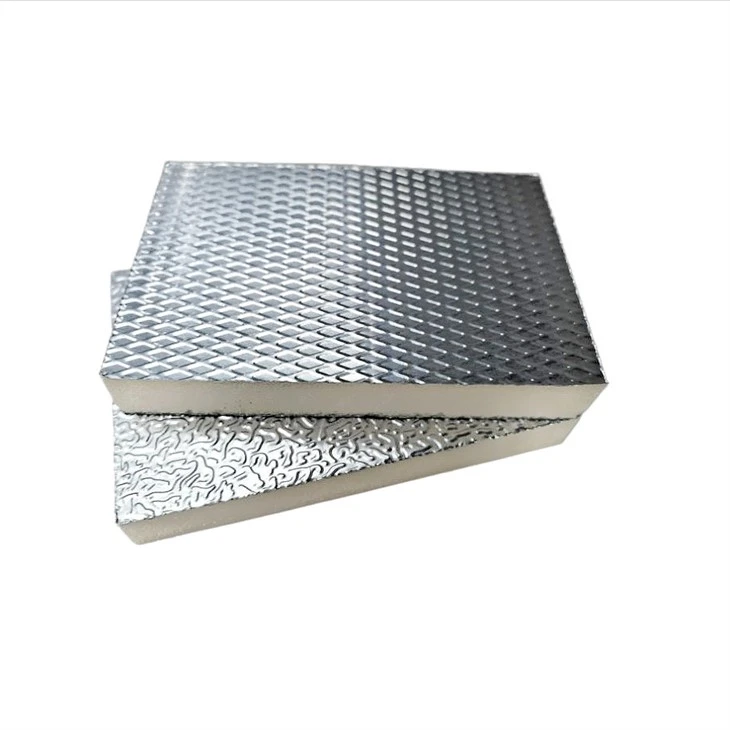

This product adopts a premium sandwich-style integrated core panel structure. It features a core of high-density rigid PUR closed-cell polyurethane foam, clad with embossed aluminum foil protective layers on both sides. The panel delivers excellent structural integrity with no delamination risks and zero cold bridge formation.

The standard core specifications are detailed as follows:

Standard Dimensions: 2900/3950 × 1200mm; conventional thickness options: 10/20/25/30/40mm

Mechanical Properties: Compressive strength of 0.25MPa, flexural strength of 2MPa, and a dimensional change rate of merely 0.3%

Thanks to the integral one-piece molding process, this panel completely eliminates the multi-layer gaps commonly found in traditional iron sheet air ducts with on-site wrapped insulation. Finished with integrated structural and thermal insulation functions in factory production, the panel boasts far superior substrate stability compared to conventional solutions that rely on secondary on-site insulation wrapping.

Lightweight and Structural of Pre-insulated Rigid foam Ductwork

The Pre-insulated Rigid foam Ductwork features an ultra-lightweight design, with its overall weight merely accounting for 28% of galvanized iron sheet ducts of the same specification, achieving a 72% weight reduction. Such outstanding lightweight performance brings prominent advantages in two major application scenarios:

High-rise Building Applications: It effectively lowers the load borne by floor slabs and ceiling joists. No additional steel structure reinforcement is required, cutting the civil engineering and renovation construction costs by 15%.

Renovation & Retrofit Projects: For scenarios where the original ceiling structure cannot support extra load, the panel can directly replace traditional old iron sheet ducts without large-scale ceiling demolition and reconstruction, greatly simplifying the renovation process.

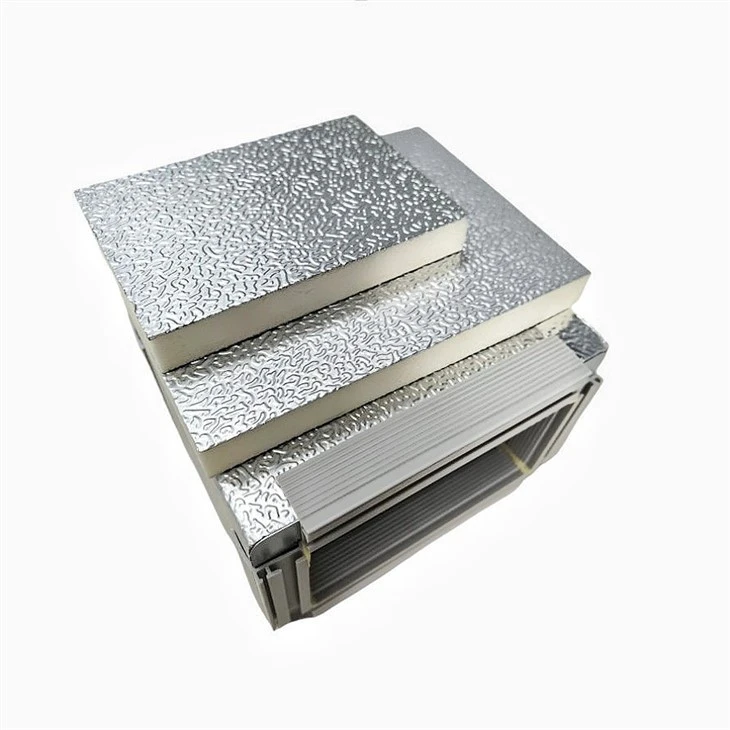

The Pre-insulated Rigid foam Ductwork itself delivers reliable compression and bending resistance. After being fabricated into finished air ducts, it can withstand wind speeds ranging from 13 to 20m/s. Capable of meeting the high-air-volume ventilation demands of shopping malls, industrial factories, data centers and other large venues, the ductwork maintains stable performance and is resistant to deformation, bulging and other structural defects.
