Introduction of Rigid PIR Pre-Insulated Ductwork

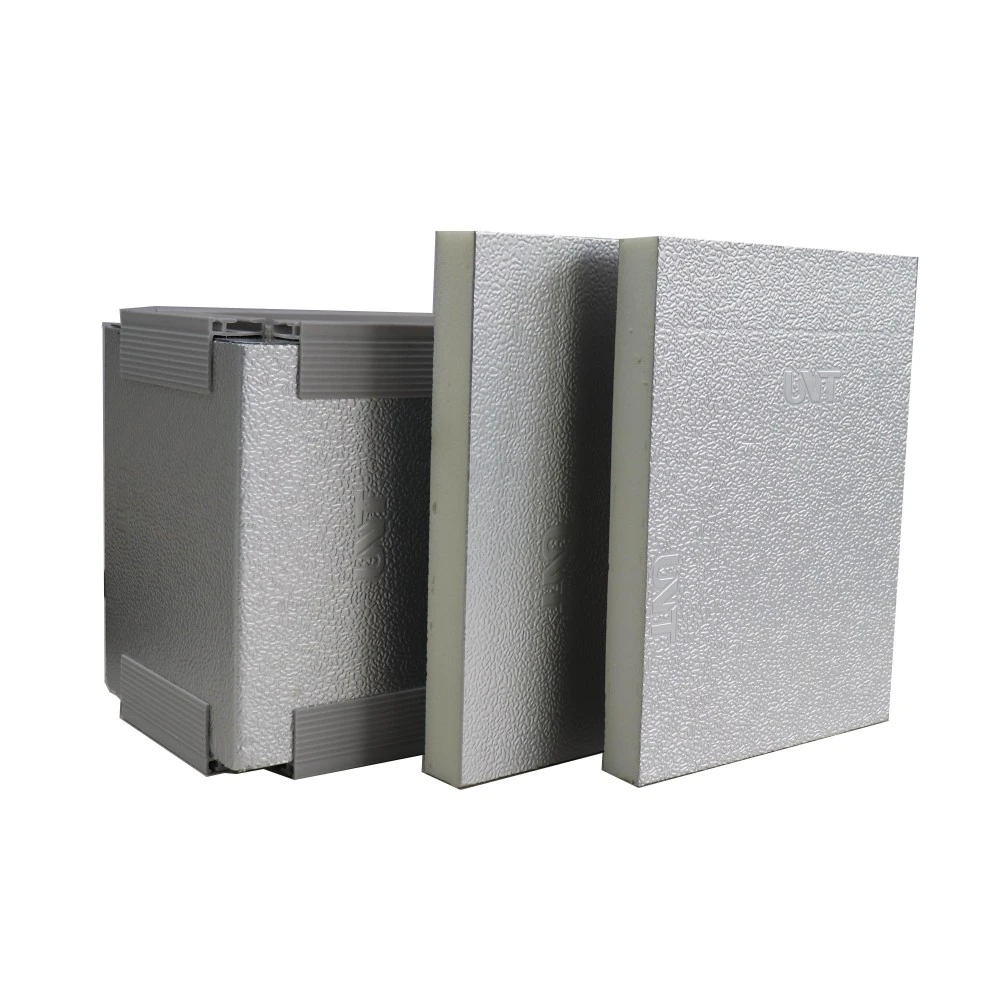

Rigid PIR Pre-Insulated Ductwork

is a high-performance, factory-assembled HVAC component engineered to optimize air distribution efficiency, durability, and safety for heating, ventilation, and air conditioning (HVAC) systems. Unlike traditional "metal duct + separate insulation" setups, it integrates structural rigidity, thermal insulation, and protective barriers into a single, ready-to-install solution-making it a preferred choice for commercial, industrial, and institutional projects.

Panel Structure: Silver Alu. Foil/ PIR Foam/ Silver Alu. Foil
Foam Density: 52kg/CBM
Panel Dimension: 3950mm*1200mm*20mm
Alu. Foil: 60 or 80 Micron (Embossed)
Fire Rating: Class 0 (BS476Part 6&7)

Core Structure: Engineered for Performance

Rigid PIR Pre-Insulated Ductwork Structure

At its heart, Rigid PIR Pre-Insulated Ductwork follows a layered "sandwich" design, where each component serves a critical role in functionality:

A. Rigid PIR Foam Core (The Insulation Backbone)

The core is made of closed-cell polyisocyanurate (PIR) foam-a thermoset material formed by reacting polyols and isocyanates. Key characteristics of this core include:

Low Thermal Conductivity: Typically 0.022 W/m·K (far lower than fiberglass or mineral wool), delivering exceptional thermal resistance. This minimizes heat gain/loss in ducts, ensuring conditioned air (cooled or heated) reaches spaces efficiently.

Closed-Cell Structure: Traps air in tiny, sealed pockets-preventing moisture absorption (water absorption rate <1% by volume) and mold growth. This eliminates corrosion risks common in metal ducts with porous insulation.

Rigidity: Dense foam (density52 kg/m³) provides structural support, allowing the ductwork to resist sagging, punctures, or deformation during installation and long-term use.

B. Protective Facings (Barrier & Strength)

The PIR core is bonded to durable facings on both inner and outer surfaces, usually:

Aluminum Foil/Sheet: Most common-lightweight, corrosion-resistant, and acts as an air/vapor barrier (reducing duct leakage to ≤2%, per EN 1507 standards). Embossed aluminum enhances rigidity and prevents tearing.

Galvanized Steel: Used for heavy-duty applications (e.g., industrial settings) where extra impact resistance is needed.

Key Properties: Why It Outperforms Traditional Ductwork

Rigid PIR Pre-Insulated Ductwork's design gives it distinct advantages over conventional metal ducts with separate insulation:

A. Superior Energy Efficiency

Its low thermal conductivity cuts energy loss by 20–30% compared to traditional systems. For example, in a commercial office, this translates to 15–25% lower HVAC utility bills annually-critical for meeting green building standards (LEED, BREEAM) or energy codes (ASHRAE 90.1).

B. Fire Safety Compliance

PIR foam is inherently fire-retardant, meeting global safety standards:

Class 0 (BS 476 Part 6/7): Low flame spread and smoke production.

Class B1 (GB 8624): Self-extinguishing when the ignition source is removed, forming a char layer that blocks flame penetration.

This eliminates the fire risks of fiberglass insulation (which melts and releases toxic smoke) or uninsulated metal ducts (which conduct heat).

C. Airtightness & Durability

Airtight Seams: Factory-machined tongue-and-groove joints (or flange connections) create a tight seal, reducing air leakage- a major cause of HVAC inefficiency.

Long Lifespan: Resists corrosion, mold, and UV damage (with optional UV coatings for outdoor use). Expected service life is 20–30 years, vs. 15–20 years for traditional ducts.

D. Lightweight & Easy Installation

Weighing 70–80% less than insulated metal ducts (typically 2–4 kg/m² vs. 8–12 kg/m²), it requires no heavy lifting equipment. It cuts easily with standard tools (circular saw, utility knife) and assembles quickly-reducing installation time by 40–60% and labor costs.

In summary, Rigid PIR Pre-Insulated Ductwork is a future-proof HVAC solution-combining energy efficiency, safety, and ease of use to deliver long-term value for building owners and contractors alike.
