Pre-Insulated PIR Duct Panel Foam Insulation Materials For Air Duct System

Pre-Insulated PIR Duct Panel Foam Insulation Materials are specialized, all-in-one solutions engineered for air duct systems, designed to optimize thermal efficiency, safety, and ease of use. At their core lies closed-cell polyisocyanurate (PIR) foam-a high-performance insulation material-sandwiched between protective facings (typically aluminum foil/sheet or galvanized steel), forming a rigid, ready-to-install panel for heating, ventilation, and air conditioning (HVAC) ductwork.

The PIR foam core is the standout feature: with ultra-low thermal conductivity (0.020–0.024 W/m·K) and high R-value (R-5 to R-8 per inch), it minimizes heat gain/loss in ducts, ensuring conditioned air (cooled or heated) retains its temperature, cutting HVAC energy consumption by 20–30%. Its closed-cell structure also repels moisture (water absorption <1% by volume), preventing mold growth and corrosion-common issues with porous insulations like fiberglass.

Paired with durable facings, the panels offer airtightness (leakage ≤2% per EN 1507) via precision tongue-and-groove joints, avoiding air waste. They're lightweight (2–4 kg/m², 70% lighter than insulated metal ducts) for easy installation, rigid enough to resist sagging, and fire-retardant (Class 0/B1 rating), forming a char layer to block flames and reduce toxic smoke.

Suitable for commercial buildings, hospitals, high-speed trains, and cleanrooms, these materials blend efficiency, durability, and sustainability (CFC/HCFC-free foam, recyclable facings)-making them a top choice for modern, energy-saving air duct systems.

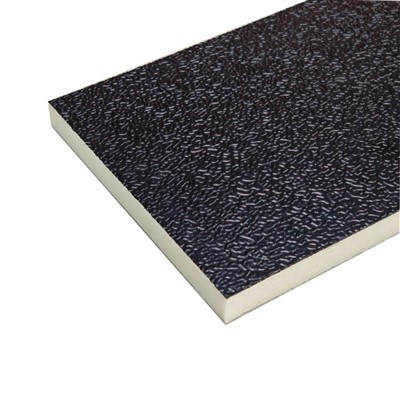

Pre-Insulated PIR Duct Panel

Panel Structure: Silver Alu. Foil / PU Foam / Silver Alu. Foil

Foam Density: 52kg/m3

Panel Dimension: 3950mm*1200mm*20mm

Alu. Foil:  60 or 80 Micron (Embossed)



Choosing Pre-Insulated PIR Duct Panel Foam Insulation Materials for air duct systems boils down to their unmatched ability to solve key HVAC pain points-from energy waste to installation inefficiencies-while meeting safety, durability, and sustainability needs. Below are the core reasons they stand out:

Choosing Pre-Insulated PIR Duct Panel Foam Insulation Materials for air duct systems is driven by their ability to address core HVAC challenges-energy waste, installation hurdles, safety risks, and long-term costs-while aligning with modern efficiency and sustainability needs. Here's why they're the top choice:

1. Exceptional Thermal Efficiency Cuts Energy Bills

The closed-cell PIR foam core boasts ultra-low thermal conductivity (0.020 W/m·K) and high R-value (R-5 to R-8 per inch), outperforming fiberglass or mineral wool. It locks in conditioned air (cooled/heated), slashing HVAC energy use by 20–30%-a major win for commercial buildings, trains, or facilities aiming to reduce utility costs.

2. Slim, Lightweight Design Fits Tight Spaces

Unlike bulky "metal duct + separate insulation" setups, these all-in-one panels (PIR core + aluminum/steel facings) are slim (10–20mm thick) and lightweight (2–4 kg/m², 70% lighter than insulated metal ducts). They easily fit in confined areas-ceiling cavities, train interiors, retrofits-without wasting space, simplifying installation in space-constrained projects.

3. Fire Safety Meets Strict Standards

PIR foam is inherently fire-retardant, complying with global safety codes (Class 0 per BS 476, Class B1 per GB 8624). It self-extinguishes, forms a flame-blocking char layer, and emits minimal toxic smoke-critical for public spaces (hospitals, malls) or transport (bullet trains) where fire safety is non-negotiable.

4. Durability & Low Upkeep Reduce Lifecycle Costs

Moisture & Corrosion Resistance: Closed-cell PIR absorbs <1% water (preventing mold), while aluminum/steel facings resist rust-even in humid environments.

Long Lifespan: 20–30 years of reliable use (vs. 15–20 years for traditional ducts) with no re-insulation, repainting, or rust repairs-saving maintenance budgets long-term.

5. Airtight & Hygienic Boosts Performance & Air Quality

Minimal Leakage: Precision tongue-and-groove joints keep air leakage ≤2% (per EN 1507), far less than the 5–10% leakage of poorly sealed metal ducts-maintaining consistent temperatures and system efficiency.

Hygienic Surfaces: Non-porous aluminum/FRP facings block bacteria/dirt buildup, meeting standards for hospitals, cleanrooms, or food facilities and improving indoor air quality (IAQ).

6. Eco-Friendly Aligns with Green Goals

These panels use CFC/HCFC-free foam (no ozone damage) and recyclable materials (aluminum, PIR). Their energy efficiency also lowers carbon footprints, helping projects earn LEED/BREEAM certifications-perfect for eco-conscious builds.
