Thanks to its excellent products and quality services, UNT Duct is one of the leading pir pre-insulated duct system manufacturers and suppliers in China. Welcome to buy the high quality and customized products from our factory. We will offer you the best service and fast delivery.

PIR Pre-insulated Duct System

PIR pre-insulated duct system is a modern type of HVAC (Heating, Ventilation, and Air Conditioning) ductwork designed to efficiently transport conditioned air throughout a building. Its core feature is that the insulation is built into the duct's structure, eliminating the need to add it later.

What is it Made Of?

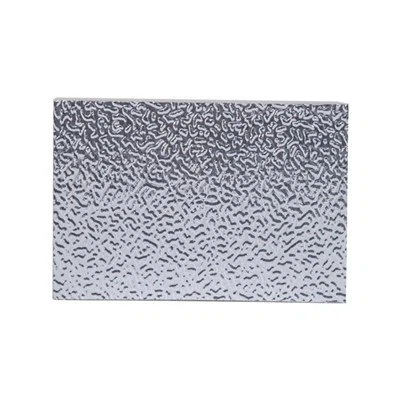

The system is built from composite panels with a sandwich structure:

Core (The Insulator): A rigid foam made of Polyisocyanurate (PIR). This foam is known for its excellent thermal properties and is often manufactured with environmentally friendly blowing agents that do not harm the ozone layer.

Facings (The Protective Layers): Both sides of the foam core are bonded to a protective layer, most commonly aluminum foil. For added durability, especially in outdoor applications, the facing can be a thicker aluminum sheet or pre-painted galvanized steel.

Why Choose PIR Ducts? Key Properties & Benefits of PIR Pre-insulated Duct System

Superior Thermal Insulation:

The PIR foam core has a very low thermal conductivity (approx. 0.022W/m·K), which is significantly better than traditional materials. This means it minimizes heat gain or loss from the air inside the duct, leading to substantial energy savings.

Lightweight and Slim:

These ducts are about 1/5th the weight of traditional sheet metal (galvanized iron) ducts. Because the insulation is built-in, the overall system is slimmer and requires less support structure, making it easier to handle and install.

Fire Safety:

High-quality PIR panels are manufactured to be fire-retardant. They can meet rigorous fire safety standards such as Class 0 (BS 476) and are designed to produce low smoke and toxic fumes.

Condensation Control:

The closed-cell structure of the PIR foam and the vapor-tight aluminum facings prevent moisture from penetrating the duct. This stops condensation (sweating) from forming on the duct surface, preventing water damage and mold growth.

Quiet Operation:

The dense foam core effectively dampens vibrations from HVAC equipment, resulting in much quieter operation compared to hollow metal ducts
