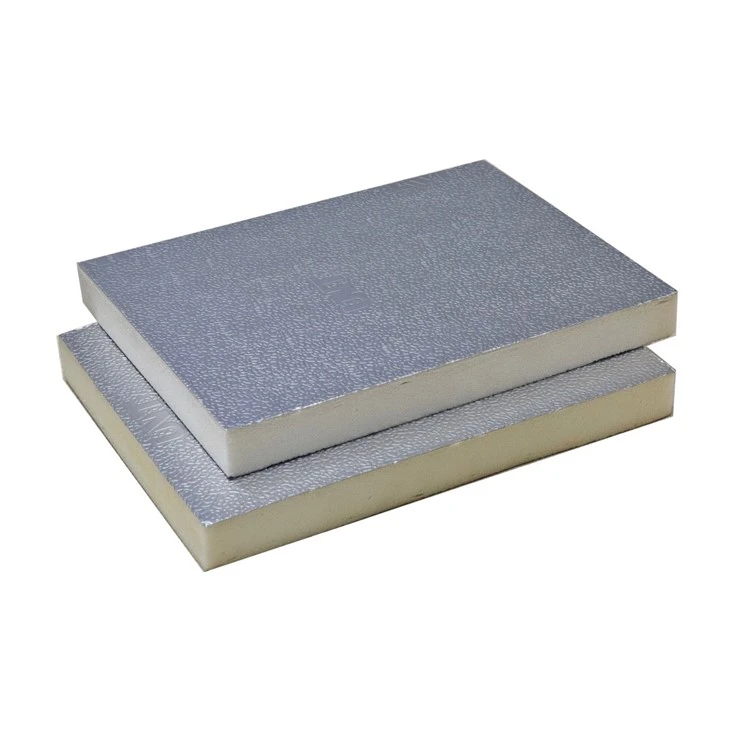

PIR Aluminum Duct Sheet

PIR Aluminum Duct Sheet (also known as PIR pre-insulated duct panel) is a high-performance, sandwich-type material specifically engineered for Heating, Ventilation, and Air Conditioning (HVAC) ductwork.

Composition & Structure

As the name suggests, it is a composite material consisting of two distinct layers bonded together:

Core Layer: A rigid foam made of Polyisocyanurate (PIR). This is a thermoset plastic that provides the primary insulation.

Facing Layers: Both sides of the foam core are laminated with aluminum foil. The thickness of the aluminum can vary (standard is 60 or 80 microns, but 200-micron sheets are available for higher durability).

Regular Dimension: 3950*1200*20mm
Packing: 10 sheets/ package
Loading: 660 sheets/ 40'HQ packed with paper carton

710 sheets/ 40'HQ packed with plastic bag

Key Properties & Advantages of PIR Aluminum Duct Sheet

PIR duct sheets offer the following performance metrics:

Thermal Conductivity: Excellent insulating properties, typically around 0.022 W/m·K . This allows for significant energy savings in air conditioning systems.

Fire Performance: Rated Class 0 or M1 (depending on the certification standard), indicating a high level of fire resistance and low smoke emission .

Thickness Range: Available in various thicknesses to suit different application requirements, typically from 10mm to 40mm .

Standard Dimensions: Common board sizes are 3950mm x 1200mm or 2950mm x 1200mm .

Operating Temperature: Designed to withstand temperatures ranging from approximately -30°C up to +80°C .

Density: The PIR foam core generally has a density of around 52 kg/m³

Advantages over Traditional Metal Ducts
Compared to traditional galvanized iron (GI) sheet metal ducts, PIR duct sheets offer several distinct benefits:

Lightweight: Significantly reduces the load on building structures and makes transportation and handling easier .

High Thermal Efficiency: The pre-insulated nature eliminates the need for separate external insulation installation, reducing thermal bridging .

Single Installation Process: The duct fabrication and insulation are completed in one step, speeding up installation time .

Durability: The aluminum facing is corrosion-resistant and provides a robust, cleanable surface
