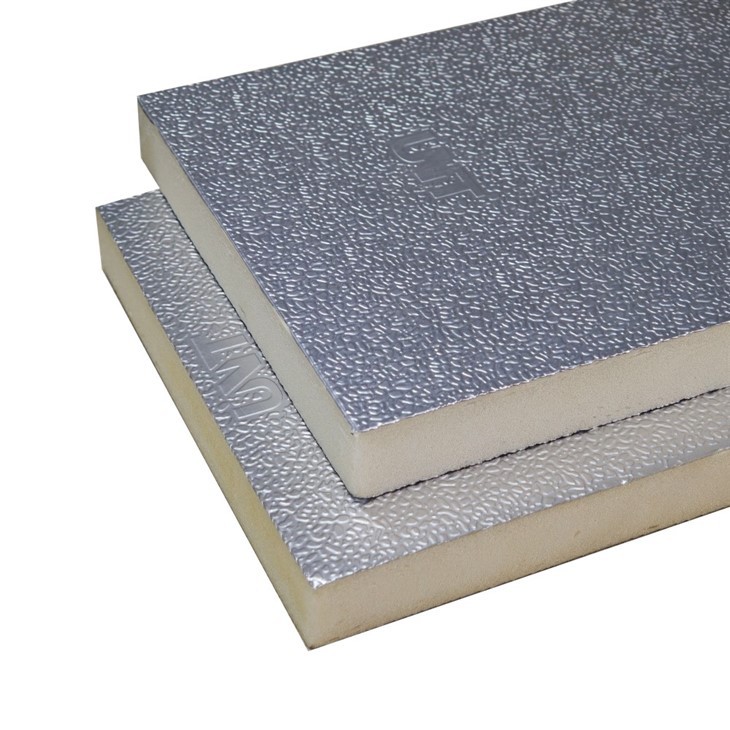

PIR ALU Pre-insulated Duct Board

PIR ALU pre-insulated duct board is a specialized material used to build HVAC (Heating, Ventilation, and Air Conditioning) air ducts. It's a high-performance alternative to traditional sheet metal ducts, designed to be lightweight, energy-efficient, and easy to install.

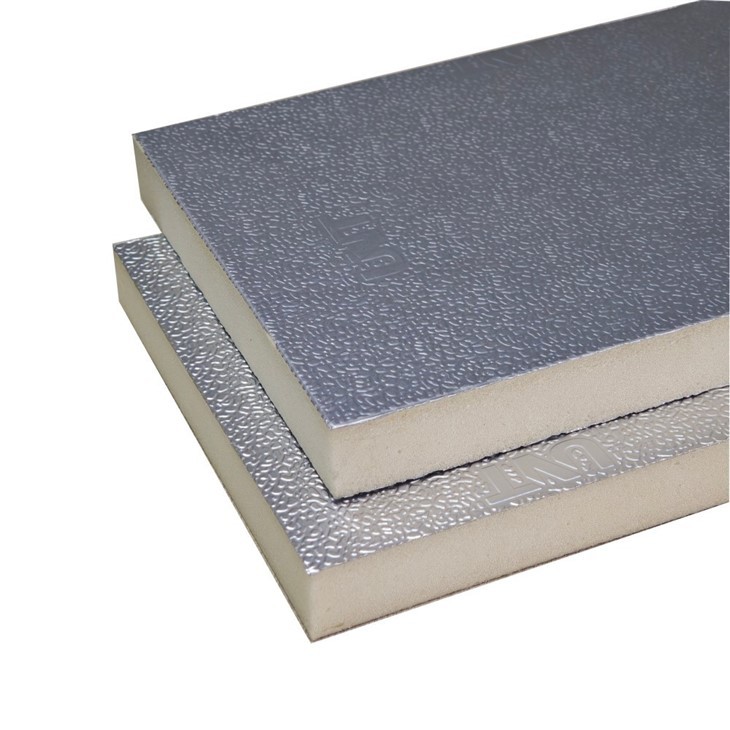

It's a sandwich panel with a rigid insulating core made of PIR (Polyisocyanurate) foam, a thermoset plastic known for its excellent fire resistance and thermal properties . This core is permanently bonded on both sides to aluminum foil, which acts as a protective, airtight, and vapor-resistant barrier.

Structure: Silver Aluminum/ PIR Foam/ Silver Aluminum
Size: 3950*1200*20mm
Foam Density: 53kg/m3
Aluminum Thickness: 0.06mm or 0.08mm
Aluminum Color: Silver
Packing: 10 sheets/ package
Loading Capacity: 710 sheets/ 40'HQ (packed with plastic bags)
660 sheets/ 40'HQ (packed with cardboard box)

Key Features and Benefits of PIR ALU Pre-insulated Duct Board

Energy Efficiency:

PIR foam has one of the lowest thermal conductivity ratings among insulation materials (typically 0.022 W/m·K) . This means it significantly reduces heat loss or gain as air travels through the ducts, leading to lower energy costs.

Fire Safety:

PIR foam is inherently fire-resistant. When exposed to flame, it chars rather than melting and dripping, which helps prevent the spread of fire. Many boards meet international standards like ASTM E84 Class A or BS476 Class 0.

Lightweight:

These boards are much lighter than traditional metal ducts (e.g., 1.3-1.4 kg/m² vs. 8.32 kg/m² for galvanized steel) . This reduces the load on a building's structure and makes handling, transport, and installation faster and easier.

Hygienic & Clean:

The inner aluminum surface is smooth, non-porous, and resistant to moisture and mold growth. It prevents the accumulation of dust and microorganisms, ensuring high indoor air quality. Some boards even have an antibacterial coating, making them suitable for hospitals and food processing plants.

Condensation Prevention:

The high thermal resistance of the PIR core prevents the outer surface of the duct from reaching the dew point, effectively eliminating condensation problems without needing additional insulation.

Air-Tightness:

The PIR-ALU structure, combined with specialized joining systems (like concealed flanges), creates ducts with exceptional air-tightness, often much higher than traditional screwed and sealed metal ducts.

How to make Air Ducts with PIR ALU Pre-insulated Duct Board

They are fabricated on-site or in a workshop using a specific set of tools:

Cutting & Grooving:

The panels are scored and cut using a specialized grooving tool. A "V" groove is cut on the back of the board, leaving the front aluminum intact, allowing it to be folded like cardboard.

Folding:

The board is folded along the groove to create the corners of the duct.

Joining:

Sections are joined using a concealed flange system made of aluminum or PVC profiles, creating a strong, airtight, and smooth joint without any exposed metal flanges inside the airstream.

Sealing:

All joints and seams are sealed with a specialized silicone sealant and reinforced with aluminum tape to ensure 100% air-tightness.
