PIR Air Duct Smooth Aluminum Panel
It is a high-performance ventilation duct product, which is widely used in HVAC systems. The following is a detailed introduction:

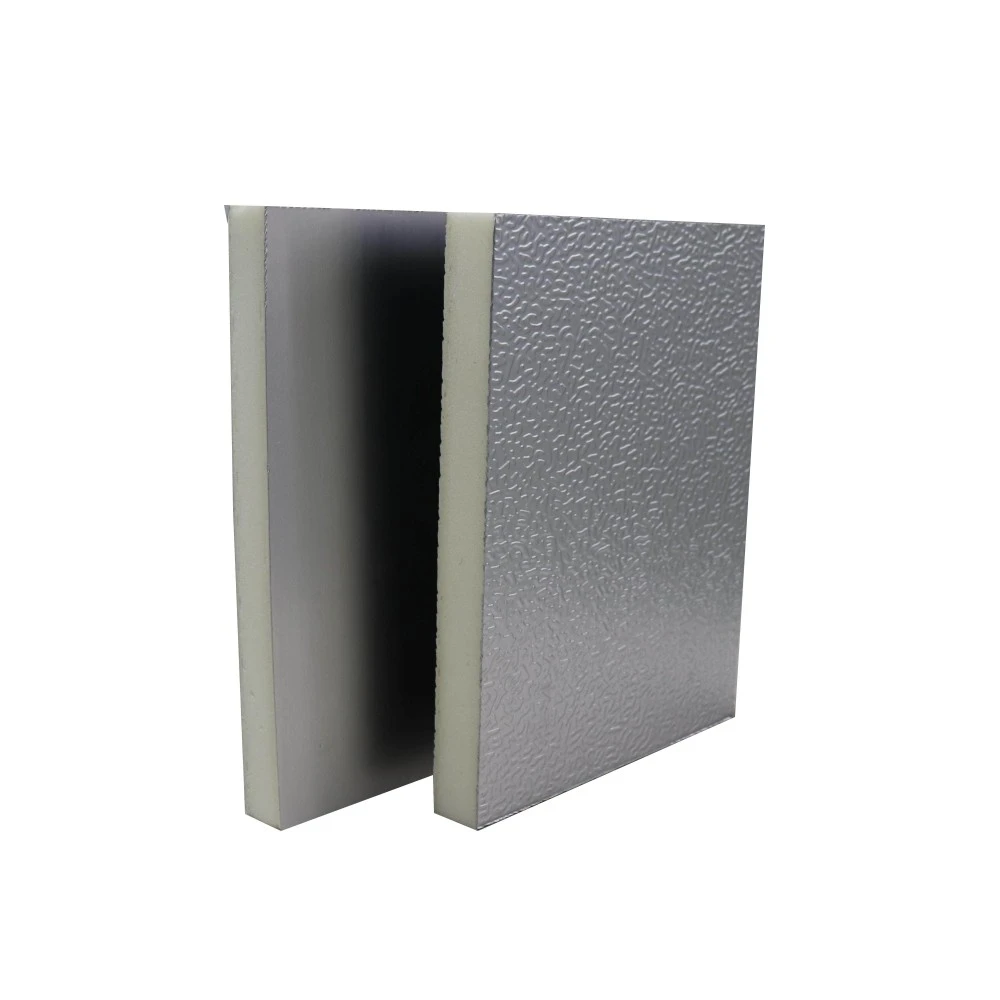

Basic Structure: It is a sandwich structured panel. The core is polyisocyanurate (PIR) foam, which is a closed-cell insulating material. The two outer layers are Smooth aluminum Foil and Embossed aluminum foils.
Panel Structure: Smooth Alu. Foil/ PIR Foam/ Embossed Alu. Foil
Foam Density: 50kg/CBM
Panel Dimension: 3950mm*1200mm*20mm
Alu. Foil: 60 or 80 Micron (Embossed)
Fire Rating: Class 0 (BS476Part 6&7) or Class A (ASTM E84)
Core performance characteristics of PIR Air Duct Smooth Aluminum Panel
Base material performance: PIR (polyisocyanurate) is a derivative of polyurethane, with a fire resistance rating of GB 8624-2012 B1 grade, an oxygen index of ≥32, no melting and dripping at high temperatures, and low smoke toxicity.
The function of the aluminum foil layer: The double-sided smooth aluminum foil (thickness ≥0.06mm or 0.08mm) forms a sealed protective layer, with a surface roughness Ra≤0.5μm, preventing dust adhesion and blocking air penetration at the same time. The air leakage rate is ≤2% (GB 50243-2016 standard).
Thermal insulation and sealing: The thermal conductivity is as low as 0.020W/(m · K), which is superior to traditional glass wool air ducts. The joints can be double-sealed with aluminum foil tape and sealant, meeting the positive and negative pressure requirements of clean rooms.
Scenarios suitable for cleanrooms of PIR Air Duct Smooth Aluminum Panel
Supply/return air ducts: Main air ducts and branch air ducts for clean areas of class 1,000 and above, especially suitable for electronic semiconductor, pharmaceutical, and food workshops.
Connection of the purification unit: The connection section with the high-efficiency filter (HEPA) and the fresh air unit reduces air flow resistance and cold bridge effect.
High-humidity/corrosive environments: Ventilation ducts in food aseptic workshops and biological laboratories, with aluminum foil layers that can withstand disinfectant wiping (75% alcohol, hydrogen peroxide).
Engineering Application of PIR Air Duct Smooth Aluminum Panel
Processing and installation: Special cutting tools are used, with smooth cuts and no burrs. The joints of the air ducts are bonded with mortise and tenon structure and aluminum foil tape. When flange connections are made, sealing gaskets are added.
Fireproof isolation: When passing through firewalls or floor slabs, fire dampers should be installed, and the periphery should be filled with fireproof rock wool, with a fire resistance limit of ≥1 hour.
Compliance standards: It must comply with GB 50457-2019 "Design Standard for Clean Rooms in Pharmaceutical Industry", ASHRAE 90.1 (Thermal Insulation and Energy Conservation), and ISO 14644-3 (Cleanliness of Air Ducts).
