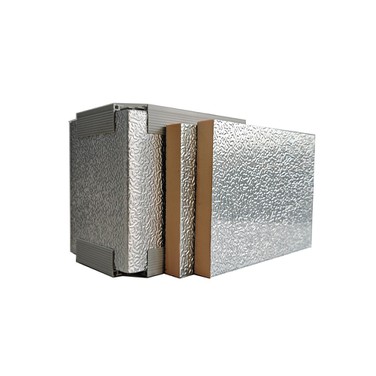

Phenolic Pre Insulated Duct Structure

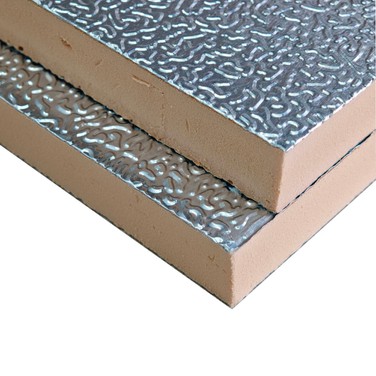

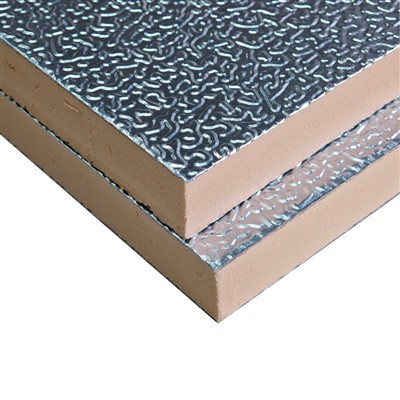

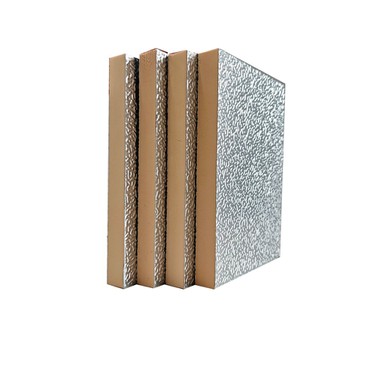

The middle layer of the phenolic pre insulated duct is made of phenolic foam, and the inner and outer layers are embossed aluminum foil. As a foamed product of phenolic resin, phenolic foam has a unique closed-cell structure, which endows it with many excellent properties. The embossed aluminum foil not only protects the internal phenolic foam, but also enhances the mechanical properties and aesthetics of the air duct.
Core Features
Excellent fire resistance: Phenolic foam meets the B1 grade flame-retardant standard, with an oxygen index ≥ 35, and does not melt or drip when exposed to fire.
High-efficiency thermal insulation: The thermal conductivity is as low as 0.022W/(m·K), saving more than 30% energy compared with traditional materials.
Lightweight design: With a density of only 40-60kg/m³, it significantly reduces building loads.
Moisture and corrosion resistance: The closed-cell rate is >95% and the water absorption rate is <3%, making it suitable for high-humidity environments.
Environmental protection and non-toxicity: Free of CFCs/HCFCs and certified by LEED.
Technical Parameters
Maximum Running temperature : 120℃
Standard thickness: 10/20/25/30/40mm optional
Air duct size: Customized production, diameter range 100-2000mm
Compressive strength: ≥150kPa
Acoustic performance: Noise Reduction Coefficient (NRC) 0.75-0.85
certification of PIR Foam Pre-insulated Aluminum Duct
Fire Safety, Thermal Conductivity and Physical Performance
BS 476 Part 6&7
ASNZS 1530.3
thermal Conductivity
Compress Strength
CFC HCFC Free
