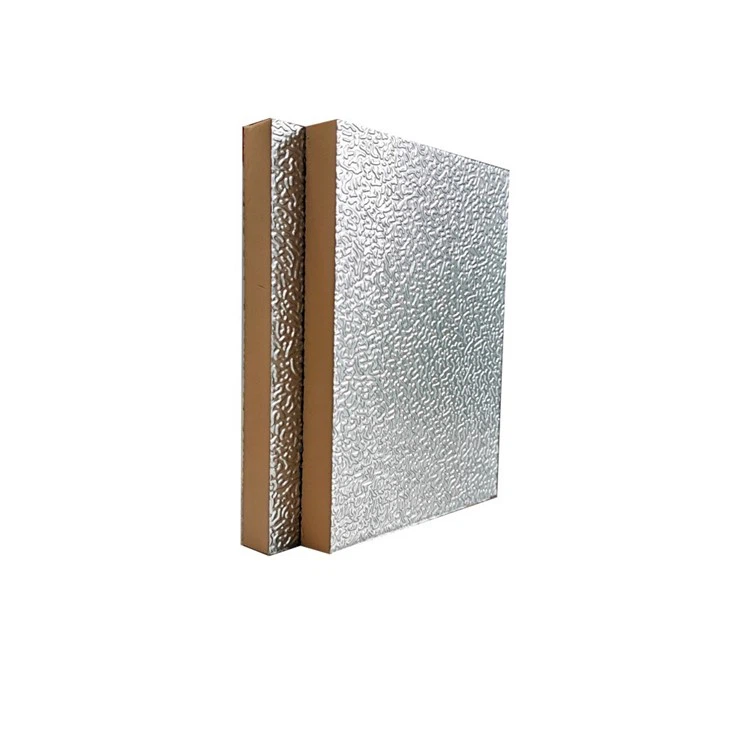

Phenolic Pre-fabricated Insulated Duct Board Core Characteristics
Material Structure
Core Material: Phenolic foam (phenolic resin-based closed-cell structure) with low thermal conductivity (0.02–0.03 W/m·K).
Facing: Double-sided aluminum foil lamination (40–80 μm), which enhances moisture resistance and mechanical strength.
Performance Parameters
Fire Rating: Complies with BS 476 Part6&7 Class 0, ASTM E84 Standard Grade A, It features flame retardancy, low smoke emission, and no release of harmful gases.
Mechanical Strength: Compressive strength ≥ 0.2 MPa; flexural strength ≥ 1.1 MPa.
Temperature Resistance Range: Capable of withstanding a continuous temperature of up to 120℃.
Core Characteristics of Phenolic Pre-fabricated Insulated Duct Board
Efficient Thermal Insulation: Closed-cell phenolic foam core with thermal conductivity of only 0.02–0.03W/m・K, reducing heat gain/loss of ducts, stabilizing supply air temperature, and improving HVAC system energy efficiency.
High Fire Safety: Complies with BS 476 Part6&7 Class 0, ASTM E84 Grade A. It is flame-retardant, low-smoke, and releases no toxic gases during combustion, minimizing fire risks.
Strong Moisture Resistance: Double-sided aluminum foil provides water resistance, preventing water vapor from penetrating the core, avoiding moisture-induced degradation, and maintaining stable insulation performance even in high-humidity environments.
Mechanical Durability: Compressive strength ≥ 0.2 MPa, flexural strength ≥ 1.1 MPa. It resists impact and deformation, ensuring duct structural integrity during installation and use.
Easy & Efficient Installation: Factory-standardized prefabrication ensures stable quality; on-site installation is fast, shortening construction period and reducing labor costs compared to traditional on-site fabricated ducts.
Wide Temperature Adaptability: Withstands continuous high temperature of 120℃, suitable for HVAC working conditions such as cooling, heating, and fresh air supply, with no obvious performance attenuation in normal use.
How to make Air Ducts with Pre-insulated PU Foam Duct Sheet
The fabrication process of Pre-insulated Air Ducts
|
Item |
Unit |
Specification |
|
Panel Structure |
|
Alu./Foam/Alu. |
|
Standard Panel Size |
mm |
3950*1200*20 |
|
Alu. Foil Thickness |
mm |
0.06 |
|
Foam Density |
kg/m3 |
48 |
|
Thermal Conductivity |
w/m.k |
0.022 |
|
Compressing Strength |
Mpa |
0.2 |
|
Bending Strength |
Mpa |
2 |
|
Water Absorption |
% |
0.36 |
|
Dimension Change |
% |
0.3 |
|
Working Temperature |
℃ |
-100 to +80 |
|
Maximum Allowable Wind Velocity |
m/s |
≤12 |
|
Continuous Running Maximum Temperature |
℃ |
≤70 |
|
Lifespan of PU Air Duct |
years |
>20 |
