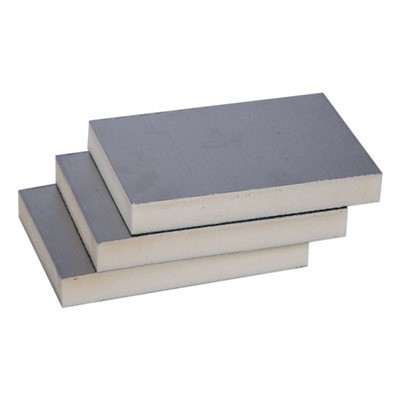

PU Pre-insulated Aluminium Duct Panel

PU Pre-insulated Aluminium Duct Panel

Details
PU Pre-insulated Aluminium Duct Panel is a high-performance composite panel for HVAC duct systems, featuring a rigid PU foam core laminated with embossed aluminium foil on both sides.
It delivers ultra-low thermal conductivity, excellent airtightness and anti-condensation performance. Lightweight yet structurally stable, it allows one-step fabrication without extra insulation, cutting installation time by 40–60%.
Widely used in commercial, industrial and cleanroom projects, it reduces energy loss by 25–30% and offers long-term durability with corrosion resistance.
Category
UNTDuct PU System

Send Inquiry
Description
Technical Parameters

Thanks to its excellent products and quality services, UNT Duct is one of the leading pu pre-insulated aluminium duct panel manufacturers and suppliers in China. Welcome to buy the high quality and customized products from our factory. We will offer you the best service and fast delivery.



PU Pre-insulated Aluminium Duct Panel



PU Pre-insulated Aluminium Duct Panel is a high-performance composite panel for HVAC duct systems, featuring a rigid PU foam core laminated with embossed aluminium foil on both sides. It delivers ultra-low thermal conductivity, excellent airtightness and anti-condensation performance. Lightweight yet structurally stable, it allows one-step fabrication without extra insulation, cutting installation time by 40–60%. Widely used in commercial, industrial and cleanroom projects, it reduces energy loss by 25–30% and offers long-term durability with corrosion resistance.



Structure: Silver Aluminum/ PU Foam/ Silver Aluminum
Size: 3950*1200*20mm
Foam Density: 50-55kg/m3
Aluminum Thickness: 0.06mm or 0.08mm
Aluminum Color: Silver
Packing: 10 sheets/ package
Loading Capacity: 710 sheets/ 40'HQ (packed with plastic bags)
                                  660 sheets/ 40'HQ (packed with cardboard box)

PU Pre-insulated Aluminium Duct Panel

Send inquiry

certification of PU Pre-insulated Aluminium Duct Panel



Fire Safety, Thermal Conductivity and Physical Performance

UNTDuct PIR Fire Safety BS476 Part 6&7

BS 476 Part 6&7

PIR Fire Safety ASNZS 1530.3

ASNZS 1530.3

Thermal Conductivity Thermal Resistance of PU Pre-insulated Aluminum Duct

thermal Conductivity

Physical Property of Pre-insulated Duct

Compress Strength

CFC HCFC Free

CFC HCFC Free

Send inquiry

Performance Technology of PU Pre-insulated Aluminium Duct Panel

PU Foam Duct

Structural mechanics: The PU core provides sufficient rigidity, and the aluminum foil reinforced panel surface strength enhances the strength. No additional reinforcement is required for the conventional wind pressure, and the panels are flat and less prone to deformation.


Moisture and condensation prevention: The water absorption rate is nearly zero. The aluminum foil blocks water vapor, and in high-humidity environments, there is no condensation or mold growth, extending the lifespan of the ducts.


Fire safety: The flame-retardant PU has a carbonized burning surface, without molten droplets, low smoke and toxicity, meeting building fire safety standards, and enhancing system safety.


Air tightness and air resistance: The panel surface is smooth, and the connection sealing is reliable. The air leakage rate is much lower than that of traditional ducts, with less air flow loss, and lower energy consumption for the fan.

Send inquiry

Engineering Application of PU Pre-insulated Aluminium Duct Panel

Construction Efficiency: Prefabrication in the factory, on-site cutting and assembly, one-step process, no need for insulation wrapping, significantly shortens the construction period and reduces labor costs.


Load Advantage: The self-weight is much lighter than galvanized iron sheet ducts, reducing the building's load-bearing capacity, suitable for renovation projects, large-span and lightweight buildings.


Space Adaptability: The plates are thin and lightweight, which can be flexibly arranged in narrow spaces such as ceilings and pipe shafts, improving space utilization.


Maintenance Cost: Aluminum foil is corrosion-resistant and does not rust easily, has no risk of insulation layer detachment, and significantly reduces the workload for later maintenance.

pre-insulated PU Foam Duct

Send inquiry

Why choose UNTDuct

UNT Pre-insulated Ductwork

What is UNT Duct System

UNT Duct System



PRE-INSULATED DUCT vs G.I. DUCTWORK

Metric

20mm PU Pre - Insulated Duct
(with 0.08mm Alu. Foil, )

0.5mm G.I Duct + 30mm Rubber Plastic (40-90kg/m3)

Fire Safety

Compliant (Class 0/BS 476, AS 1530.3). Self-extinguishing PU core, low toxic smoke, non-combustible alu foil.

G.I non-combustible;
rubber plastic fire-retardant but requires coating to meet strict codes.G.I

Thermal Insulation

Excellent.
λ=0.020 W/m·K, no thermal bridging. 20mm integrated structure ensures consistent insulation.

Fair.
λ=0.035 W/m·K, thermal bridging at G.I joints. 30mm insulation offset by metal conductivity.

Hygiene & Air Quality

Superior.
Non-porous alu foil, smooth inner surface, moisture-resistant PU. Meets cleanroom/hospital standards.

Poor.
Porous rubber plastic traps dust/mold; G.I-insulation gaps breed pathogens.

Lightweight

1.4-1.5 kg/m².
Ultra-light, reduces structural load; ideal for retrofits/timber-framed buildings.

5.1–6.3 kg/m².
Heavy G.I base + bulk insulation; requires reinforced supports.

Energy Efficiency

Excellent.
20–30% lower HVAC energy consumption. Minimizes heat gain/loss in conditioned air.

Low.
20–30% higher energy loss due to inferior insulation and thermal bridging.

Ease of Construction

Easy.
Factory-prefabricated tongue-and-groove joints. No separate insulation step; 40–60% less labor time.

Complex.
Two-step on-site process: G.I duct fabrication + rubber plastic wrapping. Labor-intensive, prone to gaps.

Quiet Operation

Good.
PU core absorbs 10–15 dB airflow noise; alu foil dampens vibration.

Fair.
Rubber plastic provides basic sound reduction, but G.I vibration and insulation gaps reduce efficiency.

Space Savings

Excellent.
20mm total thickness (all-in-one). Fits tight ceilings/retrofit cavities.

Poor.
30.5mm total thickness (0.5mm G.I + 30mm insulation). Bulky, requires larger installation space.

Environmental Friendliness

Balanced.
CFC/HCFC-free PU, recyclable alu foil. 20–30-year lifespan; net carbon positive in 1–3 years.

Low.
Rubber plastic non-recyclable; 10–15-year lifespan. Frequent replacement increases waste; higher energy emissions.

Air Leakage

Superior.
≤2% air leakage (EN 1507, AS/NZS 3660.1). Airtight factory joints + alu foil vapor barrier.

Poor.
5–10% air leakage. On-site sealing gaps; separate vapor barrier required.


Performance comparison based on UNT Duct product data and standard system configurations. Actual performance may vary depending on system design, installation method and project conditions.
