For Contractors: Why Pre-Insulated PU Duct is a Game Changer for Your Projects
Gentlemen, let's cut to the chase. You're busy, and you need solutions that save time, make money, and avoid callbacks. That's exactly what Pre-insulated Polyurethane (PU) Foam Ductwork delivers. Forget the old way of fabricating sheet metal and then wrapping it with fiberglass. This is an all-in-one, insulated, airtight system that changes the game.
Here's what you need to know:
1. What Exactly Is It?

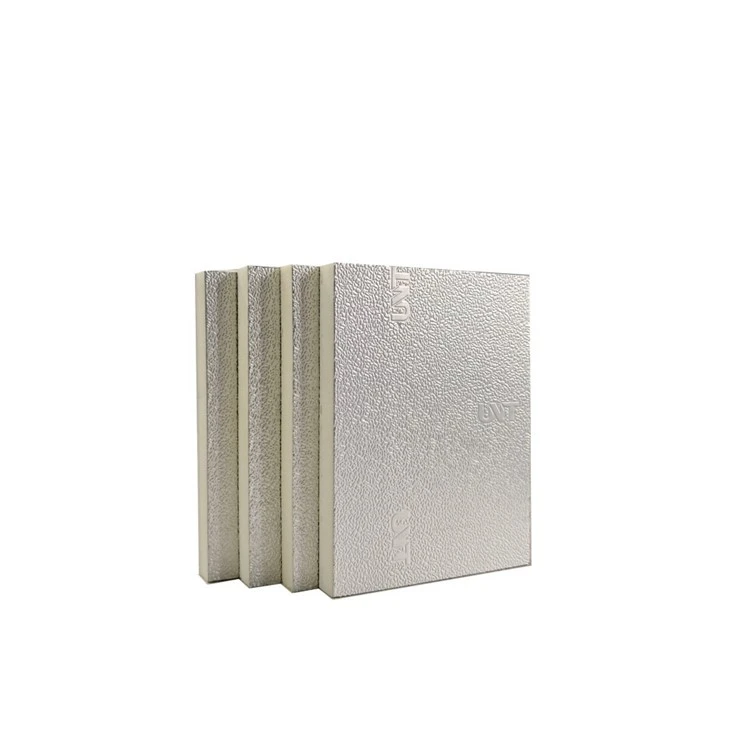

Think of it as a "Duct-in-a-Box." It's a rigid panel with a core of high-performance polyurethane (PU) foam, laminated between two tough, protective layers of aluminum foil. These panels are precision-fabricated into ducts, elbows, reducers, and tees right at the factory. You get a complete, numbered kit delivered to your site, ready for assembly.
Core: Rigid PU (The insulation)
Inner Surface: Smooth or Embossed Aluminum (The air passage)
Outer Surface: Embossed Aluminum (The durable jacket)
Benefits of Pre-insulated PU Foam Duct for Contractors
| Benefit | What It Means For You |
|---|---|
| 🚀 Blazing Fast Installation | This is the biggest sell. The profiles joint system snaps together without specialized tools. Your labor time plummets. Crews can install this system up to 3 times faster than traditional sheet metal with external insulation. That's more jobs per year. |
| 💰 Massive Labor & Cost Savings | Faster installation means significantly lower labor costs. You also eliminate multiple trades on site-no separate insulation crew needed. You reduce overheads like welding equipment, large metal brakes, and shears. |
| 💪 Lightweight & Easy to Handle | These panels are up to 70% lighter than insulated sheet metal. Your crew can handle large sections easily, reducing the need for lifts or hoists and minimizing the risk of injury. It also means less structural support is needed. |
| 🎯 Perfect Airtightness (No Callbacks!) | The factory-engineered joints, when sealed with the recommended tape or mastic, create an incredibly airtight system. This means no energy loss, no condensation problems, and no unhappy clients blaming you for high utility bills or mold issues. You get it right the first time. |
| 🏆 Clean & Professional Finish | The interior is a smooth, cleanable aluminum surface that looks professional and is ideal for modern air quality standards. The exterior is tough and requires no additional finishing. |
certification of Pre-insulated PU Foam Duct
Fire Safety, Thermal Conductivity and Physical Performance
BS 476 Part 6&7
ASNZS 1530.3
thermal Conductivity
Compress Strength
CFC HCFC Free
How to make Air Ducts with Pre-insulated PU Foam Duct Sheet
The fabrication process of Pre-insulated Air Ducts
|
Item |
Unit |
Specification |
|
Panel Structure |
|
Alu./Foam/Alu. |
|
Standard Panel Size |
mm |
3950*1200*20 |
|
Alu. Foil Thickness |
mm |
0.06 |
|
Foam Density |
kg/m3 |
48 |
|
Thermal Conductivity |
w/m.k |
0.022 |
|
Compressing Strength |
Mpa |
0.2 |
|
Bending Strength |
Mpa |
2 |
|
Water Absorption |
% |
0.36 |
|
Dimension Change |
% |
0.3 |
|
Working Temperature |
℃ |
-100 to +80 |
|
Maximum Allowable Wind Velocity |
m/s |
≤12 |
|
Continuous Running Maximum Temperature |
℃ |
≤70 |
|
Lifespan of PU Air Duct |
years |
>20 |
