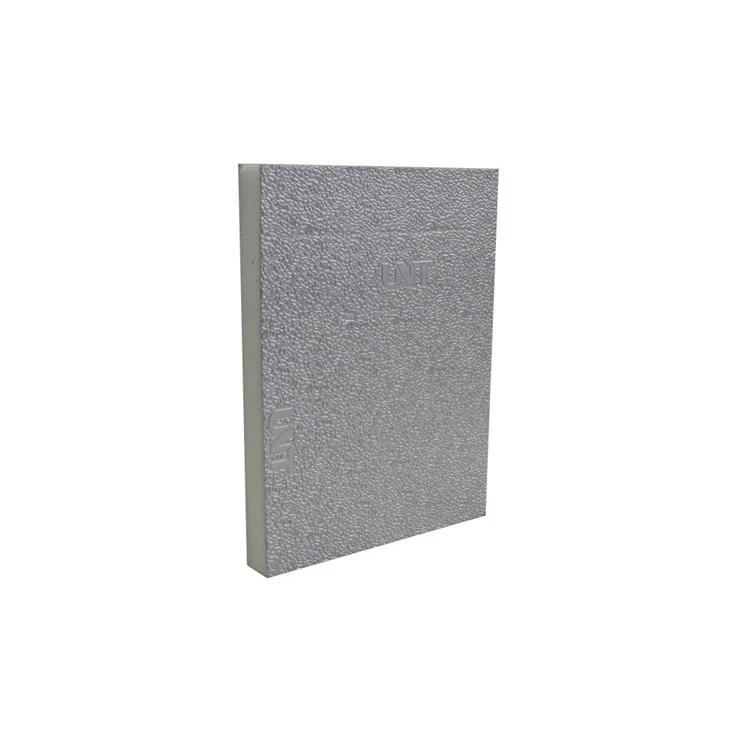

Pre-insulated Aluminum Duct Board Material Composition

Insulation Layer

Polyurethane Foam (PU): Boasts an ultra-low thermal conductivity of as low as 0.02W/(m・K). Its closed-cell structure offers strong water resistance, along with sound absorption and noise reduction capabilities, effectively preventing heat transfer.

Phenolic Foam (PF): Has a thermal conductivity ranging from 0.02 to 0.03W/(m・K), delivering excellent thermal insulation performance. Classified as a B1-grade flame-retardant material, it forms a carbonized layer when exposed to fire, exhibiting outstanding fire resistance.

Polyisocyanurate Foam (PIR): Features excellent thermal stability and a low thermal conductivity of 0.022W/(m・K). With a dense molecular structure, it offers high compressive strength and superior anti-aging properties.

Facing Materials

Aluminum Foil: Provides moisture and water resistance, reflects heat to reduce thermal radiation. Its surface is usually embossed to enhance strength and aesthetics, and can be coated with anti-corrosive layers to improve corrosion resistance.

Galvanized Steel (GI): Possesses high mechanical strength, withstanding pressure and impact. The galvanized layer prevents rust and corrosion, making it suitable for scenarios requiring high strength and durability.

Color Steel: Offers rich and attractive colors, along with certain strength and corrosion resistance, contributing to the overall aesthetic appeal of buildings.

Our Products

Pre-Insulated Panels

Pre-Insulated board

Pre-insulated Aluminum Duct

The advantages of Pre-insulated Aluminum Duct Board

Superior Thermal Insulation: Low thermal conductivity effectively reduces heat loss or gain in HVAC systems, lowering energy consumption and improving energy efficiency.

Lightweight: Significantly lighter than traditional galvanized iron ducts (e.g., phenolic composite ducts are 1/6 the weight of iron ducts), reducing building load and facilitating transportation, installation, and construction.

Easy & Quick Installation: Factory-prefabricated boards require only on-site cutting, splicing, and fixing, eliminating on-site insulation work, reducing procedures, shortening construction cycles, and boosting efficiency.

Good Fire Resistance: Insulation materials like phenolic foam and PIR foam reach B1 or higher flame-retardant grades, forming protective layers to inhibit fire spread and enhance building safety.

Excellent Air Tightness: Special connections (e.g., flanges, inserts) with sealant ensure tightness, minimizing air leakage, improving air supply efficiency, and reducing energy waste.
