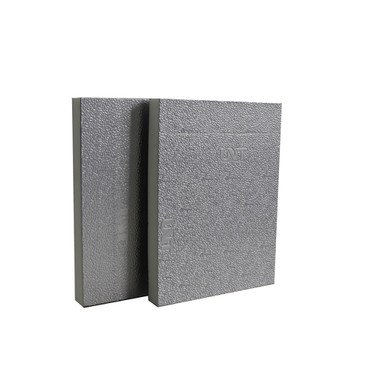

PIR Pre Insulated Duct Panels
Panel Structure: Silver Alu. / PIR Foam nature color/ Silver Alu. Foil
Foam Density: 50kg/cbm
Panel Dimension: 3950mm*1200mm*20mm
Alu. Foil: 60micron (Embossed)
Packing: 10 sheets/ package
Container Loading:
40'HQ Container:
3950*1200*20mm, 10 sheets packed in one carton, total 660sheets
2900*1200*20mm, 10 sheets packed in one carton, total 880sheets
20'GP Container: 2900*1200*20mm, 10 sheets packed in one carton, total 400sheets.
PIR Pre Insulated Duct Panel for Air Conditioning Systems
PIR (Polyisocyanurate) pre-insulated duct panels are a cutting-edge solution designed to enhance the efficiency and performance of air conditioning systems. These panels feature a core of PIR foam, renowned for its outstanding thermal insulation properties. With a low thermal conductivity, PIR foam effectively minimizes heat transfer, reducing energy consumption and ensuring that conditioned air maintains its desired temperature as it travels through the ducts.
The panels are typically faced with robust materials such as aluminum foil or other high-performance facings. This facing not only protects the PIR foam core from physical damage but also provides excellent vapor resistance, preventing moisture ingress that could lead to mold growth or degradation of the insulation. The airtight construction of PIR pre-insulated duct panels, achieved through precise manufacturing and effective jointing systems, further reduces air leakage, significantly improving the overall efficiency of the air conditioning system.
In addition to their thermal and moisture control capabilities, PIR pre-insulated duct panels offer remarkable fire resistance, meeting stringent safety standards in the construction and HVAC industries. Their lightweight nature simplifies handling and installation, cutting down on labor costs and installation time. Widely used in commercial buildings, hospitals, data centers, and other large-scale facilities, PIR pre-insulated duct panels are a reliable, energy-efficient, and durable choice for optimizing air conditioning system performance.
PIR Pre Insulated Duct Panel for Air Conditioning Systems
How to make Air Ducts PIR Pre Insulated Duct Panels
The fabrication process of Pre-insulated Air Ducts
Specificaiton of PIR Pre Insulated Duct Panels for HVAC System
|
Item |
Unit |
Specification |
|
Panel Structure |
Alu. Foil/ PIR Foam/ Alu.Foil |
|
|
Standard Panel Size |
mm |
3950*1200*20 |
|
Alu. Foil Thickness |
mm |
0.06 |
|
Foam Density |
kg/m3 |
48 |
|
Thermal Conductivity |
w/m.k |
0.020 |
| Fire Rating |
Class 0 (BS476 Part 6&7) Class A (ASTM E84) |
|
|
Compressing Strength |
Mpa |
0.2 |
|
Bending Strength |
Mpa |
2 |
|
Water Absorption |
% |
0.36 |
|
Dimension Change |
% |
0.3 |
|
Working Temperature |
℃ |
-100 to +80 |
|
Maximum Allowable Wind Velocity |
m/s |
≤12 |
|
Continuous Running Maximum Temperature |
℃ |
≤70 |
|
Lifespan of PU Pre-insulated Duct System |
years |
>20 |
