PIR-ALU DUCT FOAM PANELS

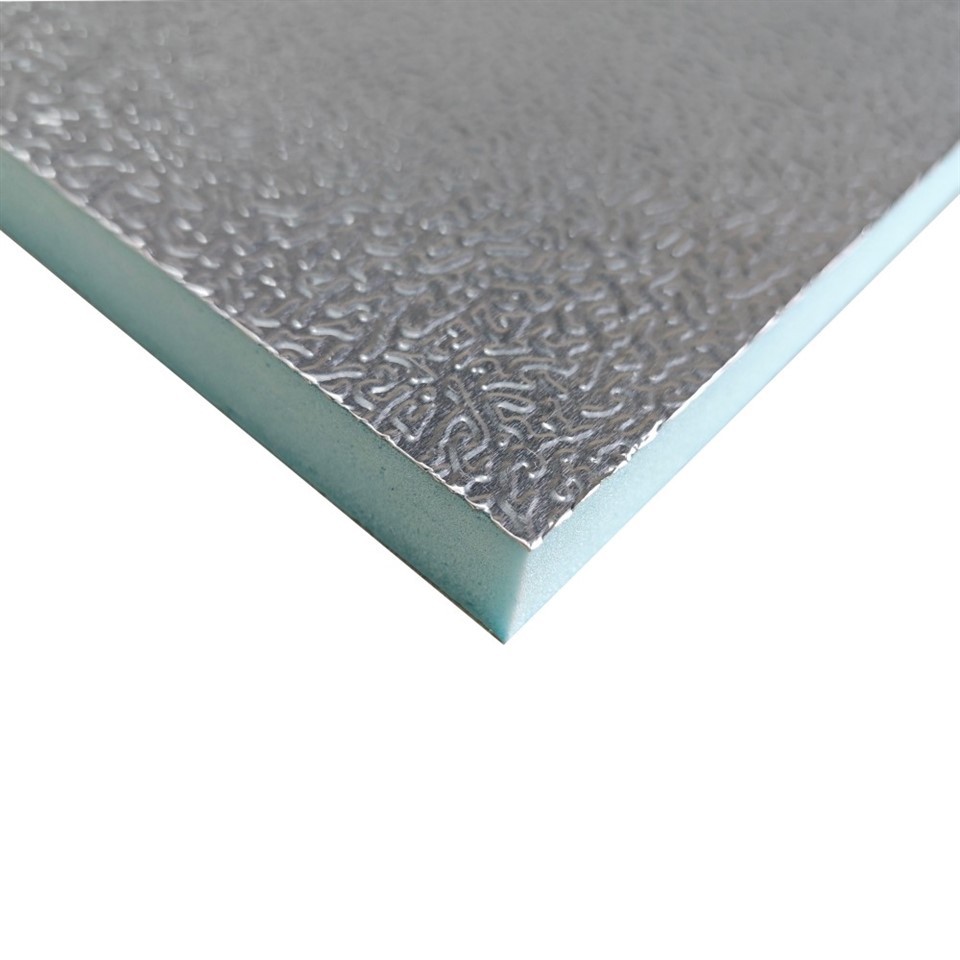

PIR-ALU DUCT FOAM PANELS are high-performance composite insulation panels specially designed for HVAC duct systems.
They consist of a rigid PIR foam core laminated with aluminum foil on both sides, delivering excellent thermal stability, low thermal conductivity, and outstanding fire resistance.
These panels are lightweight, easy to cut and install, effectively reducing energy loss and condensation.
With strong mechanical strength and corrosion resistance, they are widely used in commercial buildings, industrial workshops, clean rooms and central air conditioning projects, providing long-term, reliable thermal insulation and air duct protection.

Structure: Silver Aluminum/ PIR Foam/ Silver Aluminum
Size: 3950*1200*20mm
Foam Density: 50-55kg/m3
Aluminum Thickness: 0.06mm or 0.08mm
Aluminum Color: Silver
Packing: 10 sheets/ package
Loading Capacity: 710 sheets/ 40'HQ (packed with plastic bags)
660 sheets/ 40'HQ (packed with cardboard box)

material composition of PIR-ALU DUCT FOAM PANELS

This product is not a single material but a functionally complementary composite material consisting of PIR (polyisocyanurate) foam core material and aluminum foil surface layer. PIR itself has excellent insulation, flame retardancy, and dimensional stability, which can significantly reduce the heat loss of the duct; the aluminum foil surface layer is responsible for preventing moisture penetration, enhancing surface strength, and reflecting radiant heat.

This composite structure avoids the defects of pure foam, such as fragility and poor weather resistance, and also solves the problems of insufficient insulation of pure metal ducts and easy condensation. The interface bonding strength of the materials directly determines the durability of the product. Good composite processing can prevent delamination and bulging, and extend the service life of the duct system.

Cost Structure and Market Replacement Value of PIR-ALU DUCT FOAM PANELS

Compared with the traditional galvanized iron sheet duct + external insulation solution, this product is an integrated finished plate. Although the unit price is slightly higher, the overall cost is more favorable: it eliminates the need for secondary insulation construction, labor, auxiliary materials, and subsequent maintenance costs.

At the same time, it can replace some phenolic and XPS duct materials, and is more competitive in terms of flame retardancy, temperature resistance, and long-term stability.

Under the trend of prefabricated buildings, the characteristics of standardized prefabrication and on-site rapid assembly make it more suitable for modern construction methods. The market replacement space comes not only from performance advantages, but also from the efficiency gains brought about by the upgrade of engineering models.
