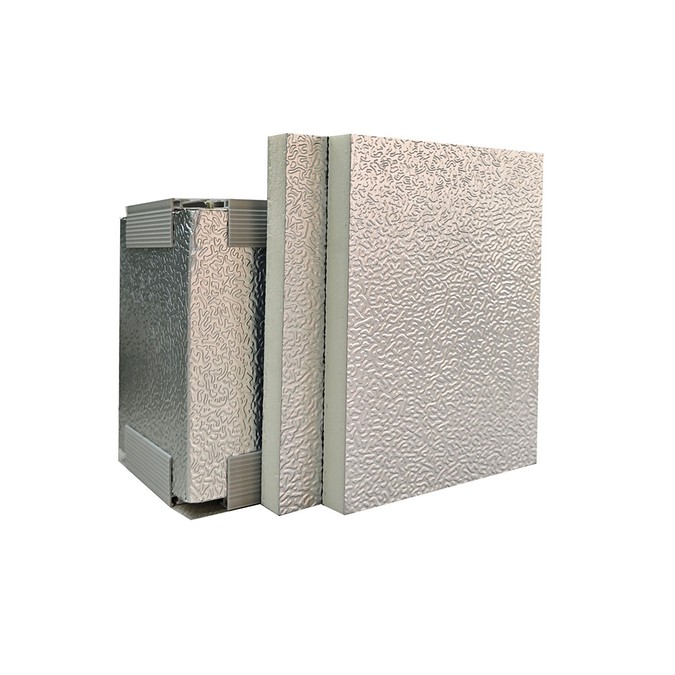

Introduction of Fire Rated Pre Insulated Duct
In the realm of heating, ventilation, and air conditioning (HVAC) systems, fire rated pre insulated ducts have emerged as a vital safeguard for ensuring both safety and efficiency. Engineered with PIR (Polyisocyanurate) foam as the core insulation material and aluminum foil as the facing material, these ducts are specifically designed to meet stringent fire safety standards while delivering excellent thermal insulation. This makes them an optimal choice for a wide array of buildings where fire protection is a top priority.

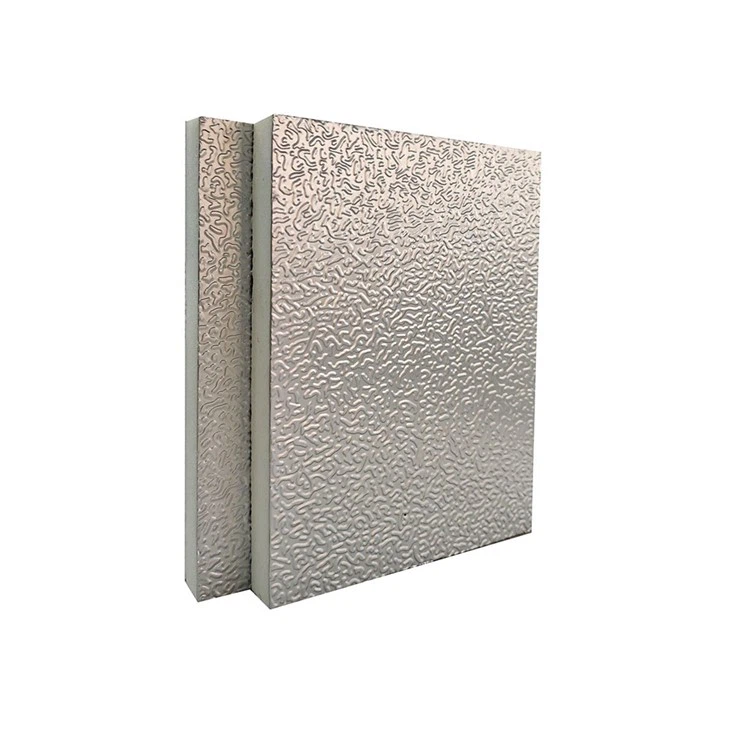

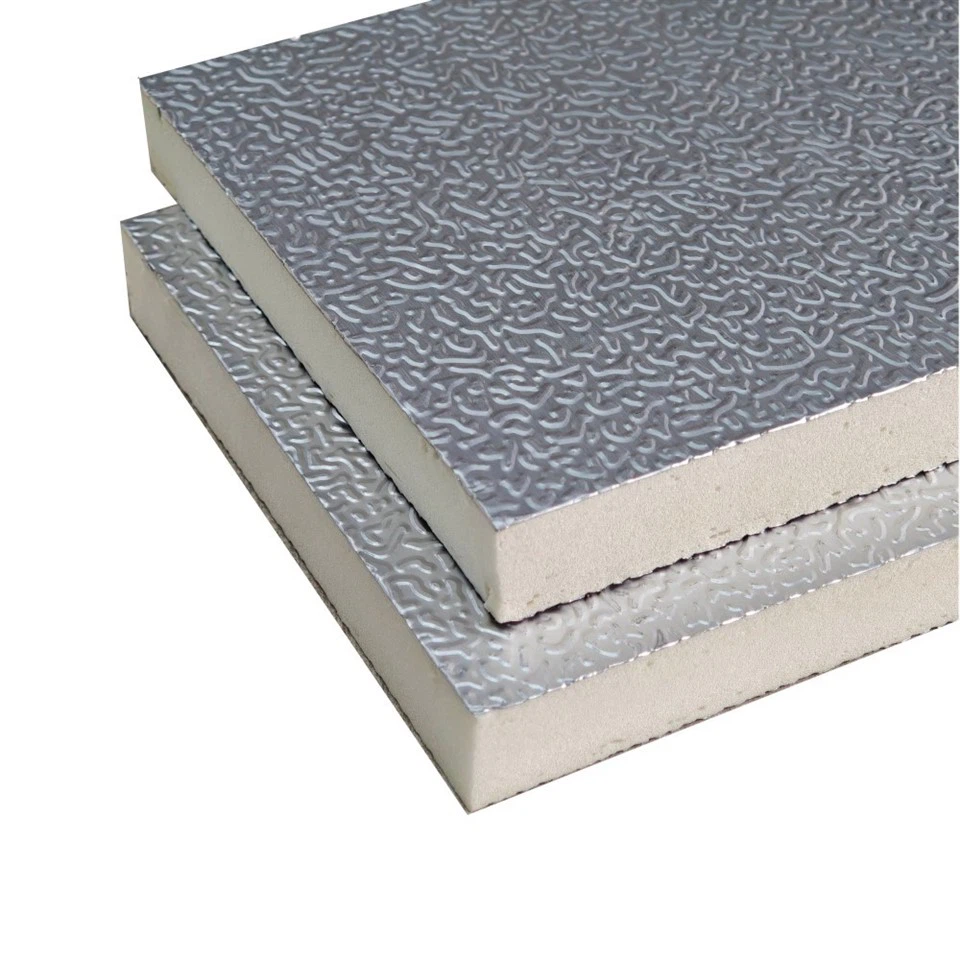

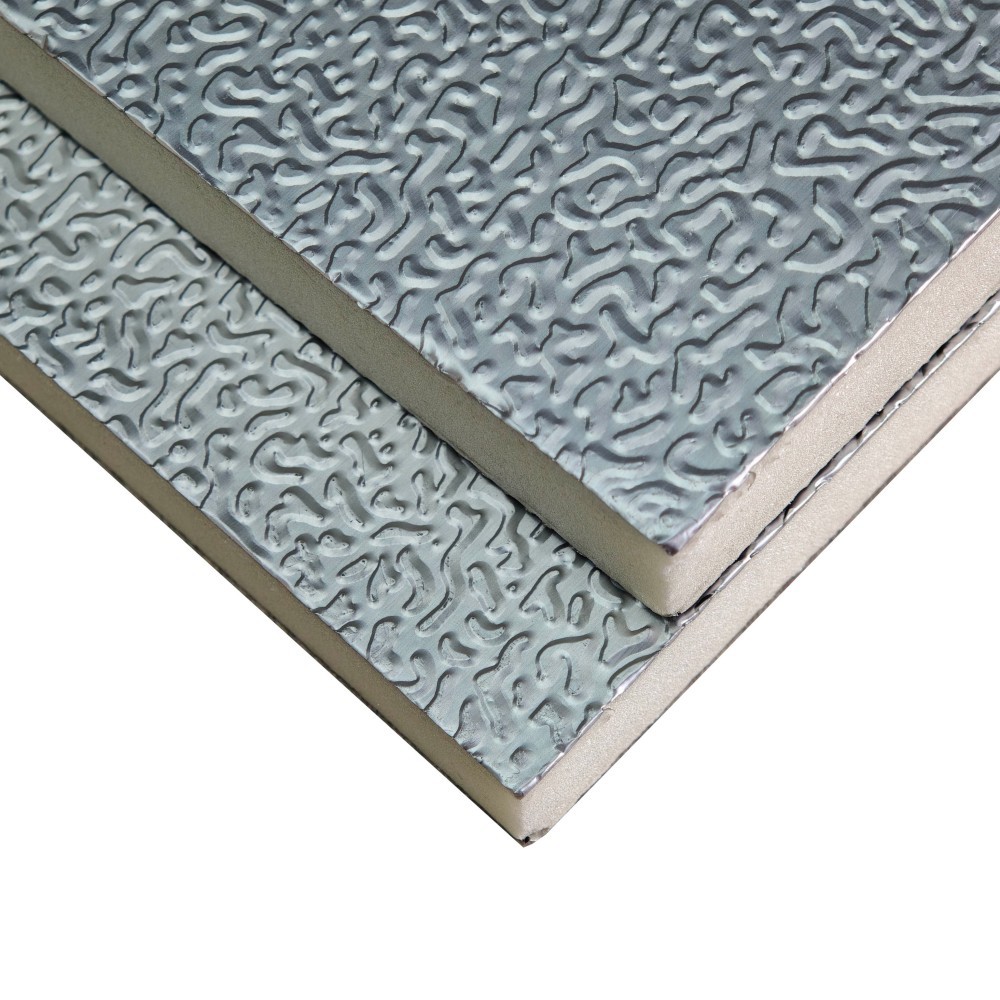

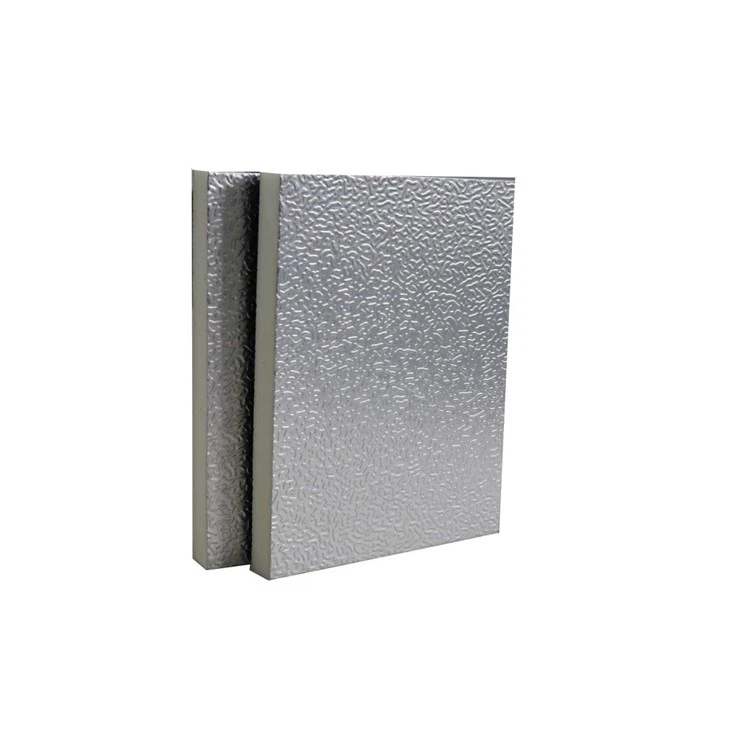

Panel Structure: Silver Alu. / PIR Foam / Silver Alu. Foil
Foam Density: 52KGS/CBM
Panel Dimension: 3950mm*1200mm*20mm
Alu. Foil: 60 Micron (Embossed)
Packing: 10sheets/ Package
Structure and Design of Fire Rated Pre Insulated Duct
feature a well-crafted multi-layer structure. The inner layer, typically constructed from sturdy materials like aluminum, serves as the air flow channel. Its smooth surface facilitates efficient air movement and offers robust corrosion resistance, guaranteeing the long term functionality of the duct in carrying air.
The core of these ducts is the PIR foam insulation layer. PIR foam is renowned for its outstanding thermal resistance, with a low thermal conductivity that effectively minimizes heat transfer between the air inside the duct and the surrounding environment. Beyond its insulation prowess, PIR foam is treated to enhance its fire retardant properties. It exhibits a slow flame - spread rate and low smoke emission, making it a reliable choice for fire - rated applications.
Encasing the PIR foam is an aluminum foil facing. The aluminum foil on the exterior acts as a versatile protective shield. It safeguards the PIR foam from physical damage, moisture infiltration, and harmful UV rays. Additionally, the reflective properties of the aluminum foil contribute to the duct's thermal performance by reducing radiant heat transfer. In certain scenarios, the aluminum foil may be further coated with fire - retardant substances to boost the overall fire - safety performance of the duct.
Application of Fire Rated Pre Insulated Duct
are widely applicable across various building types. In commercial buildings like offices, shopping malls, and hotels, they are essential for maintaining a safe and comfortable indoor environment while complying with strict fire - safety regulations. In industrial facilities, such as factories and warehouses, these ducts protect valuable equipment and ensure the smooth running of production processes by providing a secure and efficient air - handling solution. In residential buildings, particularly multi - story apartments or homes with complex HVAC systems, they enhance the overall safety and energy efficiency of heating and cooling setups.
In conclusion, fire rated pre insulated ducts, with PIR foam and aluminum foil as their key components, offer an ideal blend of fire safety, energy efficiency, durability, and installation convenience. They are an indispensable part of modern HVAC systems, providing peace of mind for building owners, occupants, and operators. As fire - safety requirements become increasingly stringent and the demand for energy - efficient buildings continues to rise, the significance of these ducts will only grow in the future.
