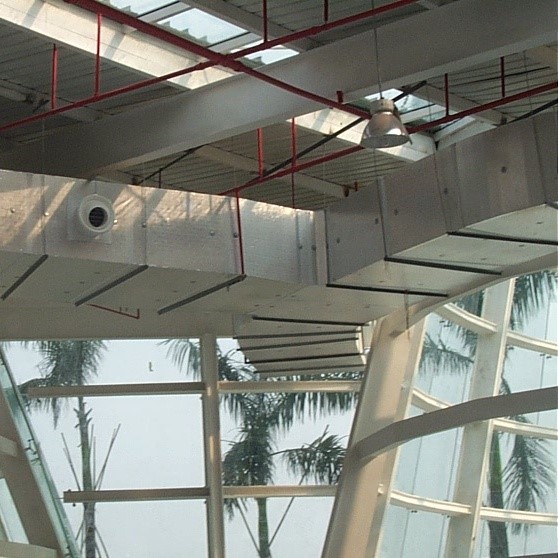

UNTDuct Rigid Phenolic Pre-insulated Ductwork

Rigid Phenolic Foam Pre-insulated Ductwork System stands as a premier example of high-performance pre-insulated ductwork, representing the pinnacle of global innovation and energy efficiency in air distribution systems. Constructed using robust phenolic insulation panels in sections spanning up to 3.95 meters, this system offers unparalleled energy savings and environmental advantages compared to alternative ductwork solutions.

Comprising Phenolic Pre-insulated Duct Panels, advanced fabrication techniques, precision jointing systems, and a comprehensive suite of accessories, the UNTDuct System is engineered to minimize air leakage to a mere fraction of that typically observed in traditional sheet metal ductwork. This makes it the undisputed frontrunner in the next generation of pre-insulated ductwork technology.

Advantages of Rigid Phenolic Pre-Insulated Ductwork vs. Traditional Sheet Metal Ductwork

1. Fire Safety
Rigid Phenolic Pre-Insulated Ductwork has a phenolic foam center that meets Class 0 (BS476 Part 6 & 7) or Class A (ASTM E84) fire standards. It doesn't give off toxic smoke when burned. Traditional metal ducts don't catch fire, but they need extra fire-resistant insulation that can produce harmful smoke, making them risky in emergencies.

2. Moisture and Germ Protection
Phenolic panels are covered with aluminum foil or Painted Steel Sheet, forming a completely waterproof layer that stops moisture from getting in. The closed-cell design of phenolic foam also stops mold, bacteria, and fungi from growing. Metal ducts, however, can rust and corrode from moisture, and their insulation can hold water, promoting germ growth and needing expensive, regular upkeep.

3. Eco-Friendly
Phenolic Systems are made without CFC/HCFC and can be recycled, with a low global warming impact. Traditional ducts often use insulation with ozone-harming chemicals and are hard to recycle, hurting the environment more and increasing carbon emissions.

4. Quick and Easy Installation
Phenolic Duct System has built-in insulation, so you don't need to install separate insulation, saving 30-50% of labor time compared to traditional methods. Metal ducts need two steps (duct installation + insulation wrapping), raising labor costs, complexity, and project time.

5. Space Saving
Phenolic panels have a compact, all-in-one design (insulation built in) that saves up to 20% of building space compared to traditional ducts, which need extra room for separate insulation. This is great for commercial buildings, high-rises, or tight spaces where every inch counts.

6. Lightweight and Less Stress on Buildings
Phenolic panels are light (foam density: about 50 kg/m³), reducing the weight on buildings and the need for extra support. Metal ducts are heavy and rigid, putting more stress on buildings and often needing expensive structural reinforcements.

7. Less Air Leakage
UNTDuct's precision-made flange joint system has an ultra-low air leakage rate of ≤0.05 m³/h·m²-90% less than traditional ducts (0.5-1.0 m³/h·m²). This tight seal means less energy waste, better HVAC efficiency, and lower operational costs over time.

8. Good for Temperature and Sound
Phenolic Pre-Insulated Ductwork has low heat transfer (0.025 W/m·K) and stops condensation, improving energy efficiency. The closed-cell foam also reduces noise (up to 25 dB), making indoor spaces quieter and more comfortable. Traditional ducts don't have built-in insulation or soundproofing, needing extra parts that increase costs and complexity.
