Phenolic Foam Pre-Insulated Aluminum Duct
As a contractor, you need HVAC solutions that cut installation time, reduce labor costs, minimize on-site headaches, and deliver long-term reliability for your clients.
Phenolic Foam Pre-Insulated Aluminum Duct is engineered to check all these boxes-it's a factory-integrated system that eliminates the hassle of separate ductwork and insulation, while boosting performance for commercial, industrial, and high-end residential projects. Below's everything you need to know to recommend and install it with confidence.
What is Phenolic Pre-insulated Aluminum Duct: A 3-Layer "All-in-One" Solution
This duct system combines three critical components into a single, prefabricated unit-no on-site assembly of separate parts. It's designed for your efficiency:
| Layer | Material & Thickness | Why It Matters for Contractors |
|---|---|---|
| Inner Air Layer | 0.15–0.3mm aluminum sheet | Smooth, corrosion-resistant surface = minimal airflow resistance (no need to fix rough edges). Seamless factory bonding = less on-site sealing work. |
| Middle Insulation Core | 20–50mm rigid phenolic foam (customizable) | Pre-installed insulation = skip the messy, time-consuming step of wrapping ducts with glass wool/rock wool. Closed-cell structure = no moisture absorption (avoids callbacks for mold or insulation degradation). |
| Outer Protection Layer | 0.2–0.4mm aluminum sheet | Durable, dent-resistant surface = stands up to rough on-site handling. UV-resistant = safe for exposed installations (e.g., industrial ceilings). |
The packing and container loading of Phenolic Pre-insulated Aluminum Duct：

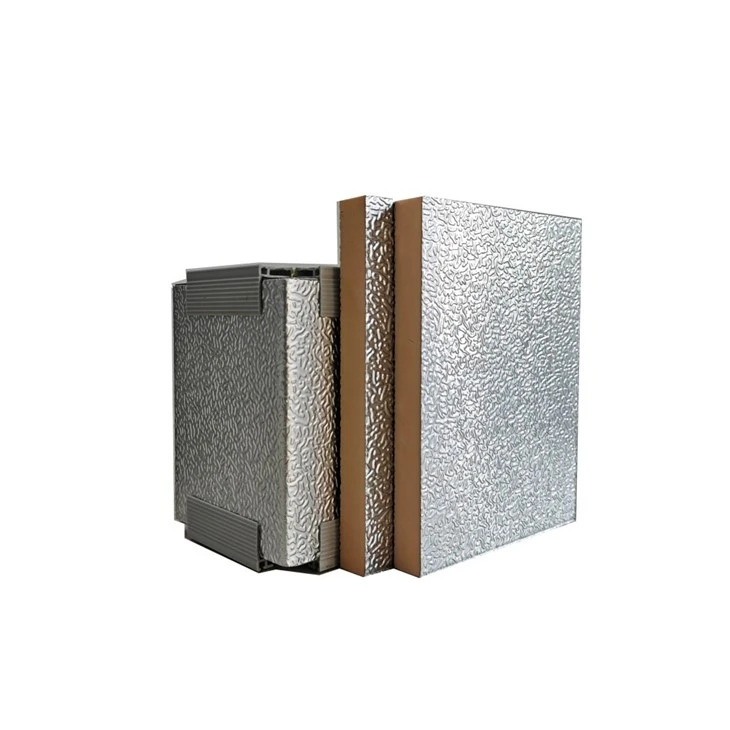

Phenolic Pre-insulated Aluminum Duct
Regular Size: 3950*1200*20mm/ 2900*1200*20mm
Phenolic Foam Density: 50kg/m3
Aluminum foil thickness: 0.06 or 0.08mm
Weight: about 1.35kg/m2
Packing: 10 sheets/ paper carton
H.S. Code: 39211990
Container Loading:
40'HQ Container:
3950*1200*20mm, 10 sheets packed in one carton, total 660sheets
2900*1200*20mm, 10 sheets packed in one carton, total 880sheets
20'GP Container: 2900*1200*20mm, 10 sheets packed in one carton, total 400sheets.
Key Benefits Over Traditional Duct Systems
Forget the frustrations of traditional duct systems (galvanized steel + on-site insulation). This duct solves your biggest pain points:
a. Slashes Installation Time by 50–70%
Factory-Prefabricated Parts: All components (straight sections, elbows, tees, reducers) arrive cut to size and ready to assemble. No on-site measuring, cutting, or insulation wrapping.
Simple Assembly: Connect sections with aluminum foil tape, polyurethane sealant, or quick-lock flanges-no heavy tools (e.g., welders, riveters) needed. A 2-person crew can install 20–30m of duct per day (vs. 8–12m for traditional steel ducts).
Lightweight: Weighs just 8–12 kg/m² (1/3 the weight of steel ducts with insulation). No need for heavy lifting equipment-reduces crew fatigue and safety risks.
b. Cuts Labor & Material Costs
Fewer Crew Hours: Faster installation means you spend less on labor. For a 1,000m² commercial project, you could save 10–15 man-days.
No Extra Insulation: The integrated foam core eliminates the need to purchase, transport, and install separate insulation (e.g., glass wool, rock wool).
Minimal Waste: Prefabricated parts mean less on-site cutting scrap-reduces material waste (and disposal costs) by up to 80% vs. custom-cut steel ducts.
c. Reduces Callbacks (and Client Headaches)
Airtight by Design: Factory-sealed joints and aluminum layers keep air leakage ≤2% (meets SMACNA standards), vs. 5–10% for traditional steel ducts. No callbacks for "weak airflow" or high energy bills.
Moisture & Mold Resistant: Closed-cell foam absorbs <3% water-perfect for humid spaces (e.g., hospitals, swimming pools). No mold remediation calls later.
Fire-Safe: Meets global fire standards (UL 94 V-0, GB 8624 Class A)-self-extinguishes and releases no toxic smoke. Reduces liability and client concerns about safety.
