Phenolic Foam Pre-Insulated Aluminum Duct: An In-Depth Introduction

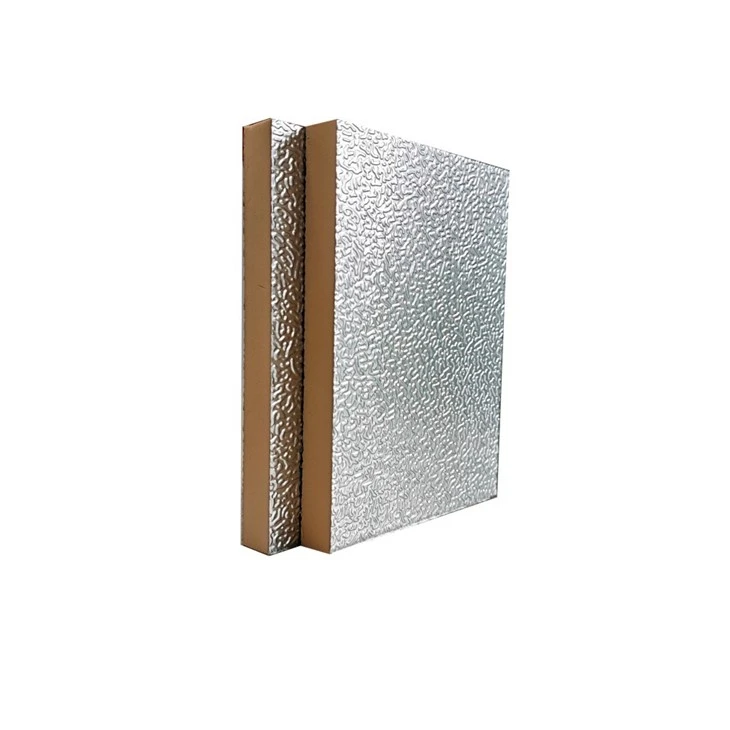

Phenolic Foam Pre-Insulated Aluminum Duct (often abbreviated as Phenolic Pre-Insulated Duct) is a high-performance, integrated duct system widely used in heating, ventilation, and air conditioning (HVAC) projects. It combines a phenolic foam core (insulation layer) with aluminum sheets (inner and outer protective layers) into a single, factory-prefabricated unit-eliminating the need for on-site insulation installation. This design makes it a preferred choice for commercial, industrial, and high-end residential buildings where energy efficiency, space savings, and quick construction are priorities.

Core Advantages Over Traditional Duct Systems

Compared to conventional duct solutions (e.g., galvanized steel ducts + on-site glass wool insulation), phenolic pre-insulated aluminum ducts offer clear benefits:

Advantage	Description
Faster Installation	Factory-precut and prefabricated (e.g., straight sections, elbows, tees); on-site assembly takes 50–70% less time than installing steel ducts + separate insulation.
Space-Saving	The integrated design eliminates the need for extra insulation thickness (total duct thickness is just the foam + two aluminum layers). It saves 30–50% of installation space-critical for tight areas like ceiling plenums or narrow corridors.
Lower Energy Costs	Superior insulation reduces heat gain/loss, cutting HVAC operating costs by 10–25% annually over the duct's lifespan (15–20 years).
Low Maintenance	No need for periodic insulation replacement (unlike glass wool, which degrades over time); the aluminum surface is easy to clean with water or mild detergent.
Eco-Friendly	Phenolic foam is free of ozone-depleting substances (ODS) like CFCs or HCFCs; aluminum is 100% recyclable, aligning with green building standards (e.g., LEED, BREEAM).
